PCM-9587 User Manual
60
B.20

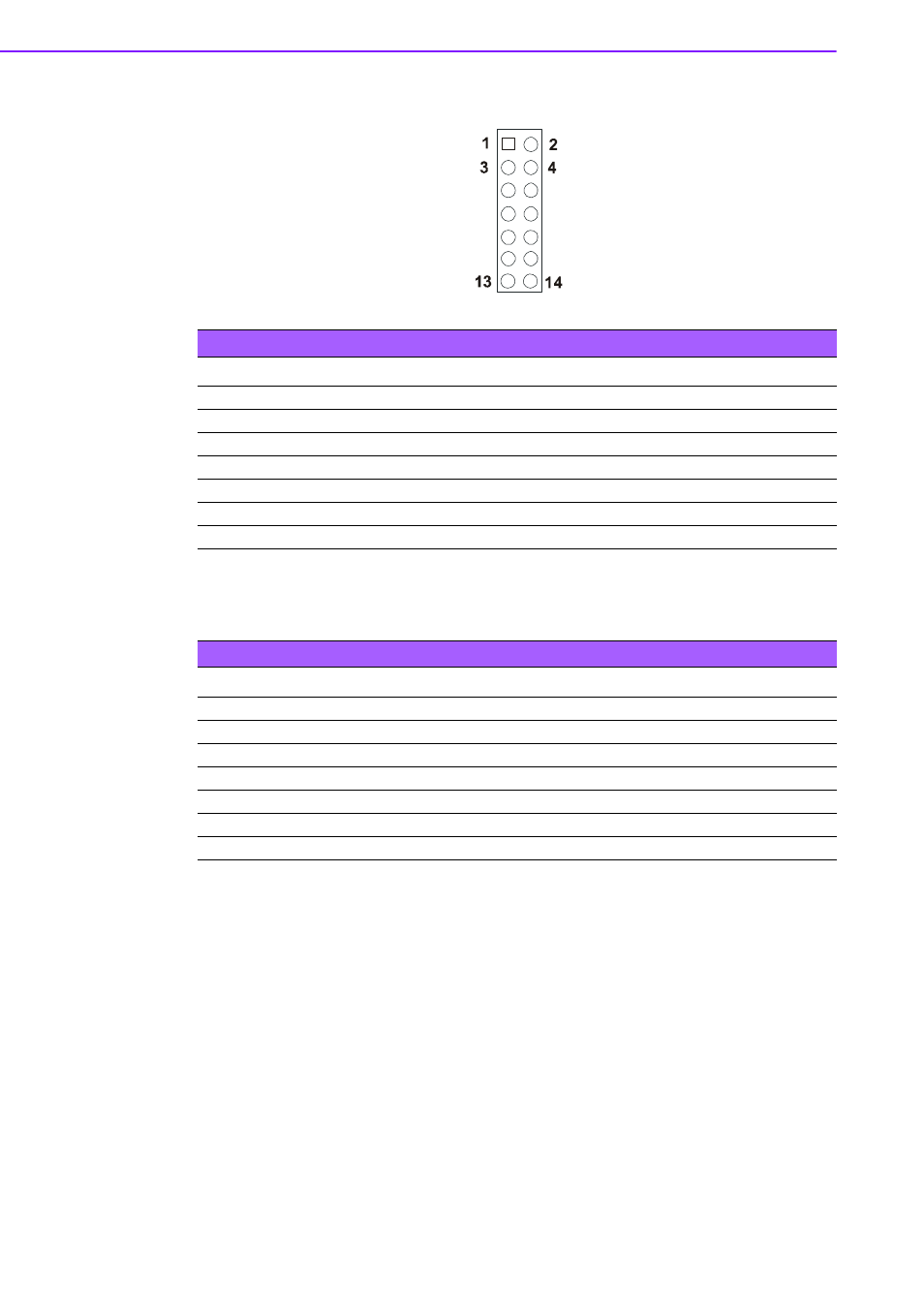

Front Panel Connector (CN22)
B.21
SATA Connector 1 (CN23)
Table B.20: Front panel Connector (CN22)
Pin
Signal
Pin
Signal
1
HDD LED+
2
HDD LED-
3
Power LED+
4
GND
5
Suspend LED
6
GND
7
LAN ACT+
8
LAN ACT-
9
LAN Link+
10
LAN Link-
11
VCC_DUAL
12
ATX Power Button
13
GND
14
Reset
Table B.21: SATA Connector 1 (CN23)
Pin
Signal
1
GND
2
TX0
3
TX0#
4
GND
5
RX0#
6
RX0
7
GND
