61
PCM-9587 User Manual
Appendix B
P
in Assignments
B.22
SATA Connector 2 (CN24)
B.23
CPU FAN Connector (CN25)
B.24
Extension SMBUS Connector (CN26)
Table B.22: SATA Connector 2 (CN24)
Pin
Signal
1
GND
2
TX1
3
TX1#
4
GND
5
RX1#
6
RX1
7
GND

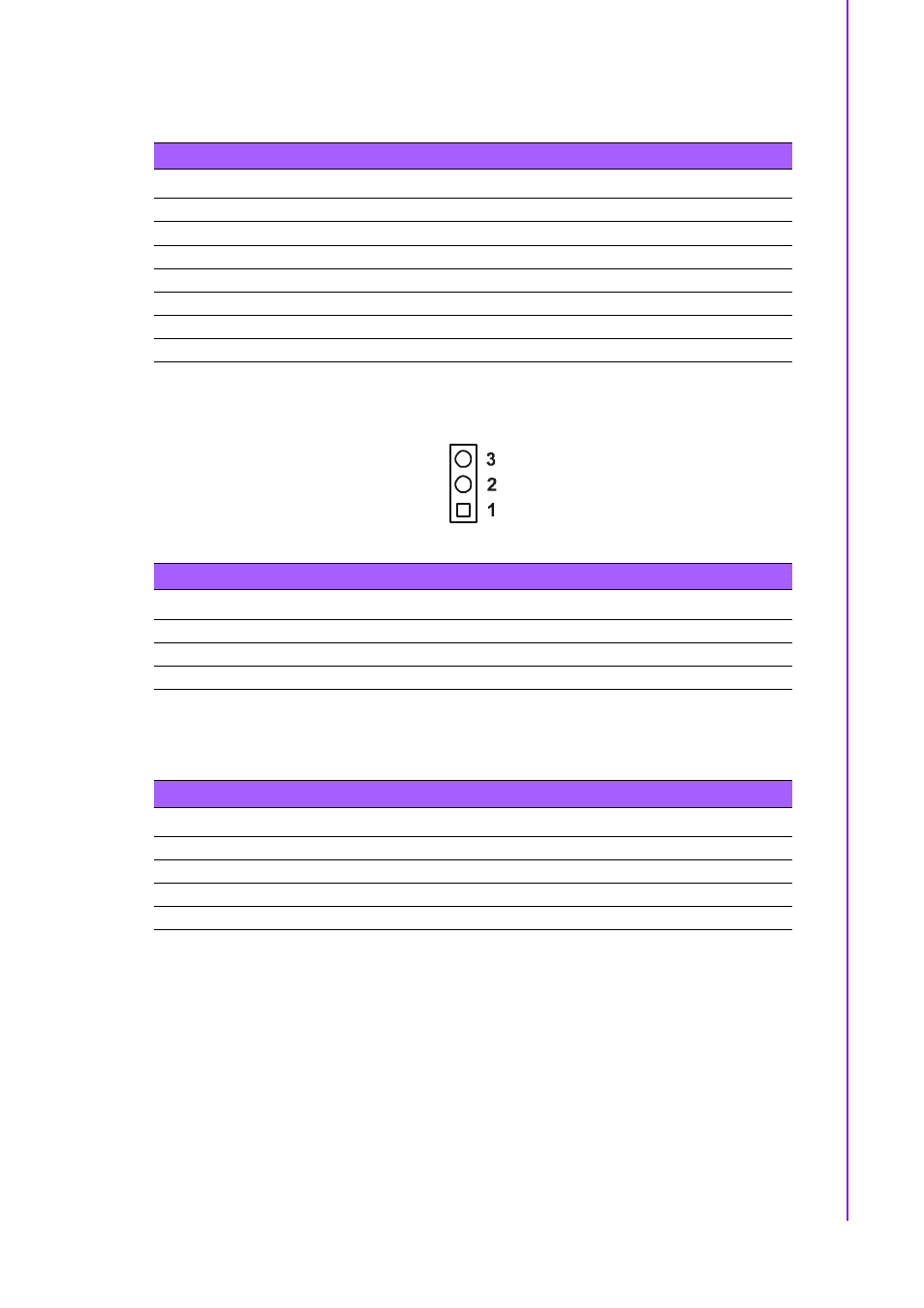

Table B.23: CPU FAN Connector (CN25)
Pin
Signal
1
GND
2
+12V
3
SPEED DETECT
Table B.24: Extension SMBUS Connector(CN26)
Pin
Signal
1
GND
2
SMBDATA
3
SMBCLK
4
3VSB
