The RS-232 Interface
51
Appendix F - The RS-232 Interface
The AXIS 2400/2401 has two 9-pin D-sub connectors, providing the physical interface for
two RS-232 ports, used for connecting:
• accessory equipment; such as stand-alone Pan/Tilt devices for remote positioning of con-
nected video cameras
• any standard modem for use in remote applications, as described on page 11
• the AXIS 2191Audio Module, as described on page 31.
As a complement to the information provided in Pan Tilt Settings, on page 26, this
appendix describes how to install a standalone Pan/Tilt device to the AXIS 2400/2401
Video Server.
Physical Connector

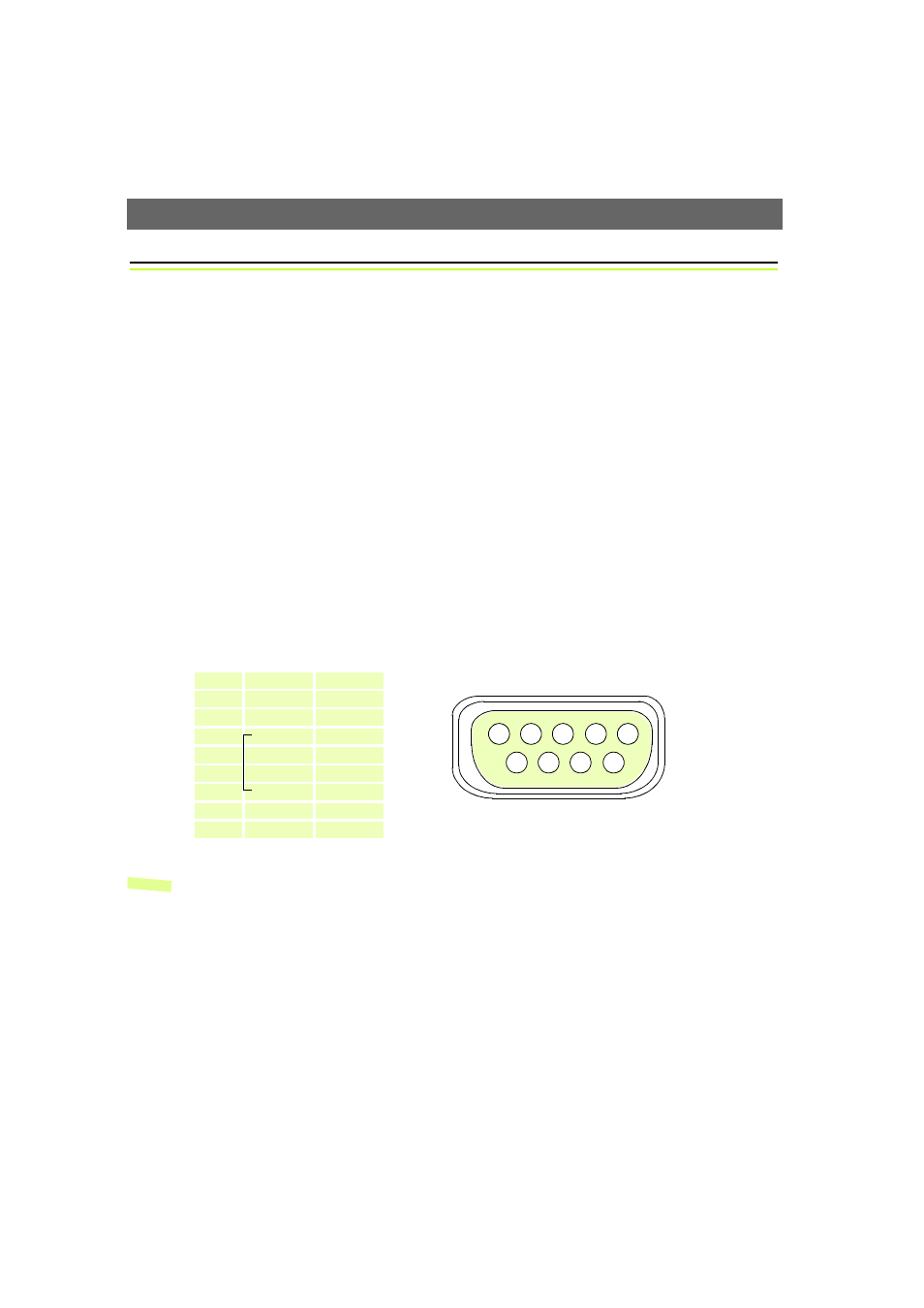

A diagram representative of both RS-232 connectors, complete with an accompanying pin
assignment table, is shown below.
Notes:
The pinout is different for each supported serial port.
Pin 4 on COM1 is connected to Pin 7 (RTS).
NC = Not connected
Pin
COM1
Function
COM2
Function
1
NC
CD
2
- RXD
- RXD
3
- TXD
- TXD
4
DTR
DTR
5
GND
GND
6
DSR
DSR
7
RTS
RTS
8
NC
CTS
9
NC
RI
5
4
3
2
1
6
7
8
9
