AXIS 2400/2401 Admin Manual The AXIS 2191 Audio Module 33

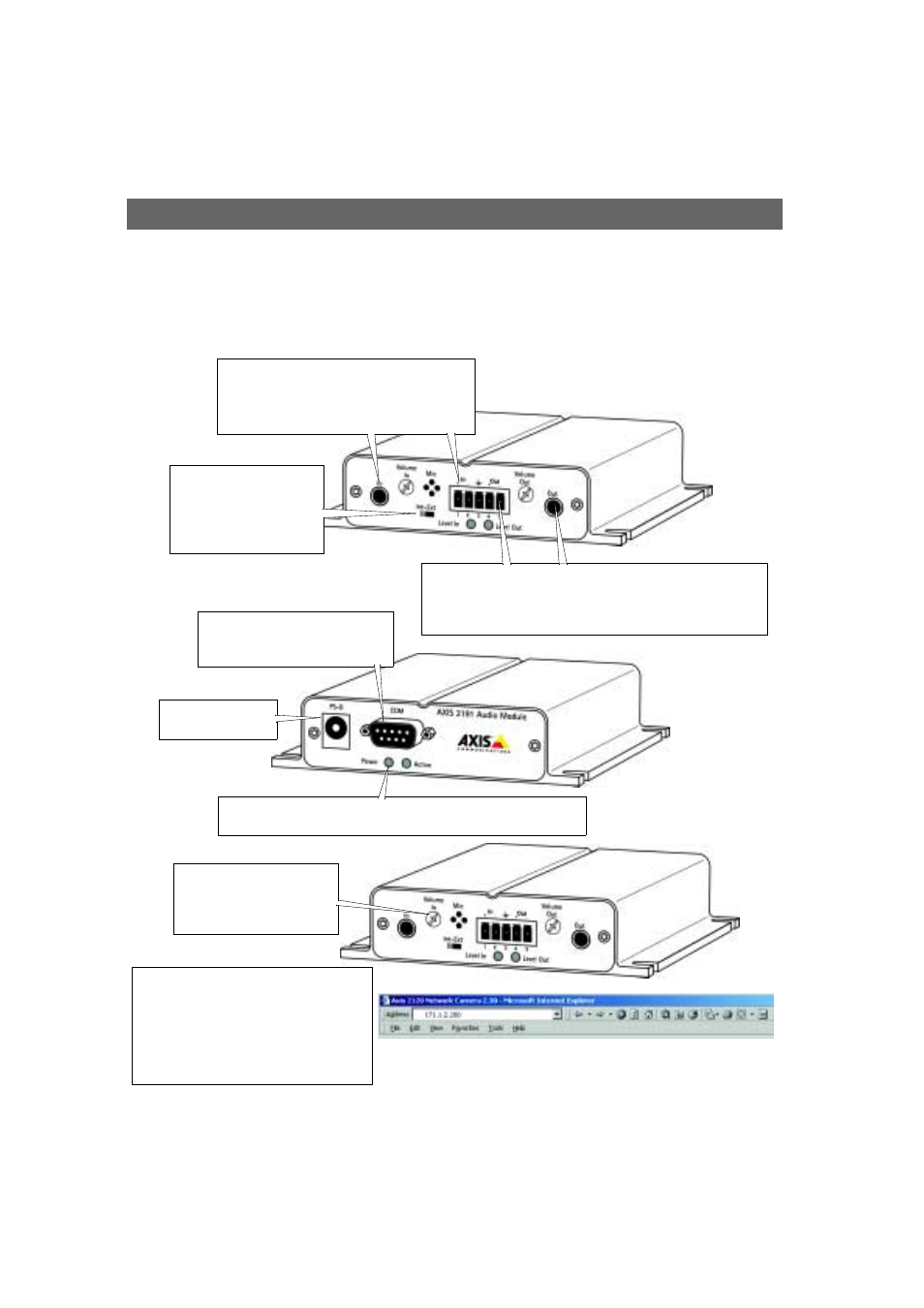

Installing the Audio Module
❶ Before installing the AXIS 2191 Audio Module, first install your video server. Refer to the
installation section of this manual. If you intend running the audio module in full-duplex mode,
check that the sound card on your computer supports this.
❻ Connect power to
the audio module.
❷ If using an external microphone, connect it to
the socket provided. To use an alternative input
device, (e.g. CD-player or radio) connect it to
Line-In on the terminal block.
❹ Connect a loudspeaker to the 3.5mm socket (amplified speakers
only), or to Out on the terminal block (speakers with no amplifica-
tion). Other devices (including headphones) are connected to the
terminal block.
❼ Check that the power indicators on both the audio module and the
video server are lit. Note that the power LED will blink during power-up.
❺ Using the supplied cable, connect
the audio module’s serial port to the
video server’s serial port.
❸ Set the selector switch to
Ext to use an external
microphone or device.
Otherwise, set to
Int to use
the internal microphone.
❽ Using a screwdriver, adjust
the Volume In control so that
the Level In LED occasionally
shows yellow, but not red.
❾ To verify the connection to the AXIS 2191,
start Internet Explorer and enter the video
server’s IP address in the location/address
field, e.g. 171.1.2.200, as shown here. Config-
ure the audio module from the server’s
administration pages, as described in the fol-
lowing section.
