© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7 70444801
UniLinc Identification
Operational Keypad
The control includes seven keypads. These functions
are available to the operator and are intended to
control and manage operation of the tumble dryer.
Refer to Figure 5 and Table 1.
TMB1276C

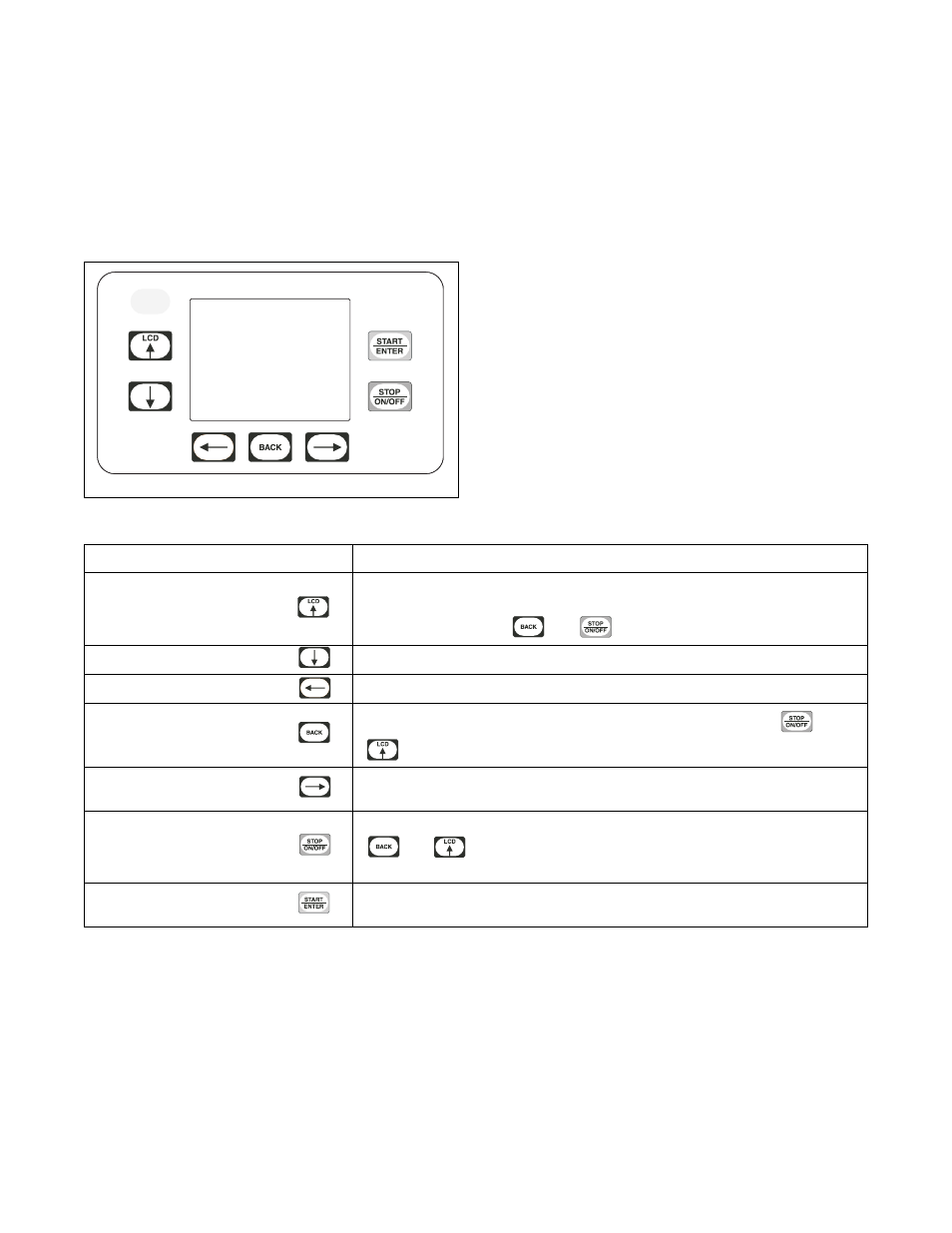

Figure 5
Keypad Description
LCD/UP ARROW
Press to move the cursor on display and to edit programming values. Also, press
while in Cycle Menu or Run Menu to change to the
Contrast Adjust/Backlight
Menu. Also, press with and to enter System Menu.
DOWN ARROW Press to move the cursor on display and edit programming values.
LEFT ARROW Press to move the cursor on display.
BACK
Press to move back to the previous display menu. Also, press with and
to enter System Menu.
RIGHT ARROW
Press to move the cursor on display. Press while running a cycle to get to Run
Diagnostic Menu.
STOP/ON/OFF
Press to stop and abort a machine cycle during Run Mode. Also press with
and to enter System Menu. When in Cycle Programming Menu,
press to turn segments and cycles on and off.
START/ENTER
Press to start or rapid advance a machine cycle during Run Mode. Also, press to
save edited programming values when used in programming menus.
Table 1
