Installing the 250-sheet Paper Feeder
Installation Space

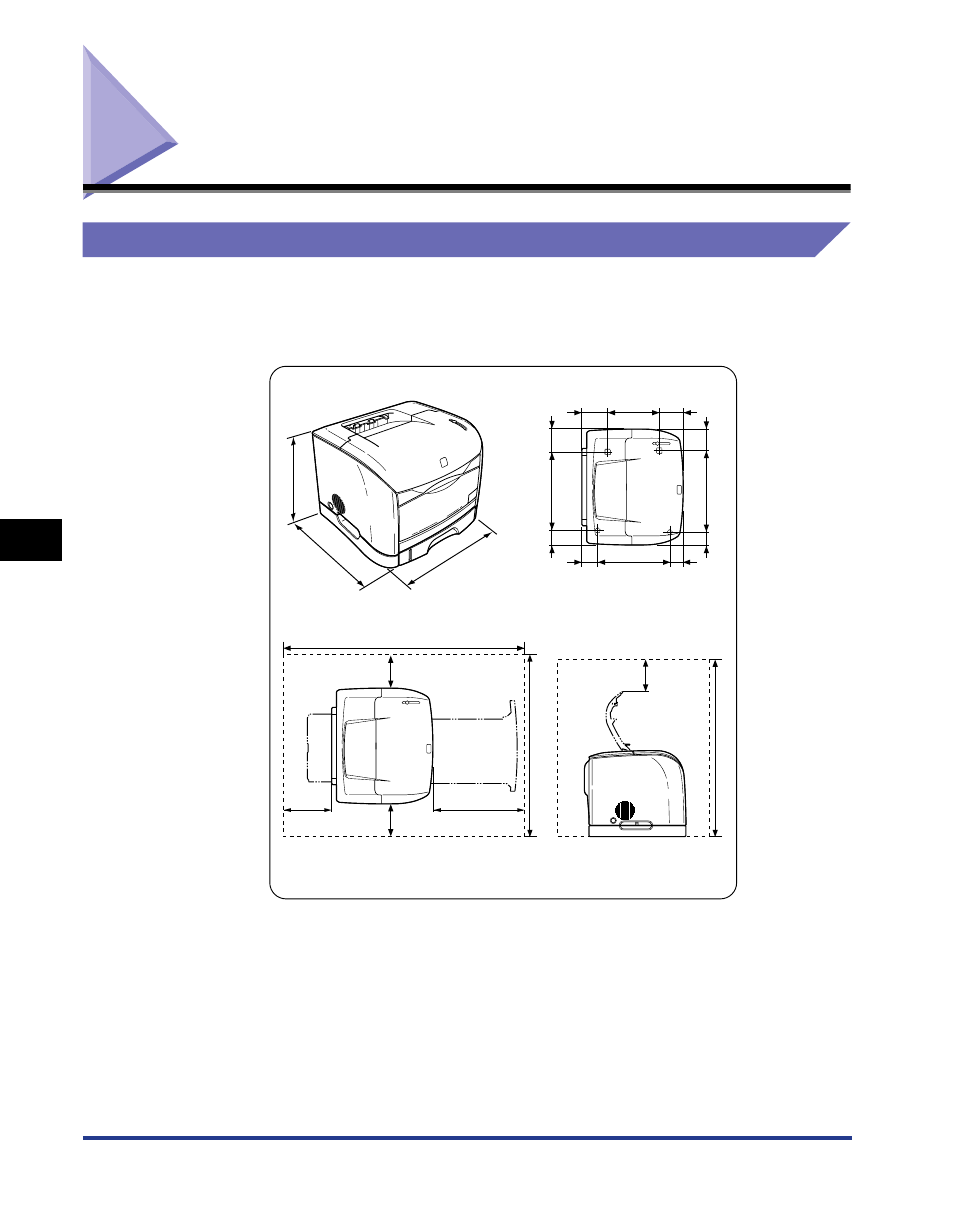

The following figures show the dimensions of each part of the printer, the
dimensions of the space required around the printer, and the positions of the feet
when the printer is fitted with the 250-sheet paper feeder.
682 758
515.5* 2 208
100
100
100
1174.5* 1
223 99 129.5
451
482
322 73 56.5
314
100
66
320.5
93.5
66
(mm)
(mm)
376
• Printer Dimensions • Feet Positions (Paper Feeder)
• Required Peripheral Space
* 1 Becomes 1232 mm if you use legal size paper.
* 2 Becomes 573 mm if you use legal size paper.
