Spektrum SPMAR6410 - Manual (Page 10)

EN
10
6. The LED on the receiver will go solid and within 5 seconds, the LED will flash 3
times quickly, indicating servo is now reversed
7. Disconnect battery from receiver
8. Turn transmitter off

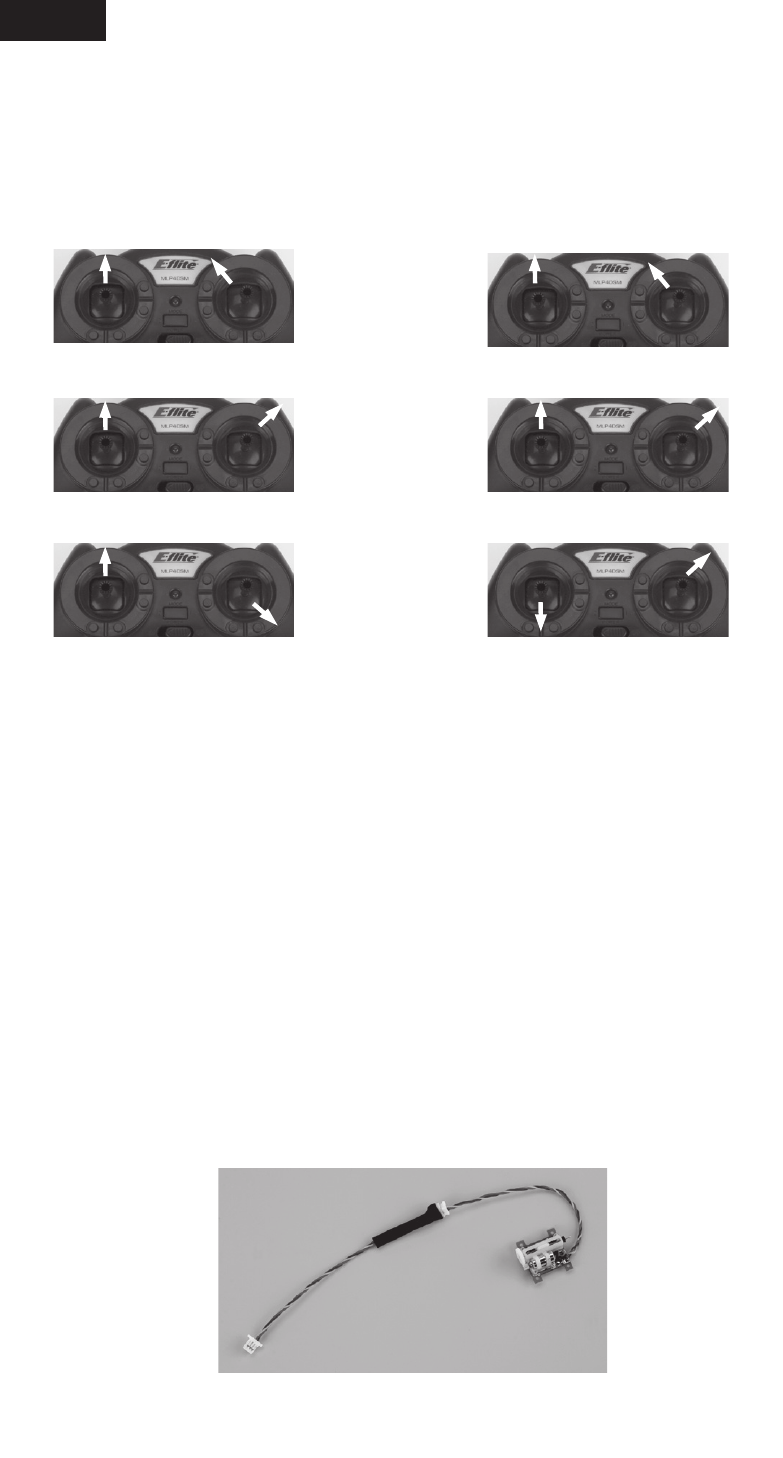

Mode 1 Mode 2
Reversing Optional Linear Servo
Reversing the servo is useful when implementing certain installations, such
as dual ailerons, flaps, etc. Spektrum offers a servo reversing lead that can be
plugged between the receiver and the optional servo.
To reverse servo using the reversing lead:
1. Connect the reversing lead into the servo
2. Connect servo into CH2 or Reversed CH2/CH6 ports
3. Power on the receiver using a charged battery
4. Once receiver connects, the servo is now reversed
5. Disconnect battery from receiver
6. Remove servo reversing lead and store it in a safe place for future use
7. Reinstall servo lead into servo port
CH2
1. Full THRO
2. Down ELEV
3. Left AILE
CH3
1. Full THRO
2. Down ELEV
3. Right AILE
CH4
1. Full THRO
2. Up ELEV
3. Right AILE
THRO/RUDD ELEV/AILE
THRO/RUDD ELEV/AILE
ELEV/RUDD THRO/AILE
ELEV/RUDD THRO/AILE
THRO/RUDD ELEV/AILE ELEV/RUDD THRO/AILE
