Spektrum SPM20320 DX3.0 - Manual (Page 7)

12 13

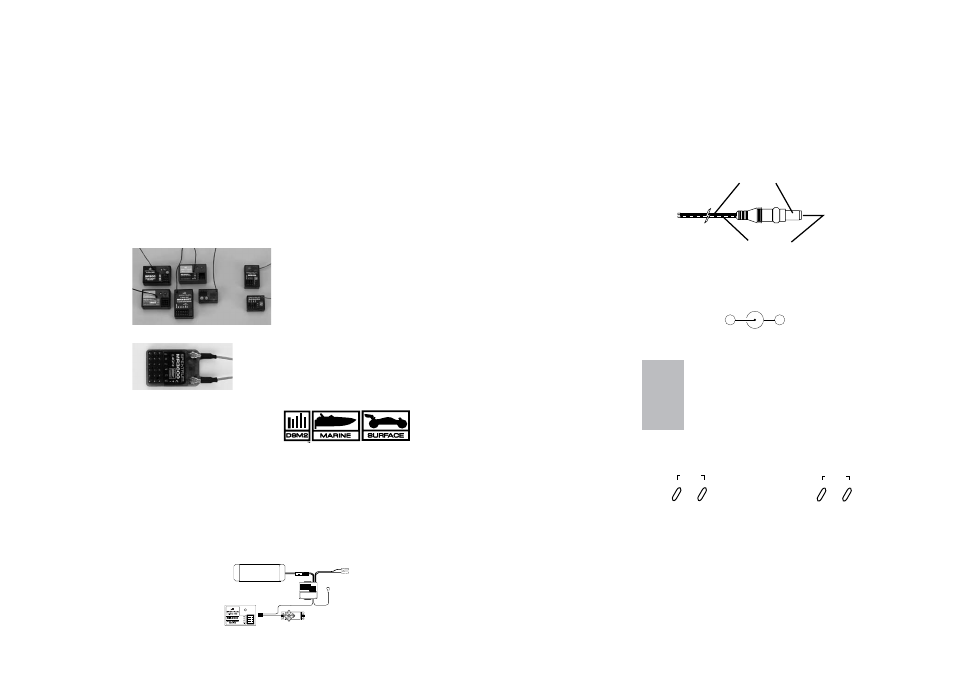

Located on the left-hand side of the transmitter is the charging jack, which accepts only
JR ® or Spektrum ™ style wall chargers. Please do not attempt to use any other brand of wall
charger as it may be the reverse polarity and can cause damage to your system. Only use the
JR or Spektrum type wall charger when the DX3.0 is equipped with NiMH batteries.
Warning: Charge only rechargeable batteries. Non-rechargeable batteries may burst
causing injury to persons and/or damage to property.
Charger Pigtail For Transmitter
Spektrum Transmitter Charge Jack Polarity
Key Input and
Display
Key Use
SCROLL Used to move up through the available functions
CHANNEL Used to select the desired channel
INCREASE Used to increase the value of the selected function
DECREASE Used to decrease the value of the selected function
To enter the System Mode press the SCROLL andCHANNEL keys
simultaneously and hold while turning on the transmitter.
To enter the Function Mode, press the
SCROLL key while the transmitter is on. Press the INCREASE and DECREASE
keys simultaneously to clear the screen or
return to factory preset settings.
Charging Jack
Black To Positive
Black With White Stripe To Negative
n
SCROLL
ENtER
ChaNNEL INCREaSE
CLEaR
DECREaSE
The DX3.0 features DSM technology and is compatible with Spektrum DSM and DSM2
surface receivers and the marine receiver.
ComPATiBlE SPEkTRum RECEivERS
The DX3.0 is compatible with the following receivers.
Note: The DX3.0 operates in 11ms frame rate when in fast mode and 16.5ms frame
rate when in normal mode. See page 17 for more information about frame rates.
DSM: SR300 - 3-channel Sport - SPMSR300
SR3000 - 3-channel Standard - SPM1200
SR3001 - 3-channel Pro - SPM1205
SR3300T - 3-channel with built-in telemetry - SPMSR3300T
SR3500 - 3-channel Micro Race - SPM1210
Note: The SR3000HRS (SPM1202) receiver is designed to be used with
Spektrum’s Futaba HRS compatible module system only and is not compatible
with the DX3.0.
DSM2: SR3100 - 3-channel Pro - SPMSR3100
SR3520 - 3-channel Micro Pro - SPMSR3520
Marine: MR3000 - 3-channel Marine - SPMMR3000
Please note that DSM2 and marine compatible transmitters can be identified by the following
logo located on the back of the transmitter:
Note: When using a separate NiMH receiver as a power source, the operating voltage
range is 4.8–6.0V (4–5 cells) under load.
Attention: Make sure the male and female connectors have the correct polarity (+/–)
before connecting. Be sure to orient the servo plug correctly for proper insertion.
Most electronic speed controllers are set up for BEC (Battery Elimination Circuitry) operation
and plug directly into your receiver. See Figure A for a typical setup and check your speed
controller’s manual for correct installation.
7.2V Battery To Motor
Electronic
Speed Controller
Receiver
Servo
Figure A – Connections to BEC and receiver with electronic speed controller. NiMH battery
speed controller and servos are not included in the radio set.
Receiver
Compatibility
Receiver
Connections
and
Installation
