Servo Reversing
1. With the transmitter power switch on, press the
SCROLL key to enter the Function mode.
2. Press the SCROLL key until REV.NORM appears on the screen.
The “ST” indicates the steering servo reversing screen.
3. Press the INCREASE or DECREASE key to move the cursor
to the desired servo direction (REV.NORM).
4. Press the CHANNEL key once to access the throttle servo reversing screen.
5. To select the direction of the throttle servo, repeat Step 3 above.
6. Repeat Steps 2 and 3 to adjust Auxiliary Channel 3 if needed.
Endpoint (Travel) Adjustment
L/F = Left/Forward
R/B = Right/Brake
1. From the Servo Reverse function, press the SCROLL key once to access
the Endpoint (Travel) Adjustment function (the EPA screen with “ST” will appear).
Steering Adjustment
2. Rotate the steering wheel in the desired direction (left or right) to be adjusted.
3. Press the INCREASE or DECREASE key to select the desired travel value.
Throttle Adjustment
4. Press the CHANNEL key once. TH will appear on the screen.
5. Pull the trigger for forward or push the trigger for brake adjustment.
6. Press the INCREASE or DECREASE key to select the desired travel value.
Auxiliary Channel 3 Adjustment
Note: AUX will need to be programmed for either Grip Lever A or Grip Button C.
See page 17.
If a third channel is not required, proceed to Step 10.
7. Press the CHANNEL key once. AUX will appear on the screen.
8. Toggle the appropriate lever/button to select the desired endpoint.
9. Press the INCREASE or DECREASE key to select the desired travel value.
10. Press the SCROLL and CHANNEL keys at the same time to exit the function mode.
DX3.0 Quick
Start Setup
Servo Trim Adjustment
Steering
1. With the transmitter power switch on, move the digital steering trim lever in the desired
position to be adjusted. The steering trim value screen will appear automatically.
Throttle
2. With the transmitter power switch on, move the digital throttle trim lever in the desired
position to be adjusted. The throttle trim value screen will appear automatically.

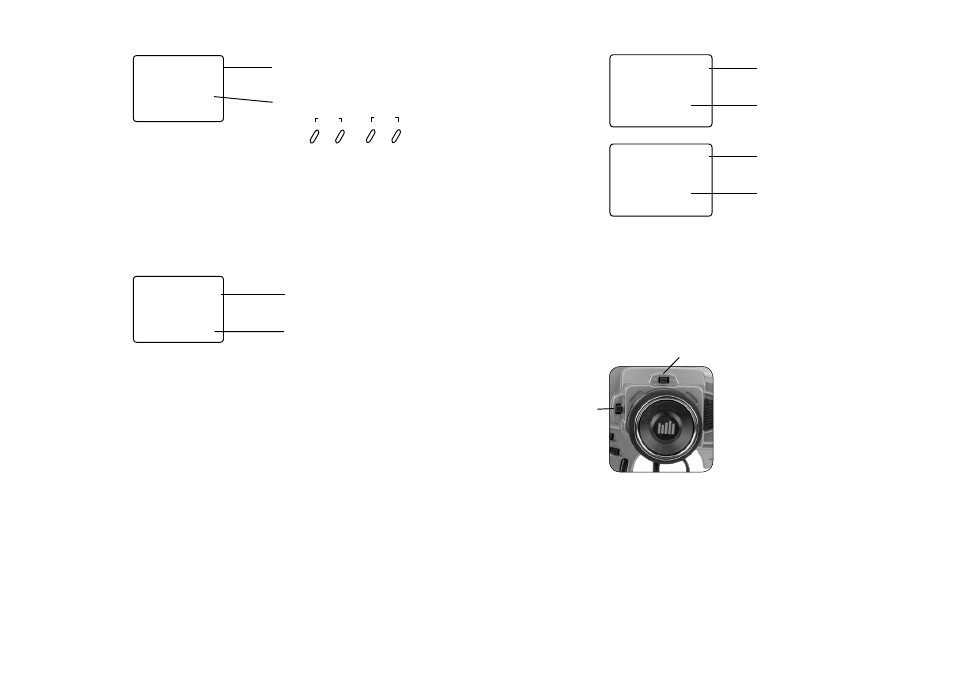

Indicates Current Adjustment Position
ST = Steering
TH = Throttle
AUX = Auxiliary Channel 3 (optional)
Indicates Current Value
st
I00
E P A
–
R/B
(continued)
SCROLL
ENtER
ChaNNEL INCREaSE
CLEaR
DECREaSE
st
REV • NORM –
Indicates Current Channel
ST = Steering
TH = Throttle
AUX = Auxiliary Channel 3 (optional)
Indicates Current Servo Direction
–
DX3.0 Quick
Start Setup
Direct Trim
Access
STC
0
THC
0
Indicates Steering
Trim Function
Indicates Current Value
Indicates Throttle
Trim Function
Indicates Current Value
TRIM
TRIM
–
(continued)
Steering Trim
Throttle Trim
