AT-8000 Series Fast Ethernet Switches Installation Guide

SC Type Connector

This connector is used on the AT-8016F/SC and AT-8026FC Fast Ethernet
switches. It is also used with optional GBIC modules and the AT-A45/SC
expansion module. Figure 43 illustrates an SC connector.

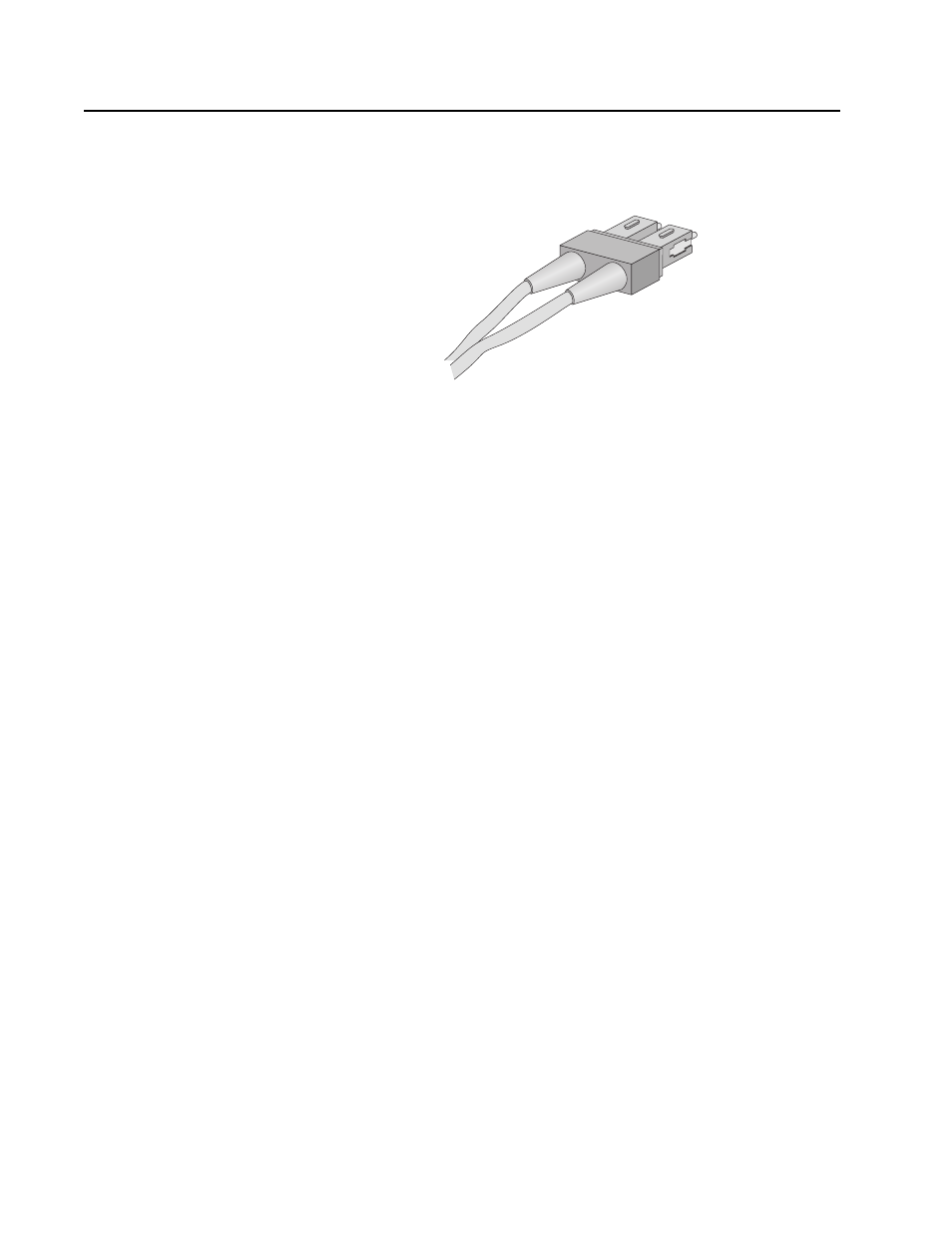

Figure 43 SC Connector
