AT-8000 Series Fast Ethernet Switches Installation Guide
15
AT-8024 The AT-8024 is a 24-port 10/100Base-TX managed Fast Ethernet switch.
The 10/100Base-TX twisted pair ports feature RJ-45 connectors and a
maximum operating distance of 100 meters (328 feet). Refer to
10/
100Base-TX Twisted Pair Ports on page 23 for additional information on
the ports.

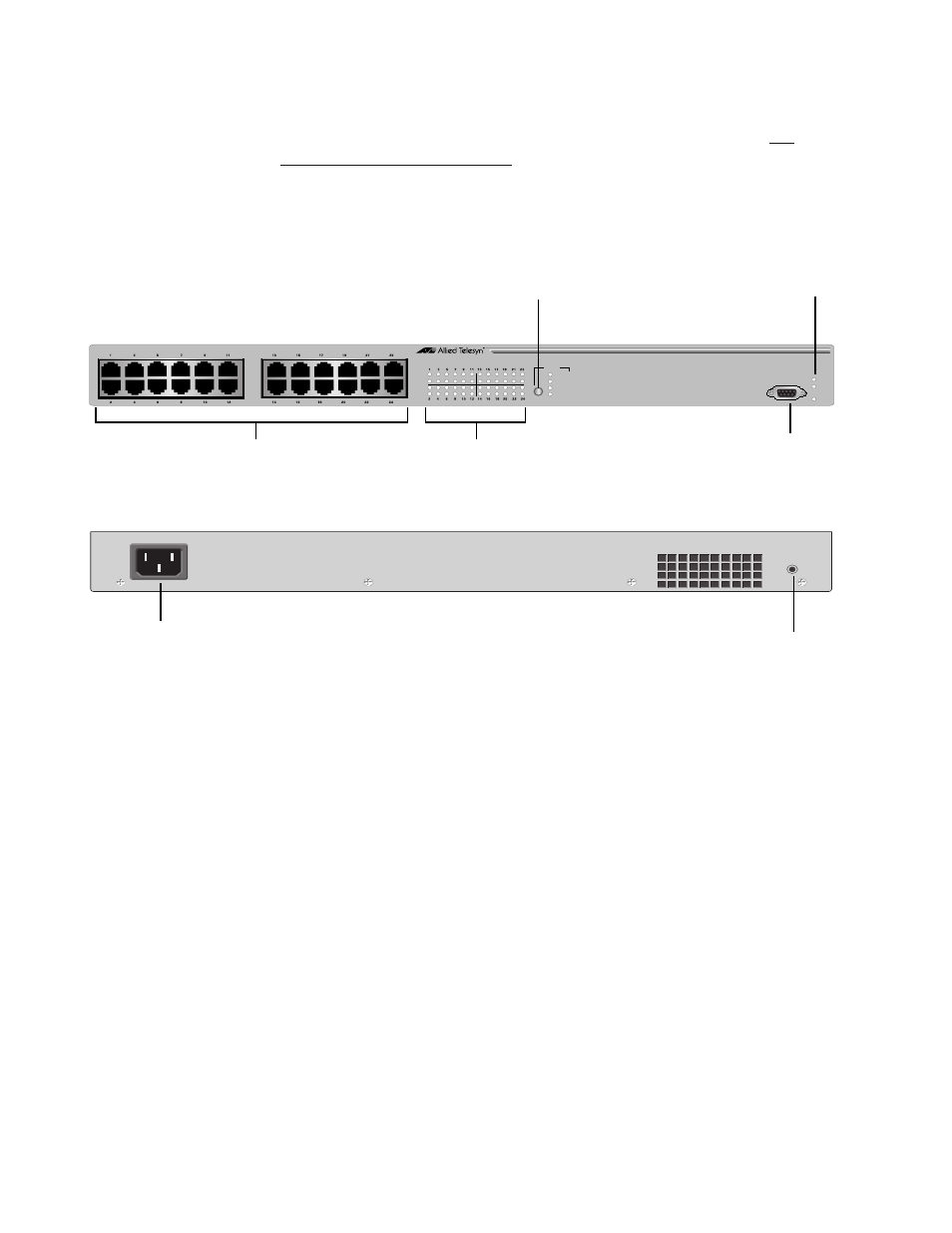

Figure 4 illustrates the front and back panels of the AT-8024 switch.
Figure 4 AT-8024 Front and Back Panels
Link
Mode
Link
Mode
100
FULL
ACT
MODE
COL
FAULT
MASTER
PWR
AT-8024
10Base-T / 100Base-TX Fast Ethernet Switch RS-232 TERMINAL PORT
System
RS-232 10/100Base-TX Ports Port LEDs
LED Mode
Terminal Port
LEDs
Select Button
Reset AC Power
Connector Button
RESET
