Overview
20
AT-8088/xx The AT-8088/MT and AT-8088/SC switches have eight 10/100Base-TX
ports and eight 100Base-FX ports with two module expansion slots. The
expansion slots are compatible with 100Base and 1000Base fiber optic
and twisted pair port expansion modules and the AT-STACKM stacking
module. The 100Base-FX fiber optic ports feature MT-RJ or SC
connectors with a maximum operating distance of 2 kilometers (1.24
miles), depending on the duplex mode. The 10/100Base-TX twisted pair
ports feature RJ-45 connectors with a maximum operating distance of
100 meters (328 feet). Refer to
100Base-FX Fiber Optic Ports on page 22,
10/100Base-TX Twisted Pair Ports on page 23, and Gigabit Interface
Converter (GBIC) Expansion Slots on page 27 for more information.

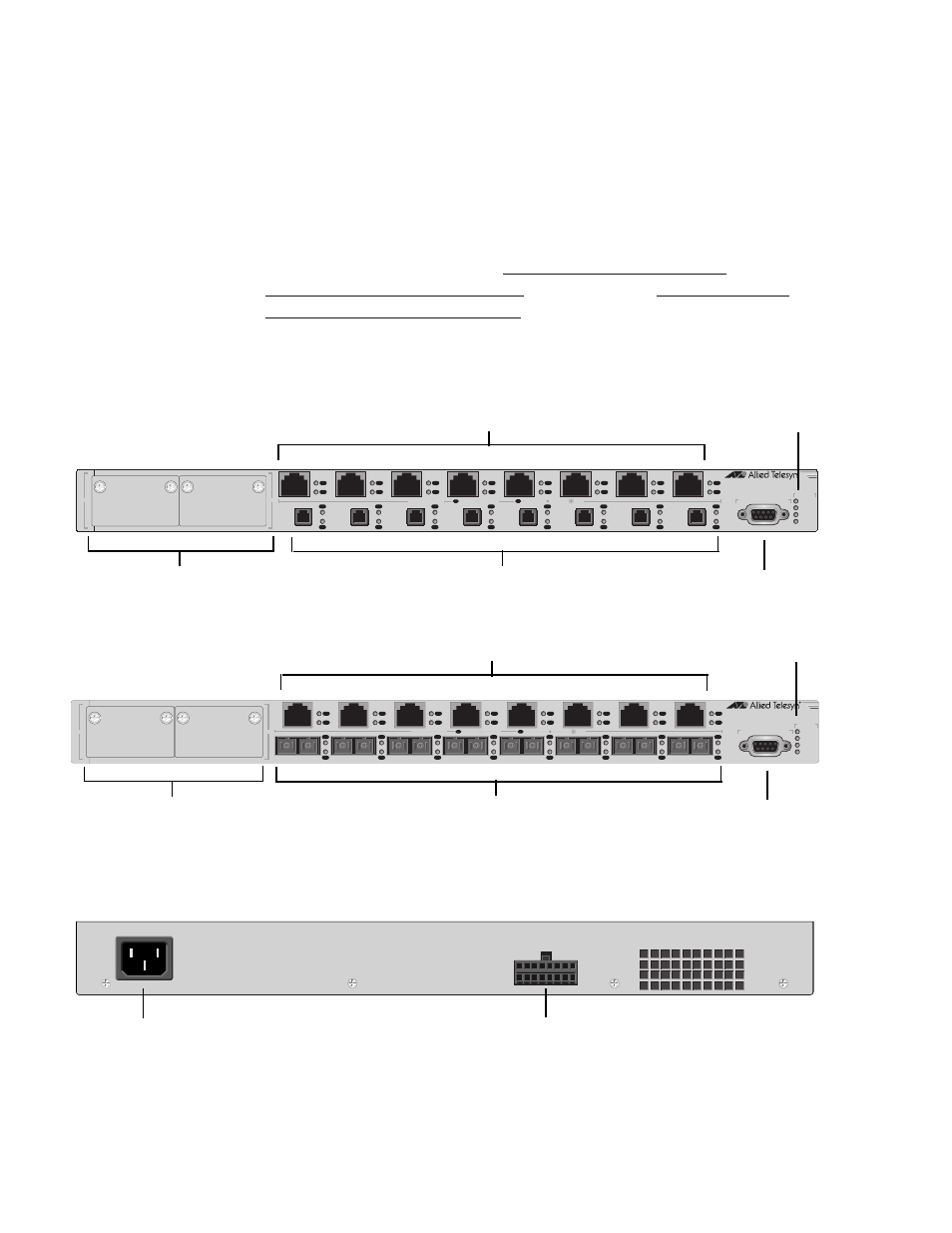

Figure 9 and Figure 10 illustrate the front and back panels of the
AT-8088/xx switches.
Figure 9 AT-8088/xx Front Panels
Figure 10 AT-8088/xx (MT or SC) Back Panel
AT-8088/MT
8 Port 10Base-T/ 100Base-TX
8 Port 100Base-FX Fast Ethernet Switch
RS-232 TERMINAL PORT
STATUS
FAULT
RPS
MASTER
PWR
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
LINK / ACTIVITY HALF DUP/ COL FULL DUP L /A D/C PORT ACTIVITY 18 17
RS-232
Terminal Port
System
LEDs
100Base-FX Ports
10/100Base-TX Ports
Module Expansion Slots
AT-8088/MT
18 17
AT-8088/SC
8 Port 10Base-T/ 100Base-TX
8 Port 100Base-FX Fast Ethernet Switch
RS-232 TERMINAL PORT
STATUS
FAULT
RPS
MASTER
PWR
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
16 TX RX 15 TX RX 14 TX RX 13 TX RX 12 TX RX 11 TX RX 10 TX RX 9 TX RX
1 2 3 4 5 6 7 8
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
LINK / ACTIVITY HALF DUP/ COL FULL DUP L /A D/C PORT ACTIVITY
RS-232
Terminal Port
System
LEDs
100Base-FX Ports
10/100Base-TX Ports
Module Expansion Slots
AT-8088/SC
AC Power
Connector
RPS
Connector
