AT-8000 Series Fast Ethernet Switches Installation Guide
87
RPS 16-pin Molex Connector Port Pinouts

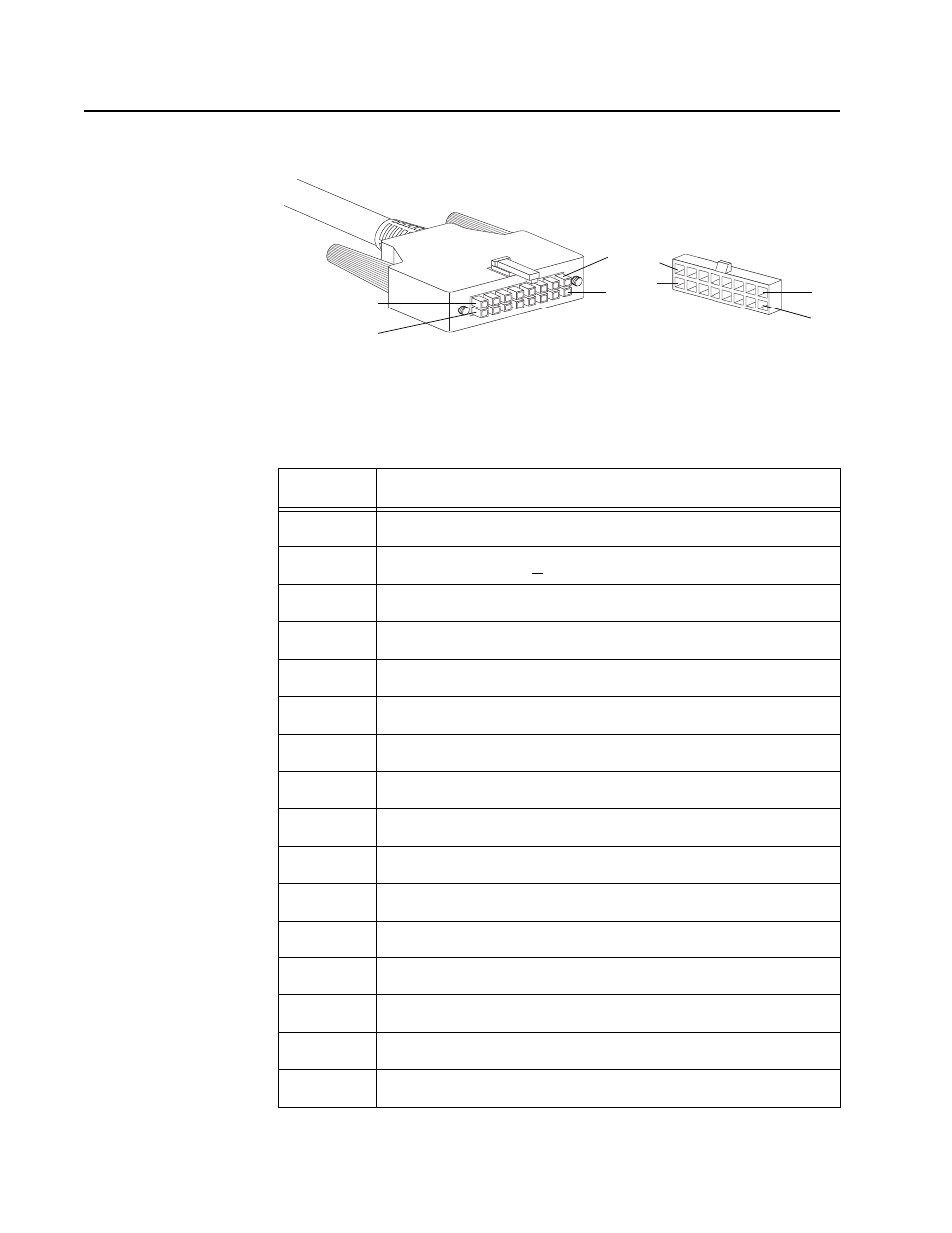

Figure 41 illustrates the pin layout to the 16-pin molex connector and
RPS port.
Figure 41 RPS 16-pin Molex Connector Pin Layout
Table 13 lists the 16-pin RPS connector pins and definitions.
Table 13 Pin Definitions of the 16-pin RPS Connector
Pin Definition
1 +12V DC
2 Remote Sense (RS) +5V DC
3 RS Ground
4 RS +3.3V DC
5 Redundant Power Supply (RPS) present
6 Ground (+3.3V DC Return)
7 Ground (+5V DC Return)
8 +5V DC
9 Ground (+12V DC Return)
10 +3.3V DC
11 Ground (+3.3 DC Return)
12 +3.3V DC
13 Ground (+3.3V DC Return)
14 +3.3V DC
15 +5V DC
16 Ground (+5V DC Return)
16
8
9
1
9
1
16
8
