AT-MCF106xx and AT-MCF112xx Installation Guide

17

Installing the Multichannel Media Converter in a Rack

To install the unit in a 19-inch rack, perform the following steps:

1. Remove all equipment from the shipping package and store the package in

a safe place.

Caution
Do not remove the dust covers from the fiber optic ports on the
multichannel media converter until you are ready to connect the cables.
Dust contamination can adversely impact the operation of the fiber optic
ports.

2. Select a level, secure surface to prepare the media converter.

3. If you purchased an optional redundant power supply for the media

converter, install the redundant power supply by following the directions
included with the unit.

Note
Do not remove the panel covering the expansion slot for the redundant
power supply unless you intend to install the unit.

4. Place the mounting bracket over the mounting holes on one side of the

unit.

5. Insert the three screws provided with the unit and tighten with a suitable

screwdriver, as shown in Figure 8.

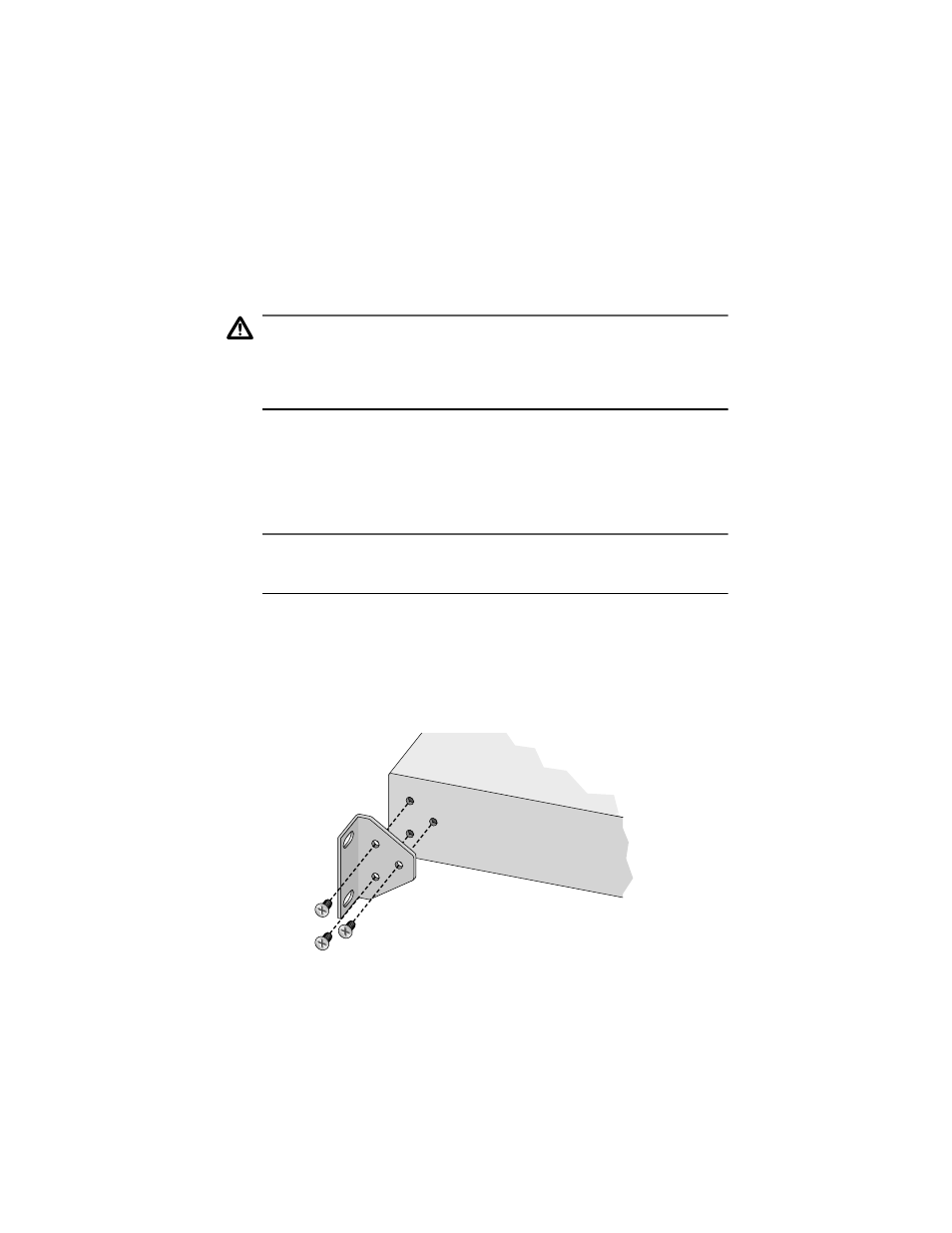

Figure 8 Installing the Mounting Bracket
