Features and Components
The media converter has the following features:
❑ One 100Base-FX fiber optic port
❑ One 100Base-TX twisted pair port
❑ MDI/MDI-X button
❑ LEDs for unit and port status
❑ Link Test feature
❑
MissingLink

feature
❑
External AC/DC Power Adapter

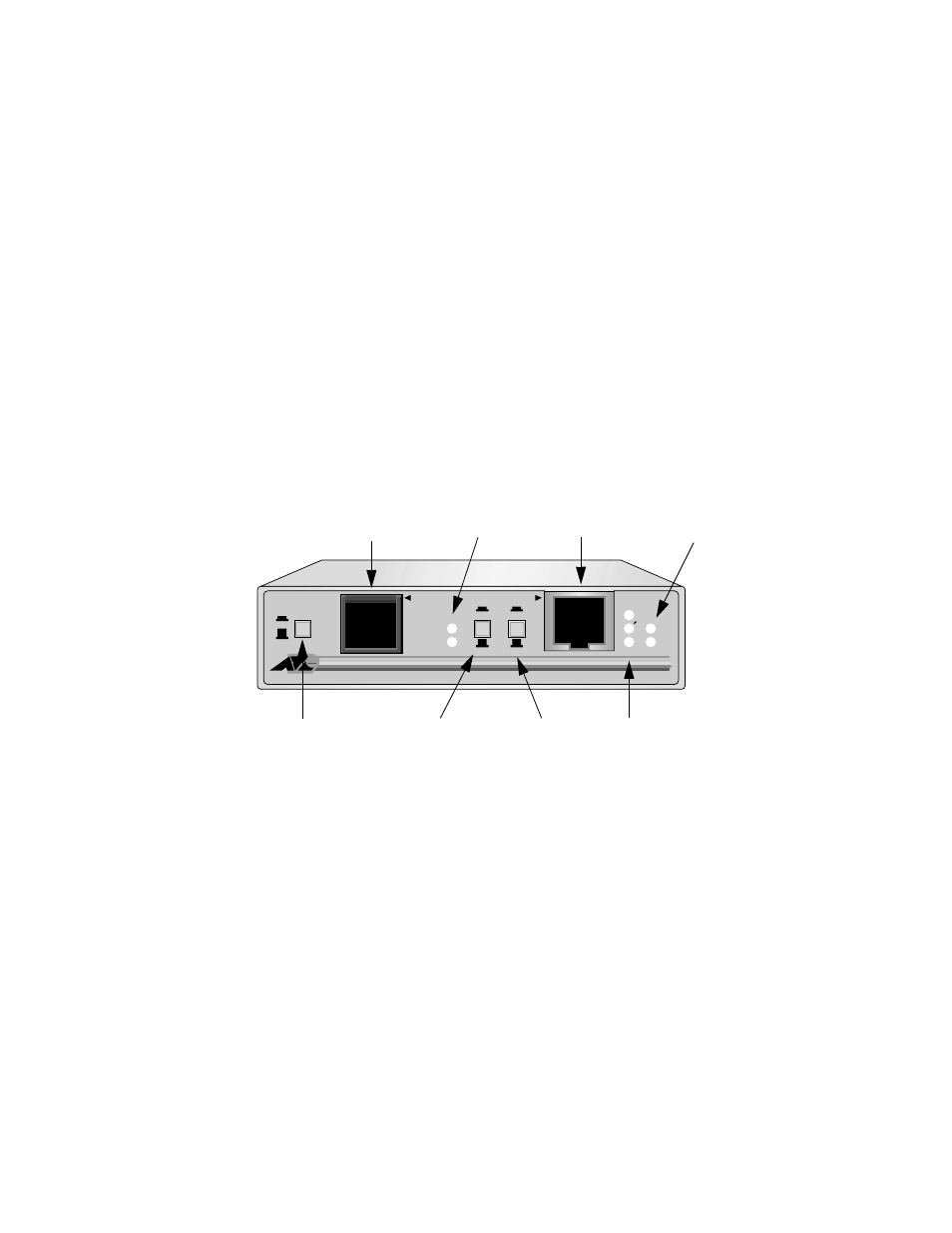

Figure 2 illustrates the front panel of the unit.
Figure 2 Front Panel (Model AT-MC301)
LK
3 100Base-FX
LNK
ACT A/N OFF MDI-X
A/N ON MDI
100Base-TX
FDX
LNK
ACT M/L ON
PWR
MC301 FAST ETHERNET MEDIA CONVERTER
M/L ON
LNK TST
100Base-FX 100Base-TX
MissingLink/ Auto-negotiation MDI/MDI-X
System
Fiber Optic
Twisted Pair
Link Test Switch Switch Switch Port LEDs
Fiber Optic Port Port LEDs Twisted Pair Port
LEDs
