AT-FS708 and AT-FS708E Installation Guide
3
Physical Description
The physical description for the switches includes:
❑
Connectors
❑
Media-Dependent Interface (MDI), Port 8
❑ LEDs
❑
Power supply
Connectors
Table 2 lists and defines the type of connectors available and their function.
Front Panel LEDs
Figure 3 shows the front panel LEDs; Table 3 describes the LED status.

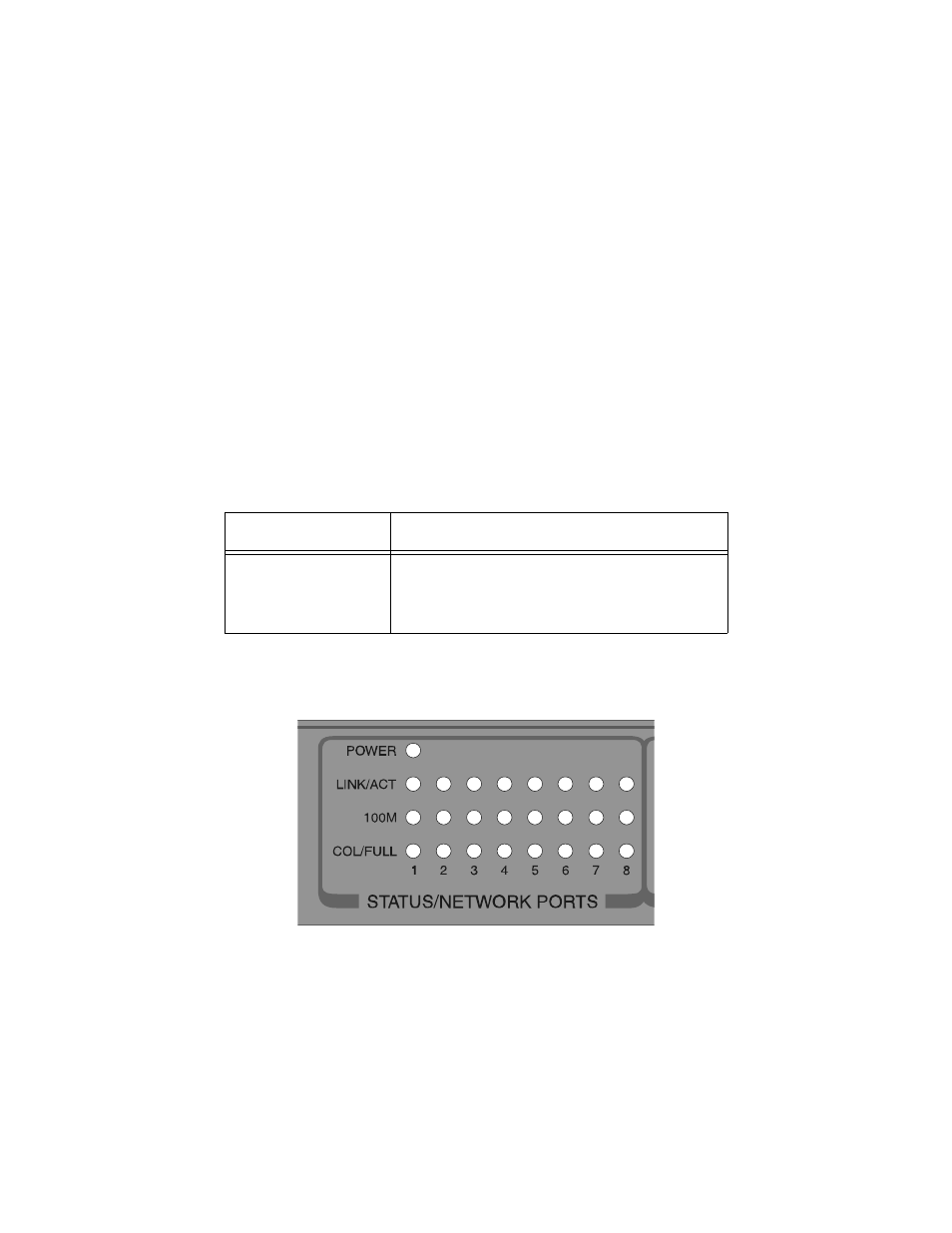

Figure 3 A Close Up of the Front Panel LEDs
Table 2 Connector Types on Switches
Connector Type Function
Ports 1 through 8
10Base-T/100Base-TX
RJ-45 connectors
Connecting to a high performance workstation, server, or hub
