Verifying Package Contents
Your package contents should include the following:
❑ Fast Ethernet 100Base-TX 4-port hub
❑ Power adapter (AC/DC, +12 VDC, 800mA)
❑ DB-15 proprietary cable
❑ Two stackable latches with four panhead screws
❑ Rubber feet for Base of unit
❑ This installation guide
If any of these items are missing, please contact your sales representative.

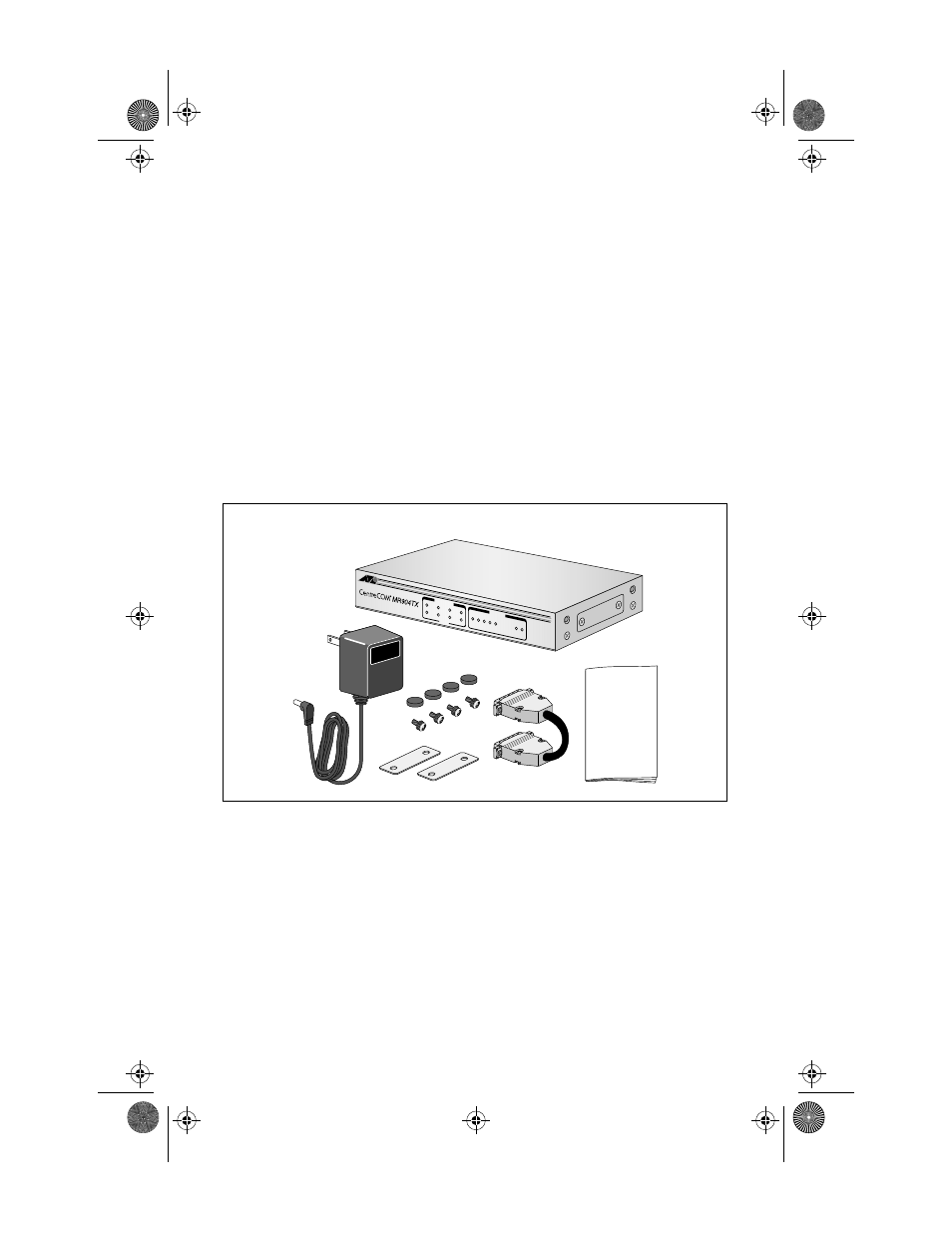

Figure 1: Package Contents
100BASE-TX IEEE 802.3u 4 PORT ST
ACKABLE HUB
LINK / ACTIVITY
ERROR
HUB ST ATUS
1 2 3 4
1 8 16 32 64
Utilization (%)
COL PWR
