Sc connector – Allied Telesis AT-GS924GB User Manual
Page 48
Technical Specifications
36
Table 5 lists the RJ-45 connector pins and their signals when a
1000Base-T port is operating at 1000 Mbps.
SC Connector
The AT-GS924GB Gigabit Ethernet switch uses an SE connector. The SC
connector (shown in Figure 16) is used to connect optional GBIC
modules.

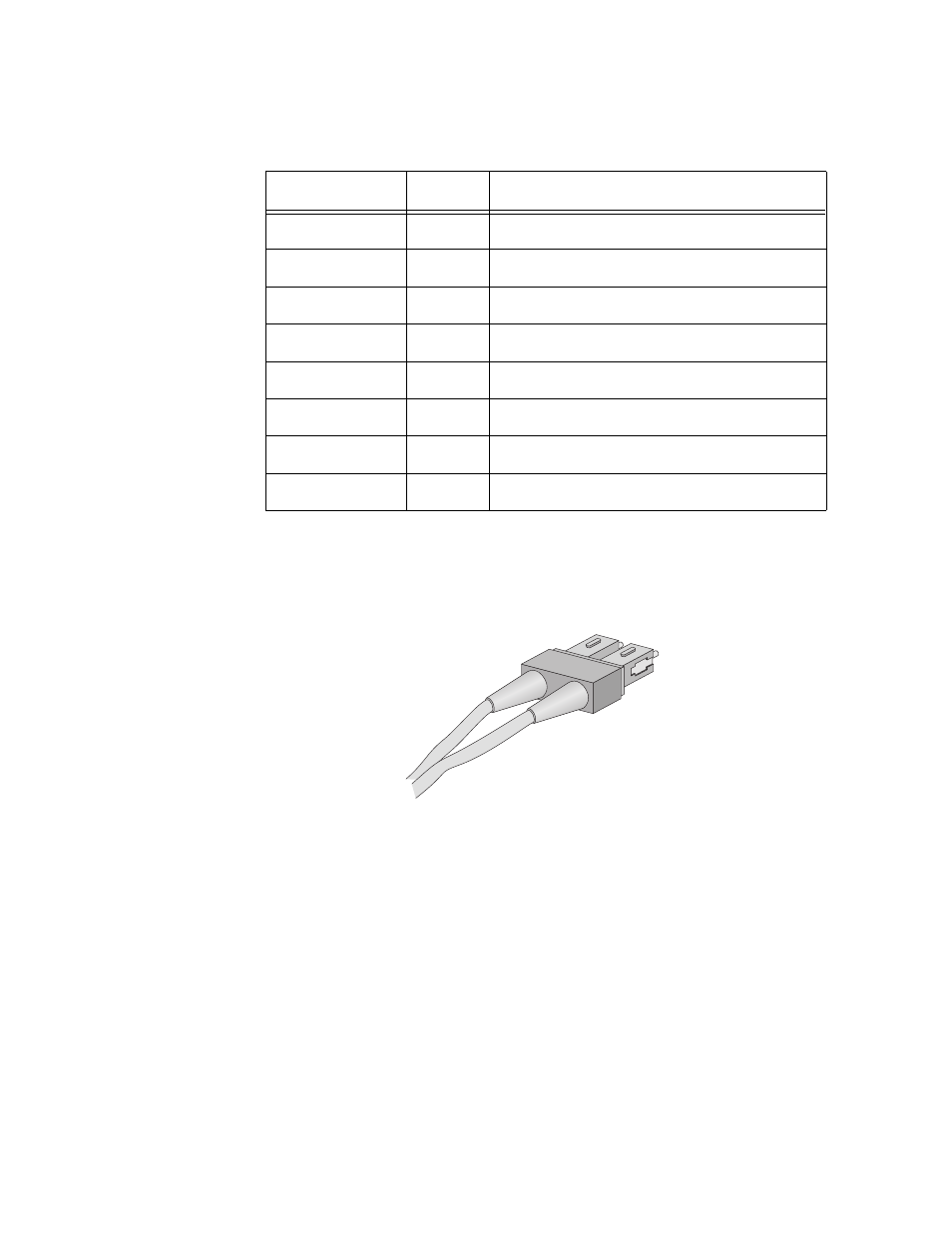

Figure 16 SC Connector
Table 5 RJ-45 1000Base-T Connector Pinouts
1
1. Bi-directional data on each pair.
Pin
Pair
Signal
1
1
TX and RX+
2
1
TX and RX-
3
2
TX and RX+
4
3
TX and RX+
5
3
TX and RX-
6
2
TX and RX-
7
4
TX and RX+
8
4
TX and RX-
