Page 24

Allied Telesyn

AT-VIEW PLUS

VLAN MANAGER

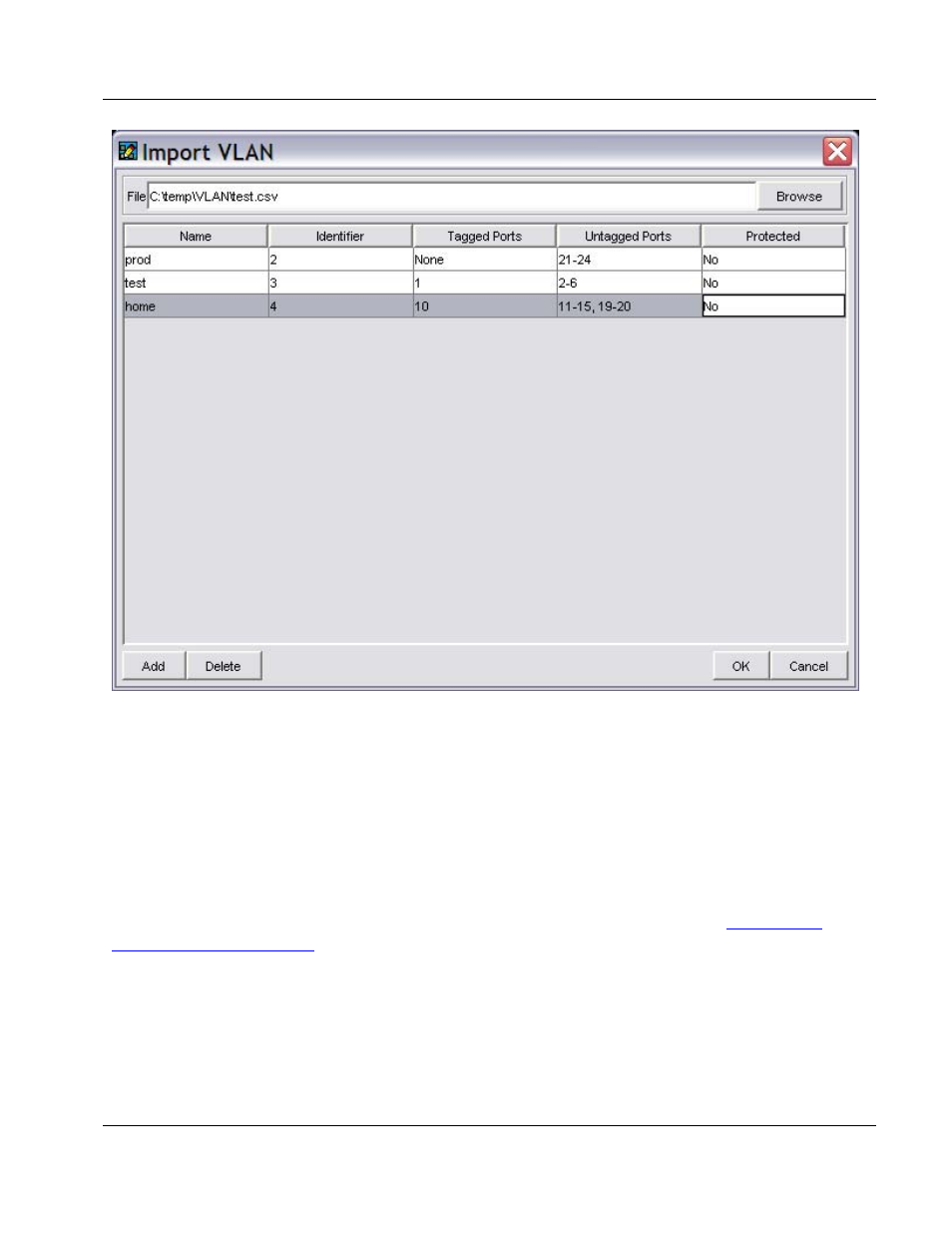

Import VLAN dialog

5.2.5.1 File Field and Browse Button

You may specify a VLAN Configuration File (full path) in the File field. Alternatively, you can use
the Browse button to locate the VLAN Configuration File to use. Once a valid VLAN Configuration
File has been specified, the VLAN Definitions Table will be populated with the VLAN definitions
contained in the file. You may then manually edit the definitions within the table.

Note

- Be sure to specify a VLAN Configuration File that contains VLAN entries suitable for the

currently opened device. Otherwise, the Import VLAN function will fail. Refer to

Section 4.3 -

VLAN Configuration Files

for more details.

5.2.5.2 Add Button

Clicking the Add Button adds an empty row to the VLAN Definitions Table. Once a row is added, it
can be used to define a new VLAN.

PN 613-50595-00 Rev B

Page 24 of 48
