Page 12

Allied Telesyn
AT-VIEW PLUS
VLAN MANAGER

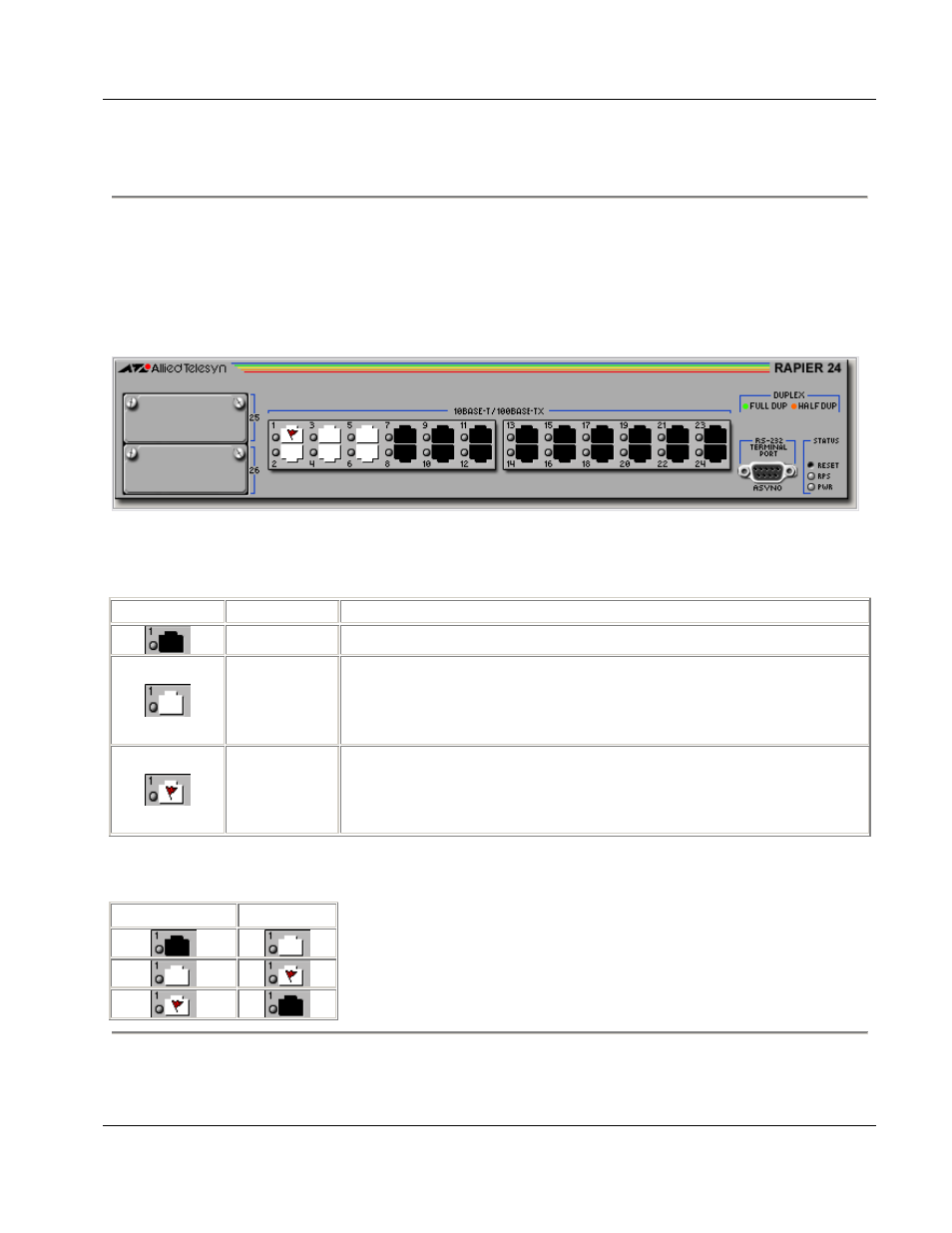

4.2 Device Panel
A device panel that reflects the actual ports available on the target host is used to create or modify a
VLAN definition.
Note
- The AT-A48/SC, AT-A48/MT and AT-A49 Expansion Modules for the AT-8350GB are not
supported and will not show up on the device panel.
Device Panel
A port can be in any one of three possible states.
Port Image
State
Description
Not Selected This port does not belong to the VLAN.
Selected
This port is an untagged member of the VLAN.
Note
- For the AT-8200XL Series, this port is considered a member of
the VLAN.
Flagged
This port is a tagged member of the VLAN.
Note
- For the AT-8200XL Series, this port is considered an untagged
(port-based) member of the VLAN.
Clicking on a port will change its state as follows:
Current State New State
4 Basic Operations
PN 613-50595-00 Rev B
Page 12 of 48
