5.2.1.4 Cancel Button
The Cancel Button cancels the Add VLAN operation and closes the Add VLAN dialog box.
5.2.2 Modify VLAN
This option opens the Modify VLAN dialog box that allows you to change specific attributes of a
VLAN.
Note
- This option is only available if a VLAN definition is selected.
Refer to
Section 4.1 - Selecting VLAN Definitions
for details on how to select a VLAN definition.

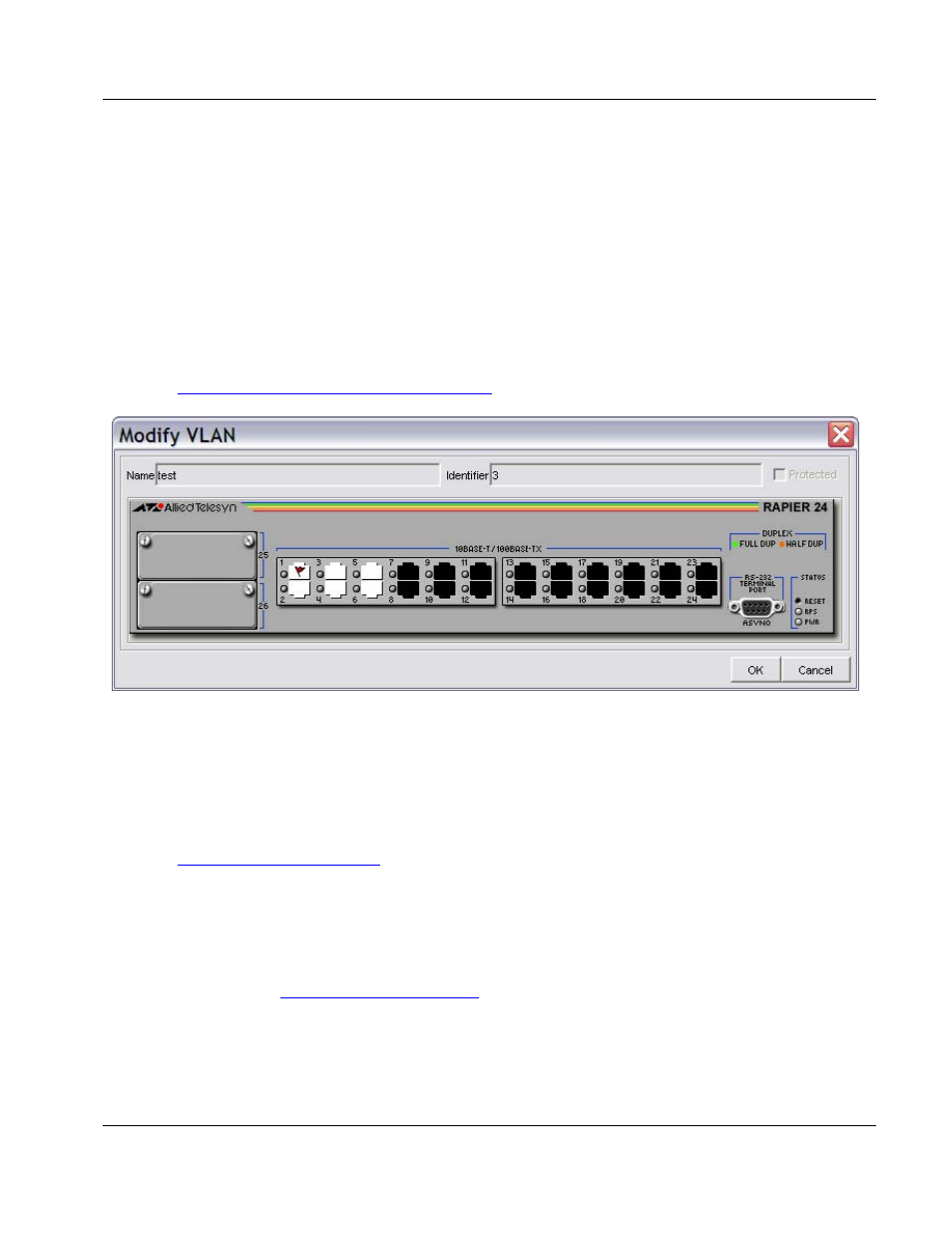

Modify VLAN dialog box
5.2.2.1 Input Fields
The Input Fields are attributes of the VLAN definition to be modified. Depending on the device, one
or more of the fields may be disabled and cannot be modified.
Refer to
for details on the specific attributes that can and cannot be
modified for each device family.
5.2.2.2 Modifying Ports
You can add ports to or remove ports from a VLAN definition by clicking on the port images on the
device panel. Refer to
for details on how to specify tagged and untagged
ports and to unselect ports.
