Allied Telesyn
AT-VIEW PLUS
VLAN MANAGER
5.2.1.2 Adding/Removing Ports
You can add ports to or remove ports from a VLAN definition by clicking on the port images on the
device panel. Refer to
for details on how to specify tagged and untagged
ports and to unselect ports.

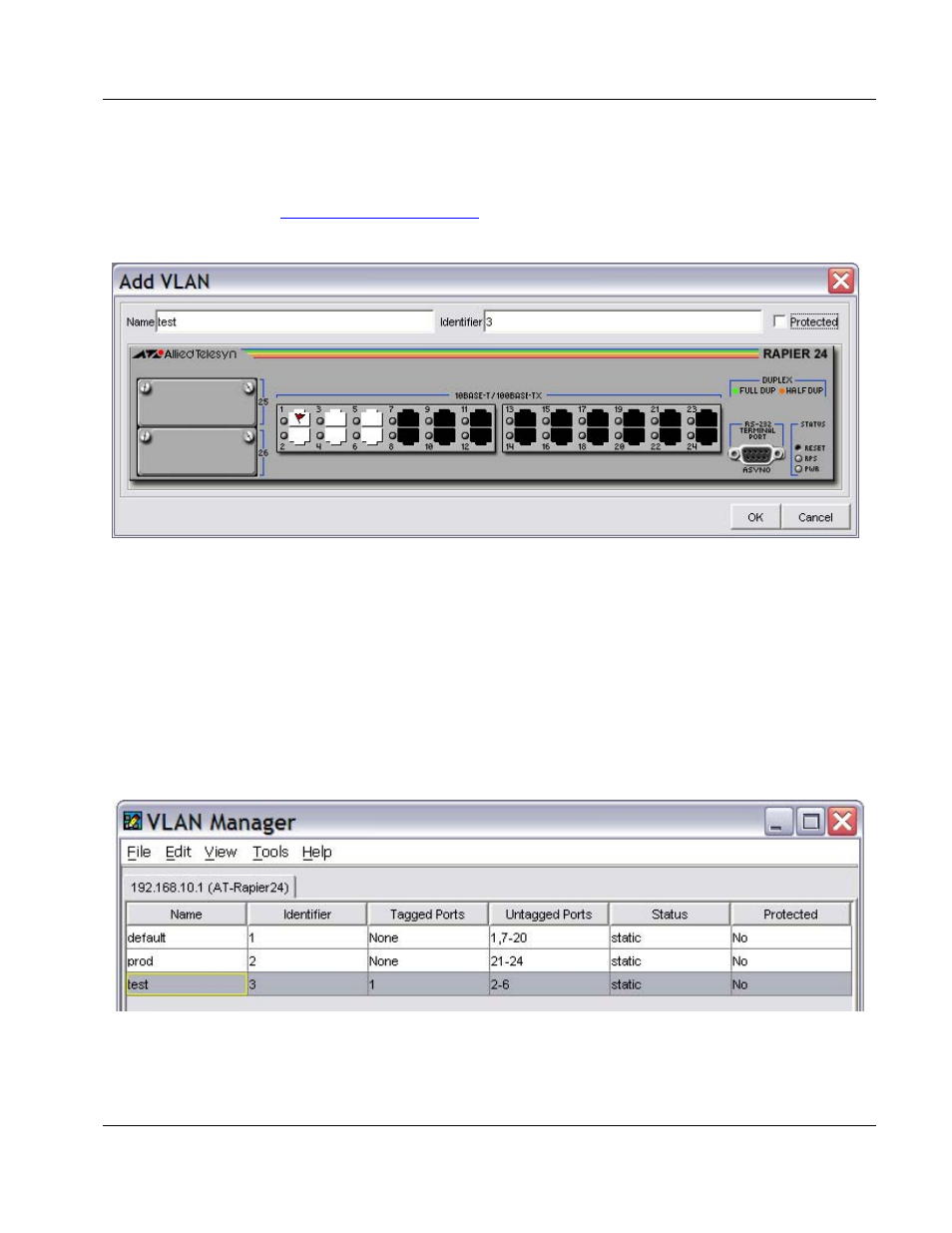

Adding/Removing Ports
In the illustration above, a new VLAN definition is being created for a Rapier 24. The VLAN Name
is "test" while its Identifier is "3". Ports 2 to 6 are untagged members while Port 1 is a tagged
member of the VLAN.
5.2.1.3 OK Button
The OK Button is disabled by default. It is only enabled when both the Name and Identifier fields
are populated. When the OK button is clicked, VLAN Manager adds the new VLAN definition to
the target host and updates the VLAN Information Window.
New VLAN definition added to VLAN Information Window
After clicking the OK button, the new Add VLAN dialog will be closed and the new VLAN entry
will be added to the Main window's Information Pane.
PN 613-50595-00 Rev B
Page 20 of 48
