AT-GS916 and AT-GS924 Gigabit Ethernet Switches Installation Guide
29
Cabling the Switch
To connect to the ports on the AT-GS916 and AT-GS924 switches,
perform the following procedure:
1. Connect the twisted pair data cables to the RJ-45 ports on the switch,
as illustrated in Figure 13.

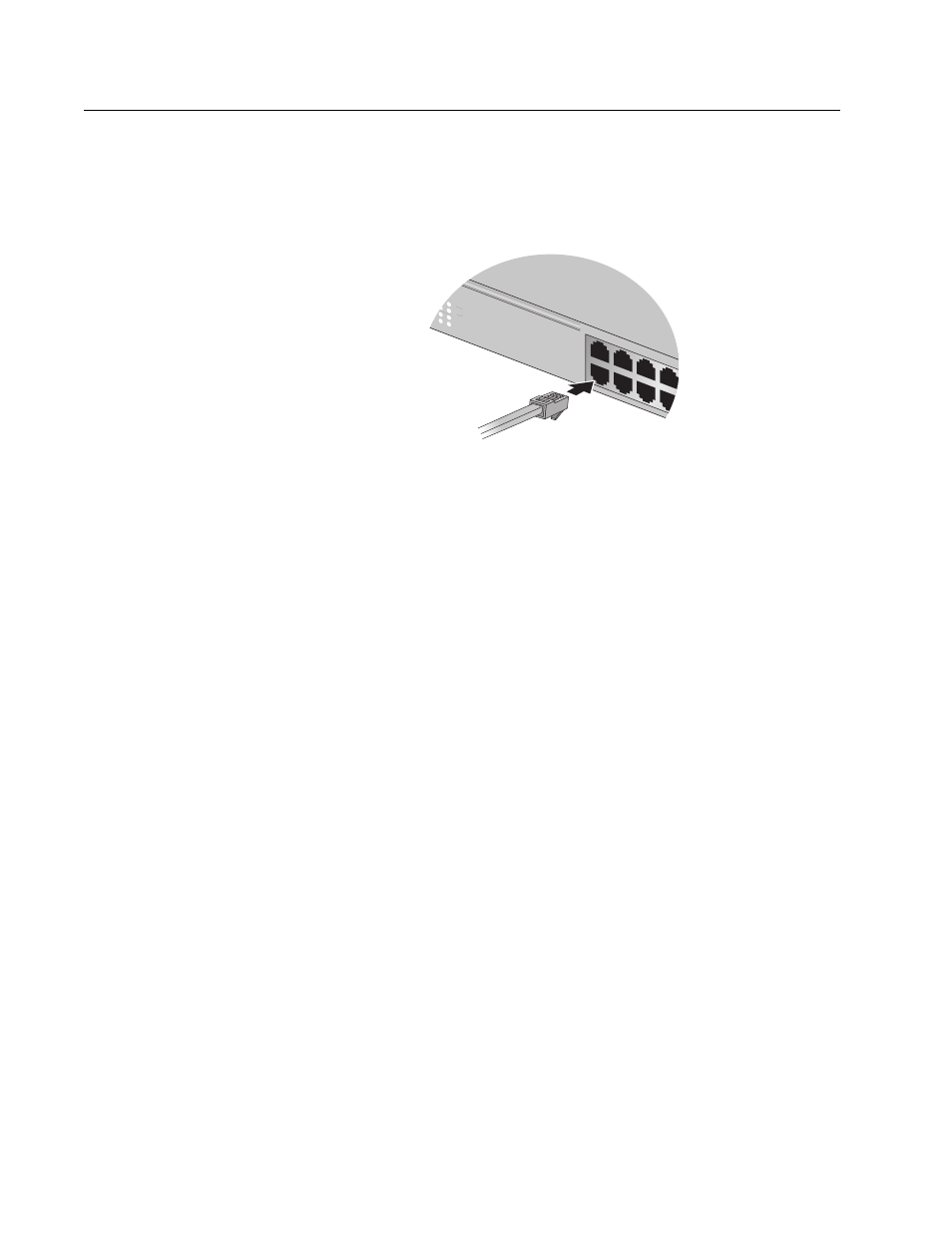

Figure 13 Connecting the Twisted Pair Data Cables
2. Power on the end-nodes. For more information, refer to ”Powering
On the Switch” on page 30.
When connecting a twisted pair cable to a port, observe the
following guidelines:
‰ An RJ-45 connector should fit snugly into the port on the switch.
The tab on the connector should lock the connector into place.
‰ The ports on the switch are auto-MDI/MDI-X. You can use either a
straight-through or crossover twisted pair cable to connect any
type of network device to a port on the switch.
‰ The network should not contain data loops, which can adversely
affect network performance. A data loop exists when two or more
network devices can communicate with each other over more
than one data path.
1
3
5
7
2
4
6
8
13 14 15 16
10
ACT
FDX
100 1000
