AT-GS916 and AT-GS924 Gigabit Ethernet Switches Installation Guide
25
Installing the Power Cord Retaining Clip
Perform the following procedure to install the power cord retaining clip
on an AC powered switch:
Note
Install the power cord retaining clip before you install the switch in
a rack.
1. Locate the power cord retaining clip which is shown in Figure 6.

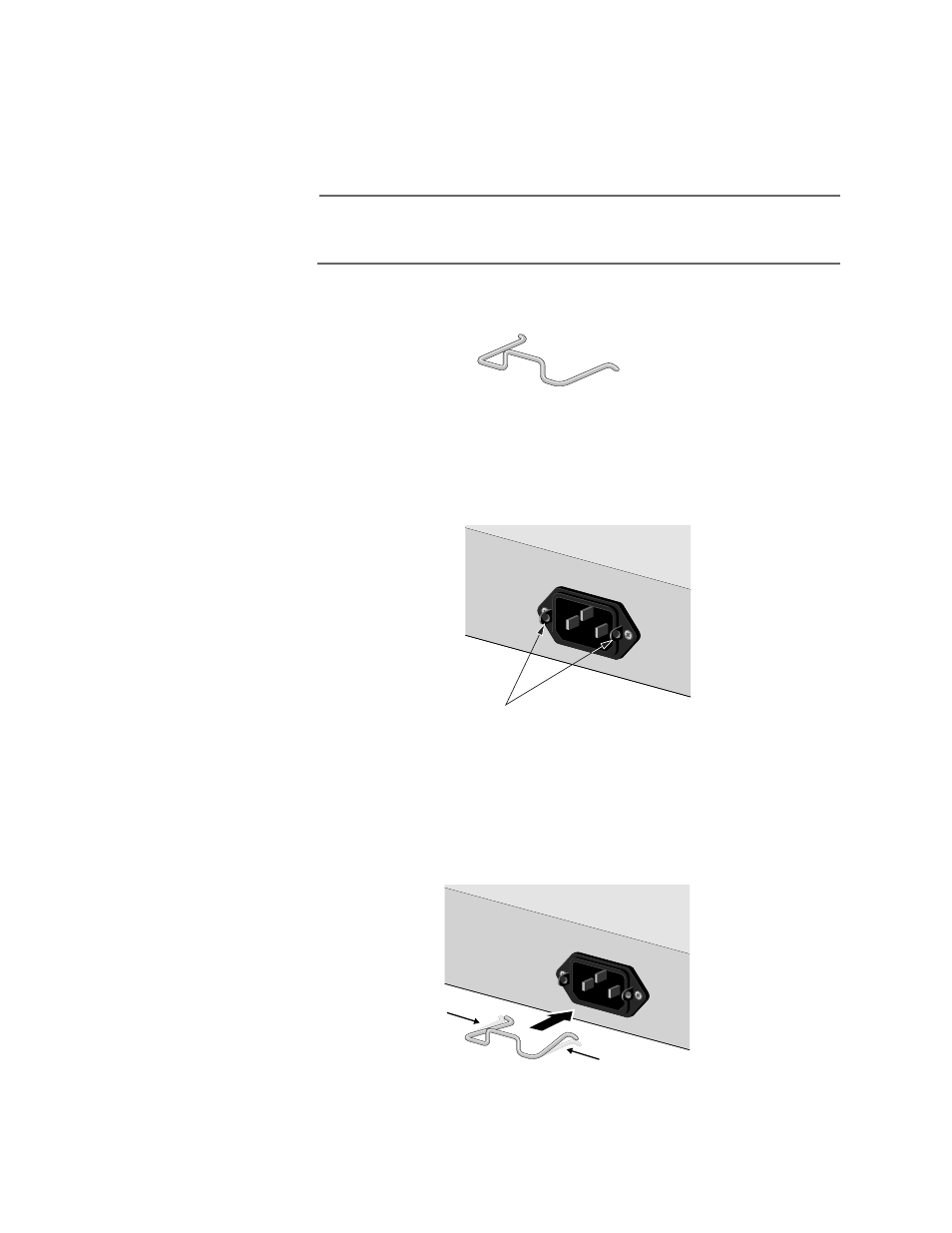

Figure 6. Power Cord Retaining Clip
2. Locate the retaining bracket on each side of the AC power connector
on the back of the switch, as shown in Figure 7.
Figure 7. Power Cord Retaining Bracket
3. With the “u” of the clip facing up, press the sides of the clip toward the
center and insert the short ends into the holes in the retaining
bracket, as shown in Figure 8.
Figure 8. Inserting the Retaining Clip into the Retaining Bracket
100-240V
AC ~
Bracket
100-240V
AC ~
