Allied Telesyn
AT-VIEW PLUS
VLAN MANAGER
5.2 Edit
The Edit menu lets you modify the VLAN configuration of the currently connected device. You
can also save the VLAN configuration of the device to a file.
Topics:
•
•
•
•
•
•
5.2.1 Add VLAN
This option opens the Add VLAN dialog box that allows you to create a VLAN definition.

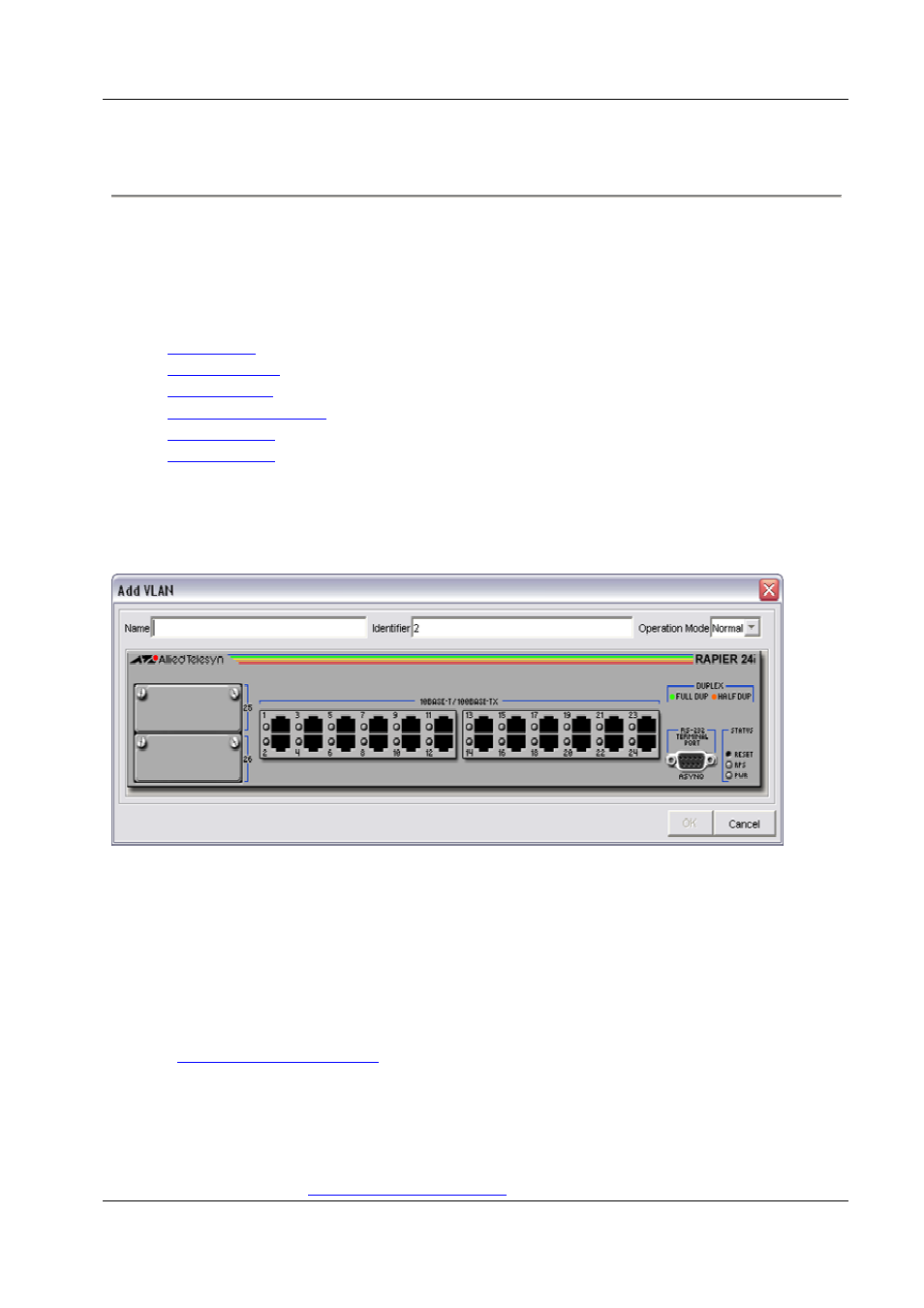

Add VLAN dialog box
5.2.1.1 Input Fields
The Input Fields are the attributes that serve as VLAN creation parameters. These fields differ
from one device family to another. In the illustration above, the device panel shown is for a
Rapier 24i. Since the required Input Fields for the Rapier Family are Name, Identifier, and
Operation Mode, these are the fields that are displayed in the Add VLAN dialog box.
Refer to
for details on the specific Input Fields available for each
device family.
5.2.1.2 Adding/Removing Ports
You can add ports to or remove ports from a VLAN definition by clicking on the port images on
the device panel. Refer to
for details on how to specify tagged and
PN 613-50666-00 Rev B
Page 21 of 56
