Allied Telesyn

AT-VIEW PLUS

VLAN MANAGER

This drop down list allows you to select the SNMP version to use in managing the
target device.

Note

- Before choosing "v2c" or "v3", make sure that the target device you are

connecting to supports SNMP v2c and/or SNMP v3 respectively.

Settings

If the Version is set to "v1" or "v2c", this button opens the SNMP v1/v2c Settings
window. Otherwise, if the Version is set to "v3", this button opens the SNMP v3
Settings window.

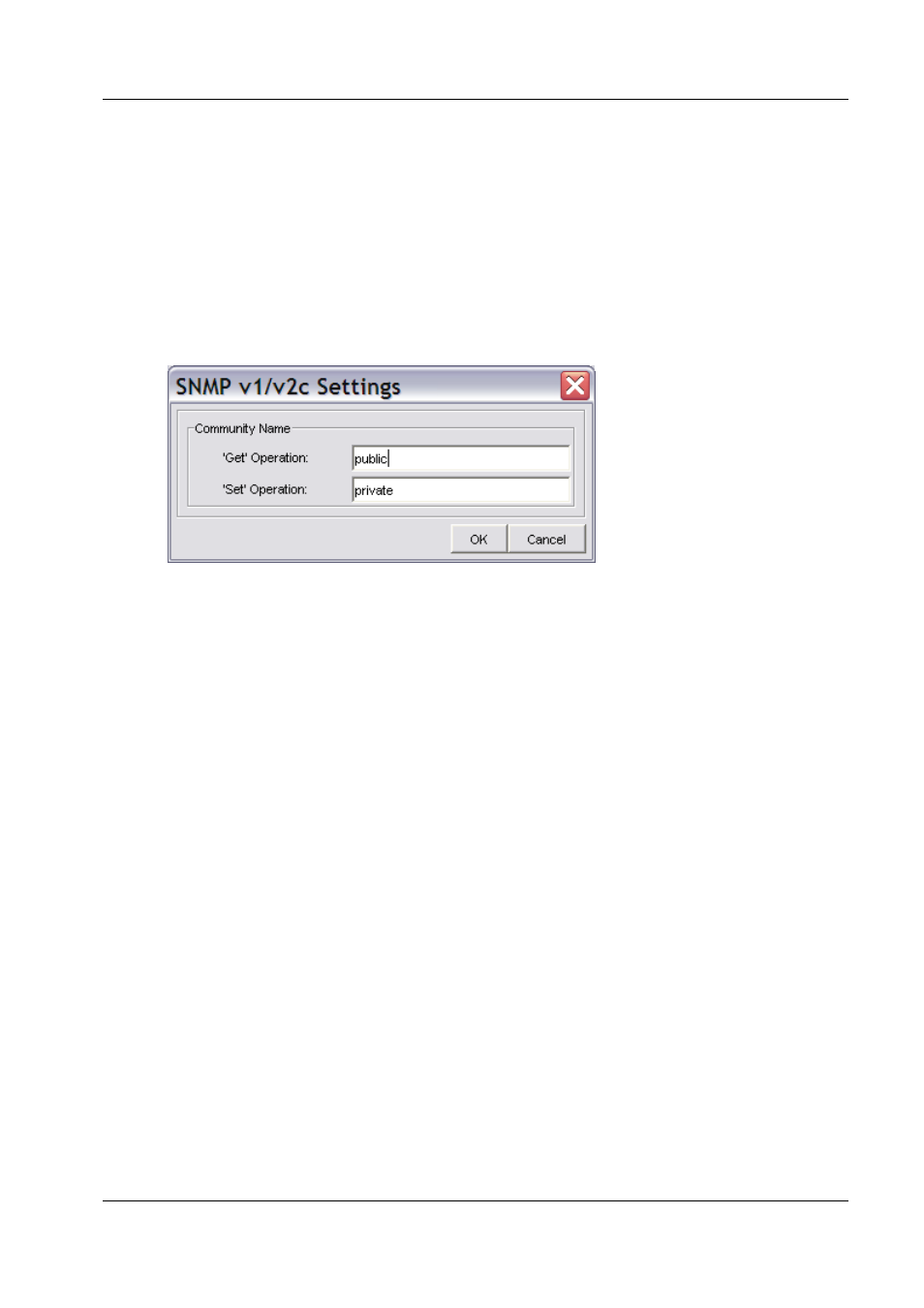

SNMP v1/v2c Settings dialog box

Community Name

The community strings to use in performing SNMP operations on the target host.
There are three types of community strings for SNMP. Be sure to specify strings
which match the ones configured on the target host.
By default, the following strings are used:

for the 'Get' operation

public

for the 'Set' operation

private
