AT-8500 Series Fast Ethernet Switch Installation Guide
51
Installing the Switch in a Rack
The switch comes with two brackets for mounting the unit in a rack. The
brackets can be attached to the chassis four ways. You can install the
chassis so that it is flush with the front of the rack or so that it extends

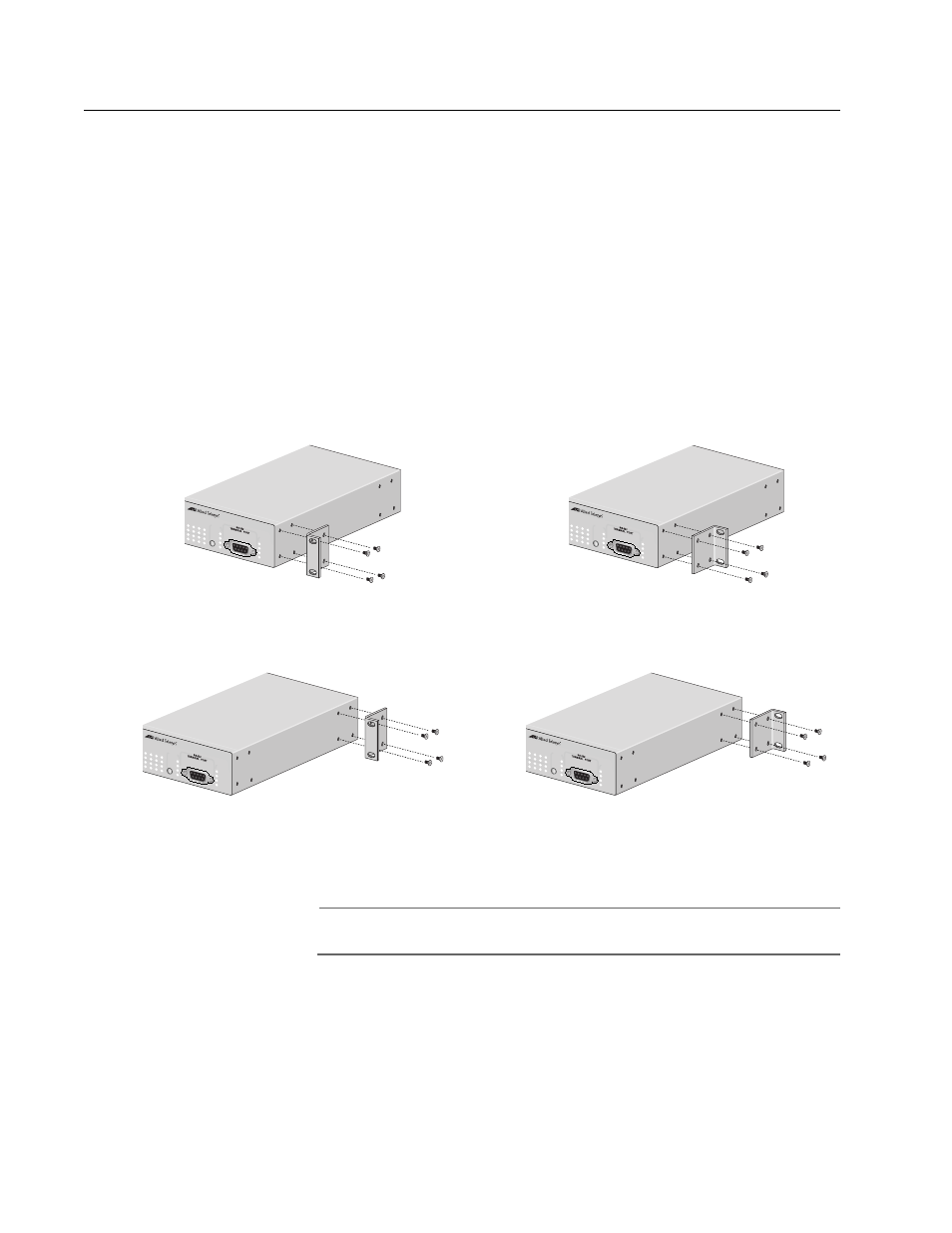

forward from the rack. Figure 11 illustrates the different ways that you
can install the brackets and how much the chassis extends from the
front of the rack.
❑ Method A - Flush with front of rack
❑ Method B - 4.5cm (1.75 in.)
❑ Method C - 18.4 cm (7.25 in.)
Method D - 21.6 cm (8.5 in)
Figure 11 Rackmount Bracket Positions
Note
The AT-8524POE switch supports only Methods A and B.
17
19
21
23
18
20
22
24
COL
100
FULL
ACT
FAULT
RPS
MASTER
PWR
MODE
STATUS
AT-8524M
Fast Ethernet S
witch
17
19
21
23
18
20
22
24
COL
100
FULL
ACT
FAULT
RPS
MASTER
PWR
MODE
STATUS
AT-8524M
Fast Ethernet Sw
itch
17
19
21
23
18
20
22
24
COL
100
FULL
ACT
FAULT
RPS
MASTER
PWR
MODE
STATUS
AT-8524M
Fast Ethernet Switch
17
19
21
23
18
20
22
24
COL
100
FULL
ACT
FAULT
RPS
MASTER
PWR
MODE
STATUS
AT-8524M
Fast Ethernet Sw
itch
A
B
C
D
