AT-8500 Series Fast Ethernet Switch Installation Guide
13
AT-8524M The AT-8524M switch has 24 10/100Base-TX twisted pair ports and two
module expansion slots. The twisted pair ports feature RJ-45 connectors
and have a maximum operating distance of 100 meters (328 feet) using
Category 3 or better 100 ohm twisted pair cable for 10Base-T operation
and Category 5 or 5E 100 ohm twisted pair cable for 100Base-TX
operation.
The expansion slots are compatible with 100Base and 1000Base fiber
optic and twisted pair port expansion modules and the AT-STACKM
stacking module.
Figure 2 shows the front and back panels of the AT-8524M switch.

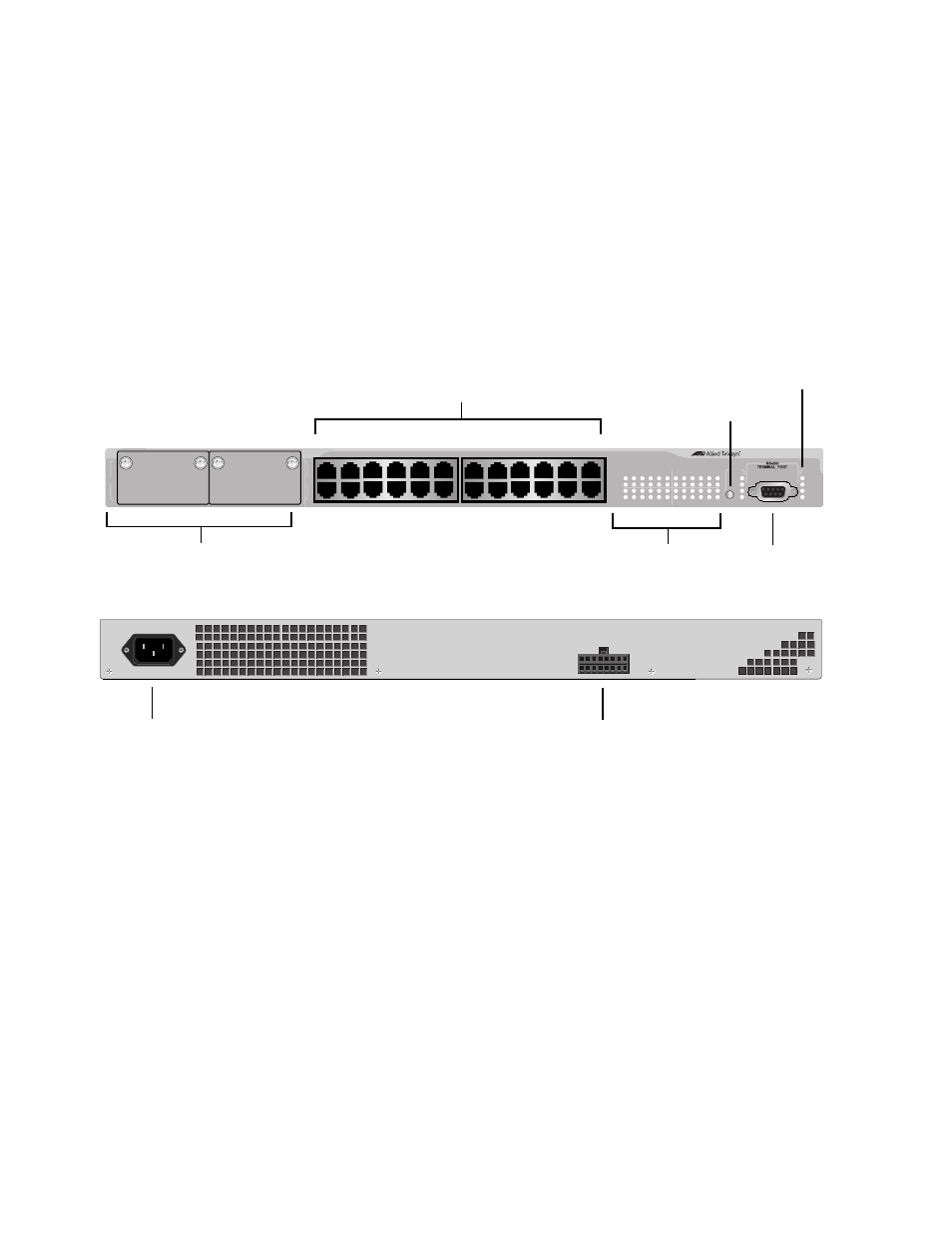

Figure 2 AT-8524M Series Switch - Front and Back Panels
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
LINK
MODE
LINK
MODE
COL
100
FULL
ACT
FAULT
RPS
MASTER
PWR
MODE
1 3 5 7 9 11
2 4 6 8 10 12
13 15 17 19 21 23
14 16 18 20 22 24
STATUS
26 25
AT-8524M Fast Ethernet Switch
RS-232
Terminal Port
Module Expansion Slots
10/100Base-TX Ports
Port Status
AC Power
Connector
LED Mode
Select Button
System
LEDs
LEDs
RPS Connector
100-240VAC ~
RPS INPUT
