Overview
2 NXR-ZGW/-ZRP
NXR-ZGW (FG5791-01) Specifications (Cont.)
Rear Components:
Power connector Two power options are available:
• 2-pin 3.5mm Phoenix connector
• Power Over Ethernet (PoE) - powers the device through the CAT5 cable.
Both Power and Data can be transmitted simultaneous through the CAT5
cable when using the appropriate equipment.
Ethernet port 10BaseT modular (RJ-45) connector - used to connect the NXR-ZGW to
your LAN and/or to connect your third party device to the LAN when the NXR-
ZGW is used as a gateway.
Certifications: • FCC ID: CWU-ZGW
• IC ID: 5078A-ZGW
• CE
• IEC-60950
• TELEC
Operating/Storage
Environments: • Operating Temperature: -30°C (-22°F) to 70°C (158°F)
• Relative Humidity: 5% to 85% non-condensing; intended for indoor use only
Included Accessories: • 2.4GHZ, MONO, RSMA, 3.5IN, 2.0DBI Antenna (70-0012-SA)
• Rubber feet
• Velcro mounting strip
• Power Supply (24-5791-SA)
Other AMX Products: • Mio Modero R-3 Remote (FG148-03)
• Mio Modero R-4 Remote (FG148-04)
• NXR-ZRP NetLinx ZigBee Repeater (FG5791-02)
• NXA-WAP 2403A 3 dBI Antenna (FG2255-20)
• NXA-WAP 2405A 5.5 dBI Antenna (FG2255-21)
• NXA-WAP 2413A Mounting Bracket (FG2255-24)

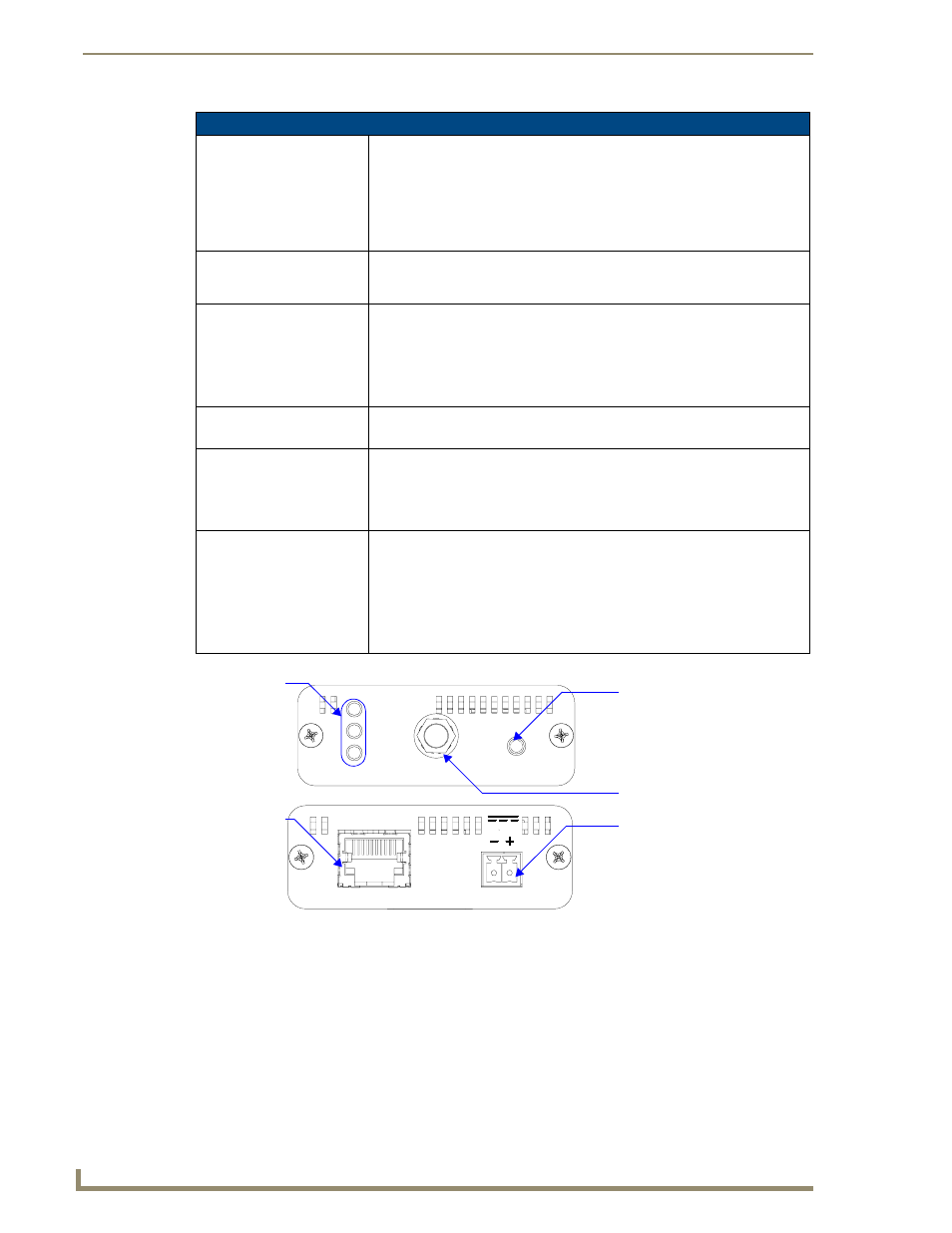

FIG. 1 Front and Rear Components of the NXR-ZGW
PoE PWR
12VDC
ETHERNET
PWR/STATUS
LAN
RF
ANT ID
(Front)
(Rear)
ID Button
Antenna Mount
2-pin 3.5mm Phoenix
10BaseT Modular
(RJ-45) connector
Connection LEDs
power connector
