Allied Telesis AT-S81 - Manual (Page 214)

Chapter 19: Port Configuration
214 Section II: Web Browser Interface
Viewing and Configuring Multiple Ports
This procedure allows you to configure the ports on the switch using the
Port Configuration page. This page allows you to view and configure the
parameter settings of all the switch ports at one time.
To configure the ports, perform the following procedure:
1. From the Basic Config menu, select Port Config.
The Port Configuration page is shown in Figure 55. The page lists all
the ports on the switch and their current settings.

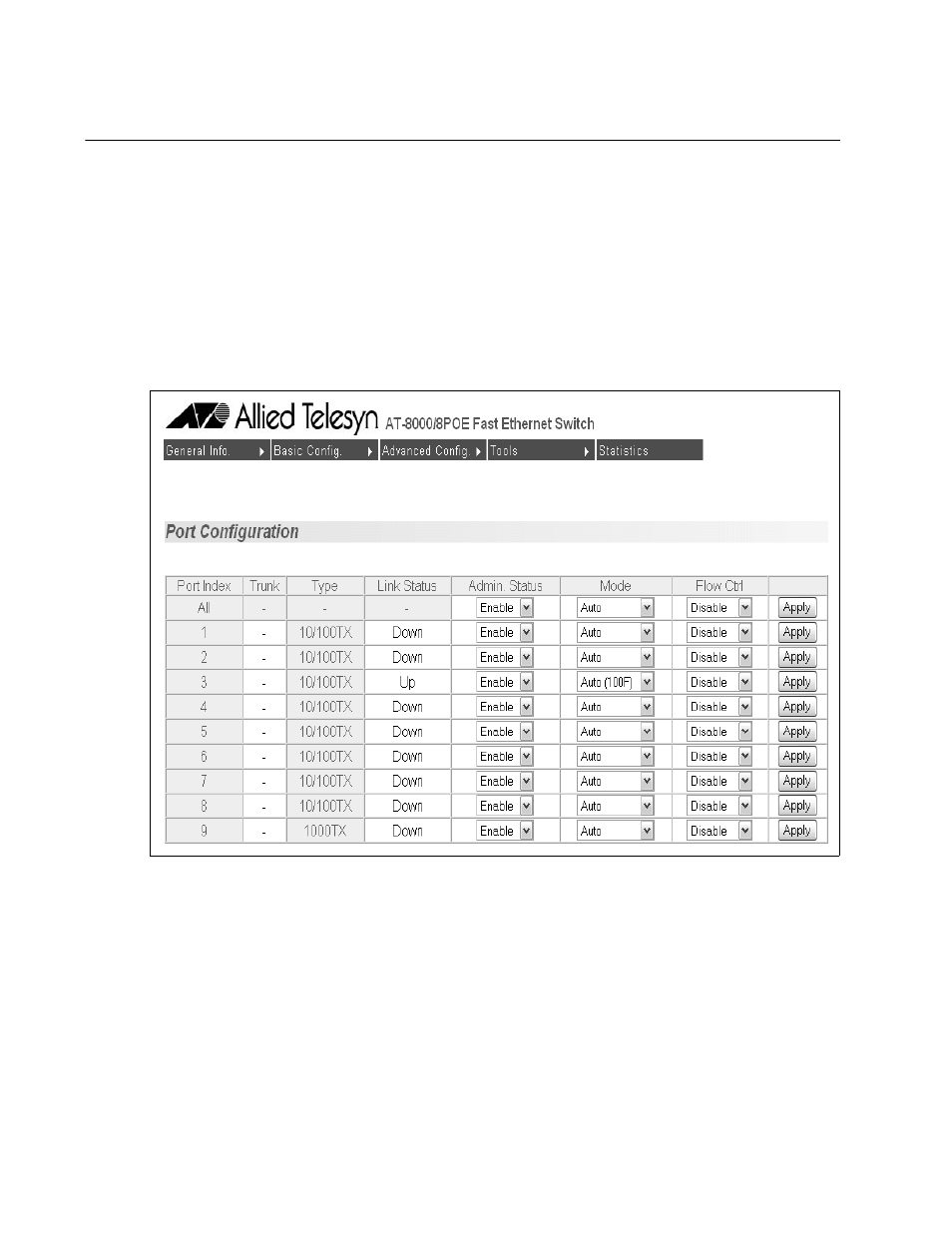

Figure 55. Port Configuration Page
2. Adjust the port settings as needed. Not all parameters are adjustable.
The parameters are:
Port Index
The port number. You cannot change this parameter.
Trunk
The trunk group number. A number in this column indicates that the
port has been added to a trunk. For information about configuring a
trunk, refer to Chapter 21, “Port Trunking” on page 227.
