Technical Specifications
24
Agency Compliance
EMI/RFI: FCC Class B, EN55022 Class B,
VCCI Class B, C-TICK
Electrical Safety: EN60950 (TUV), UL60950 (
c
UL
us)
, CE
Immunity: EN55024
Pinout Assignments

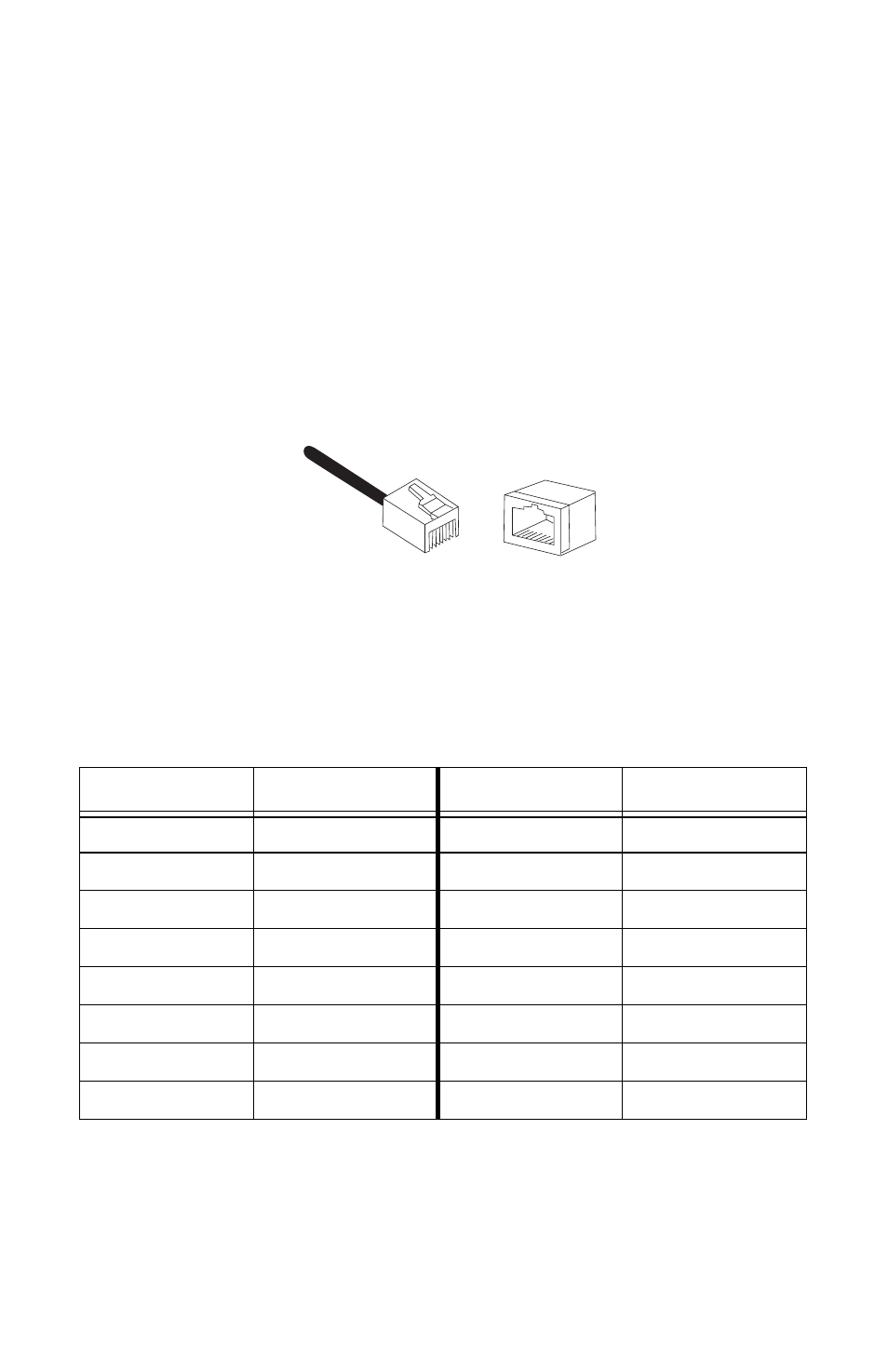

Figure 8 shows the pinout assignments for the RJ-45 connector.
Figure 8 RJ-45 Pin Assignments
Table 4 lists the RJ-45 connector pins and their signals used in Port 1 - Port 4
when these port are operating in either MDI or MDI-X configuration.
Table 4 RJ-45 Pin Signals used in Ports 1 - 4
MDI-X (Default) Signal MDI Signal
1 RX+ 1 TX+
2 RX- 2 TX-
3 TX+ 3 RX+
4 - 4 -
5 - 5 -
6 TX- 6 RX-
7 - 7 -
8 - 8 -
8
8
1 1
