Installation
18
4. Position the switch horizontally onto the wall screws, as illustrated in
Figure 7.

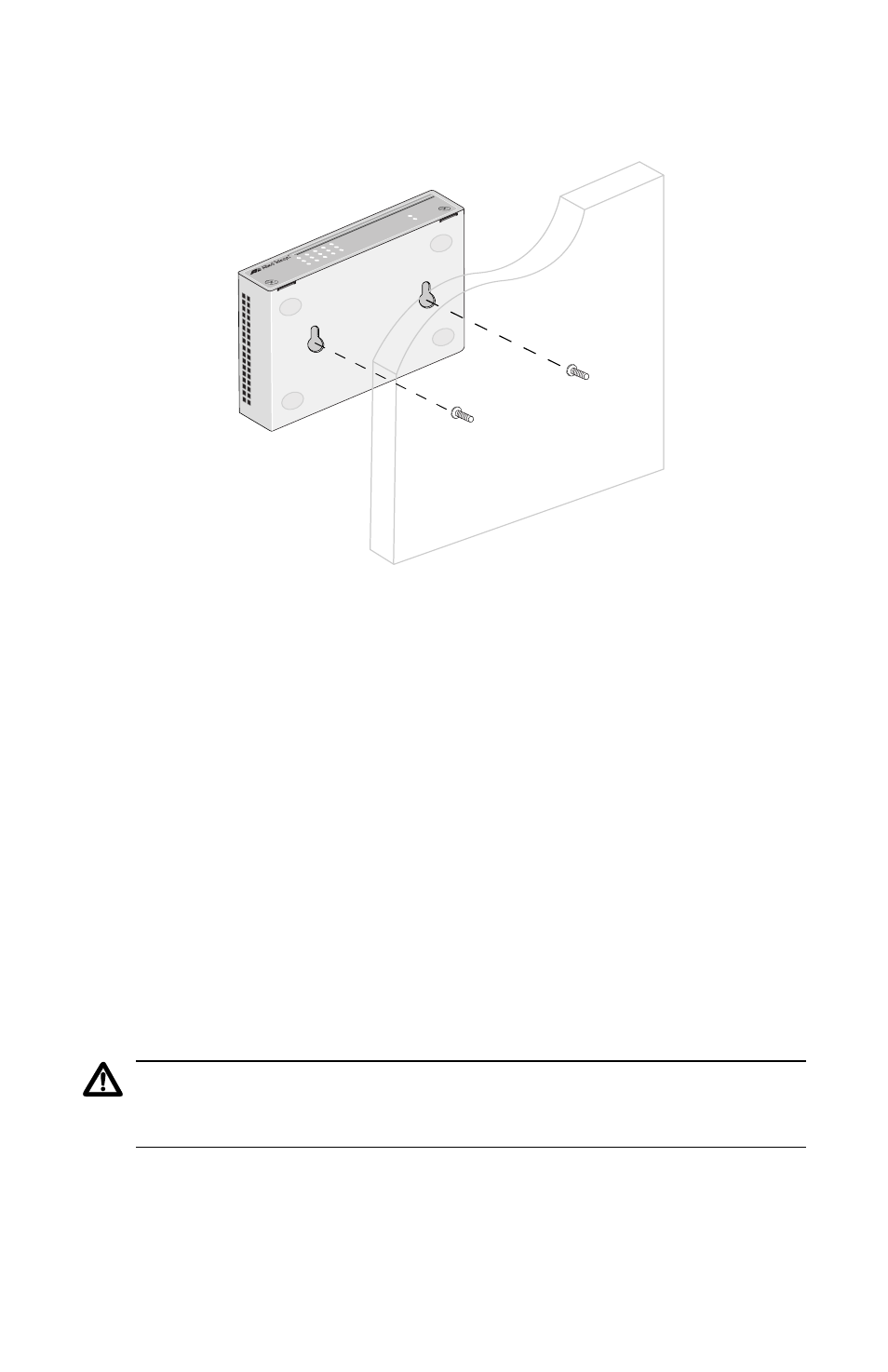

Figure 7 Positioning The Switch Onto The Wall Screws
5. Connect the twisted pair cables to the twisted pair ports.
When connecting a twisted pair cable to a port, observe the following
guidelines:
❑
An RJ-45 connector should fit snugly into the port on the switch. The
tab on the connector should lock the connector into place.
❑
You should check to be sure that you are using the appropriate type of
twisted pair cabling. Refer to Table 3 on page 12 for twisted pair cable
specifications.
❑
Since the twisted pair port, when operating in Auto-Negotiation, is
Auto MDI/MDI-X, you can use either a straight-through or crossover
twisted pair cable to connect any type of network device to a port on
the converter.
Caution
POE and power cord are used as disconnection devices: To de-energize
equipment, disconnect the POE and the power cord.
