Overview
2

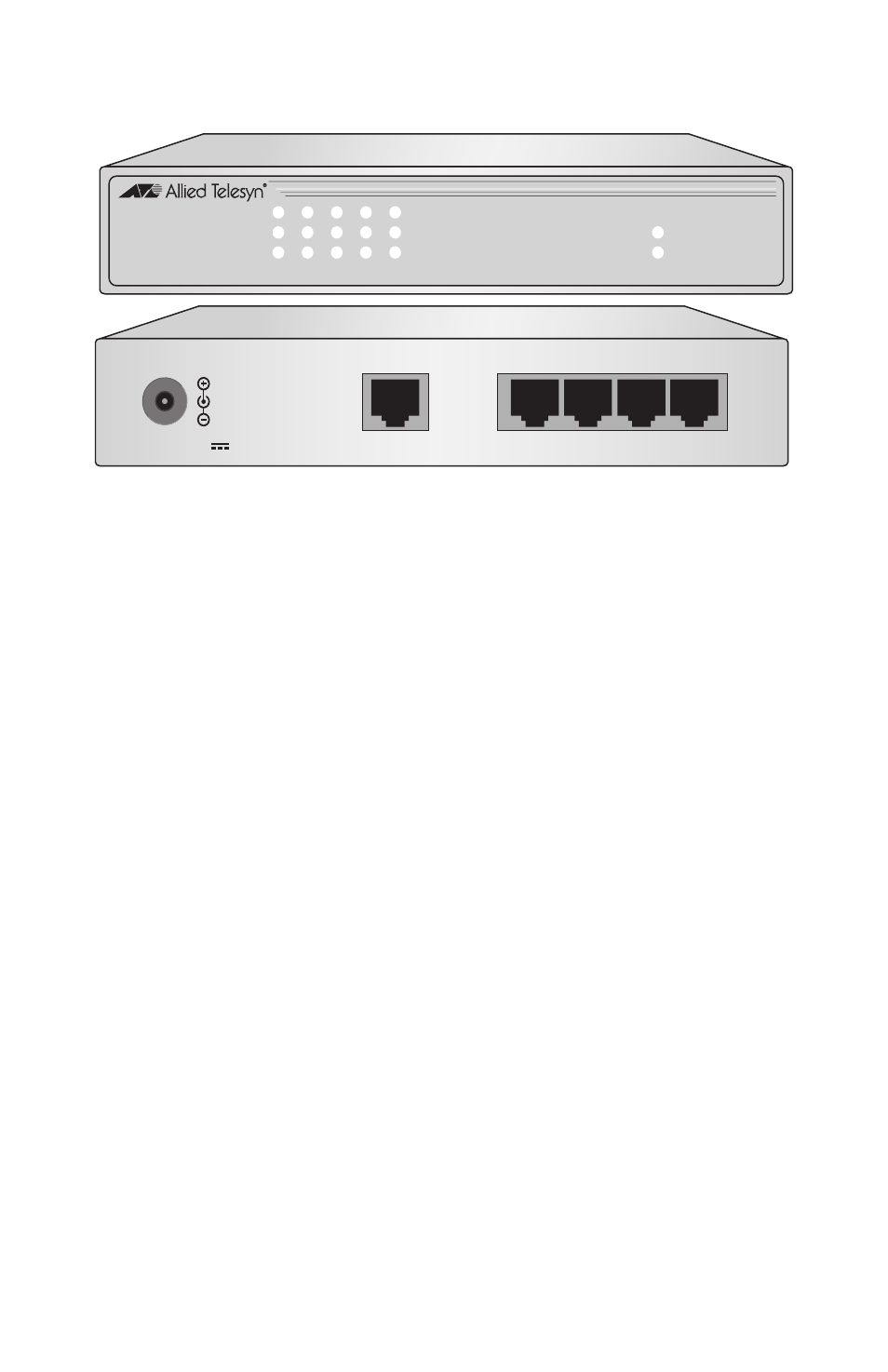

Figure 1 illustrates the front and back panels of the AT-FS705PD switch.
Figure 1 AT-FS705PD Switch Front and Back Panels
Key Features
The AT-FS705PD switch has the following key features:
❑
Five 10/100Base-TX ports using RJ-45 twisted pair connectors
❑
Power-Over-Ethernet PD Support
❑
System and port LEDs
❑
Auto MDI/MDI-X on all ports
❑
Auto-Negotiation on all ports (IEEE 802.3u-compliant)
❑
Non-blocking architecture
❑
Store and forward packet handling
❑
Backpressure and flow control (IEEE 802.3x-compliant)
❑
Storage for up to 2,048 MAC addresses with aging time at 300 seconds
❑
Maximum frame size of 1536 Byte
❑
For use on a desktop or wallmount
AT-FS705PD
5 Port Fast Ethernet Switch
Powered Device
100M
5 4 3 2 1
LINK /ACT
FDX
PWR
POE
WALL
24V D C 1 2 3 4 5
POE
