Allied Telesis AT-S82 - Manual (Page 57)

AT-S82 Management Software User’s Guide
57
Mapping Priorities to Queues
To map priorities to queues, perform the following procedure:
1. From the main menu, select CoS Priority to Queue.
The CoS Priority to Queue page is shown in Figure 22.

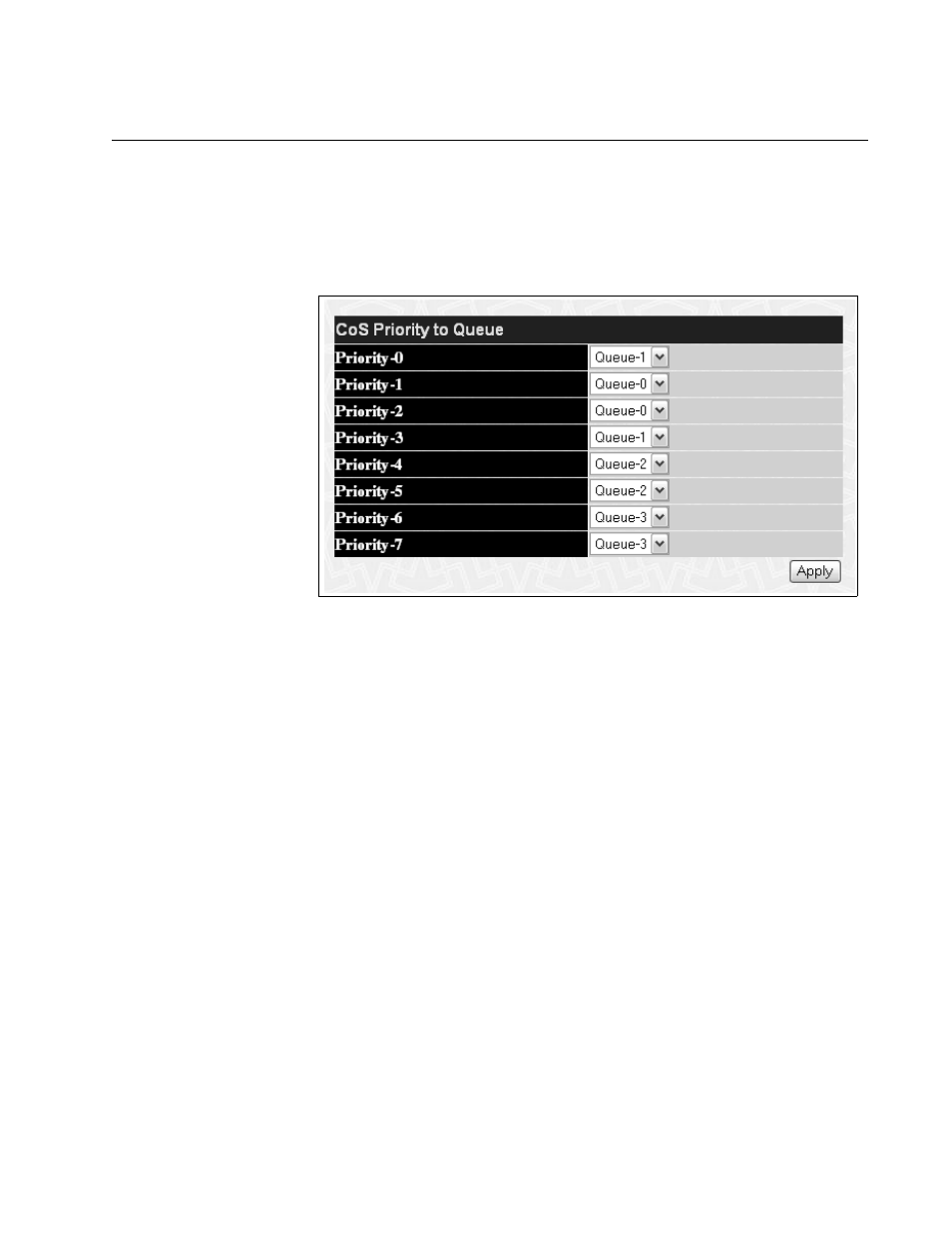

Figure 22. CoS Priority to Queue Page
The default queue for each priority is displayed
2. To set the queue associated with a priority, select a new queue from
the adjacent list.
3. Click Apply to implement your changes.
4. To save the settings to the configuration file, from the main menu,
select Save Configuration.
The Save Configuration page is shown in Figure 3 on page 14.
5. Click Apply.
