AT-S82 Management Software User’s Guide
47
Working with VLANs
This section contains the following procedures for working with VLANs:
ˆ “Creating a VLAN,” next
ˆ “Displaying all VLANs” on page 48
ˆ “Modifying a VLAN” on page 49
Creating a VLAN
To create a VLAN, perform the following procedure:
1. From the main menu, select VLAN Configuration.
The VLAN Configuration page is shown in Figure 16.

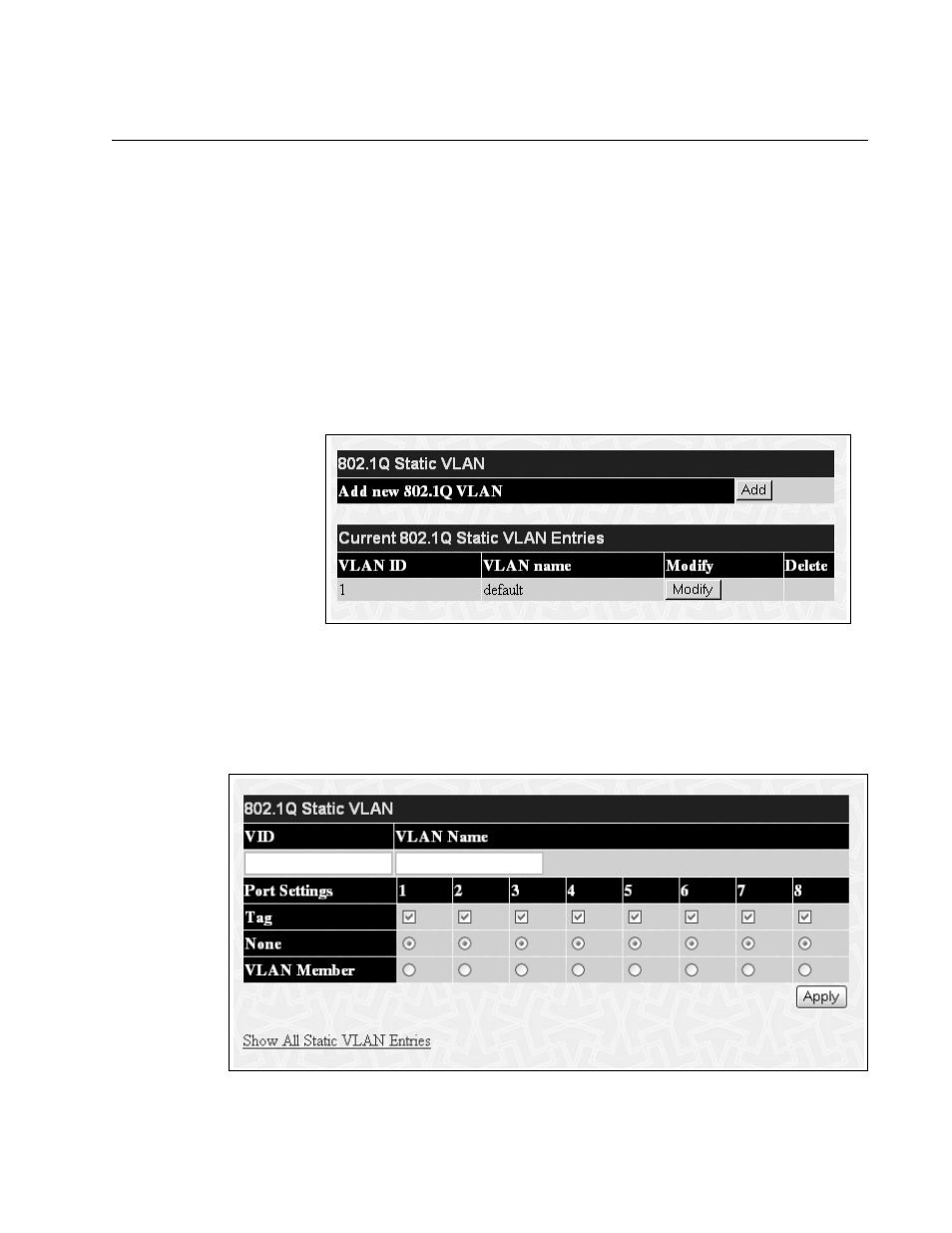

Figure 16. VLAN Configuration Page
2. Click Add.
A new page opens where you specify the VLAN, as shown in
Figure 17.
Figure 17. VLAN Detail Page
