AT-RPS3104 and AT-PWR3101 Installation Guide
23
3. Slide over the retaining clip to secure the power cord (see Figure 10).

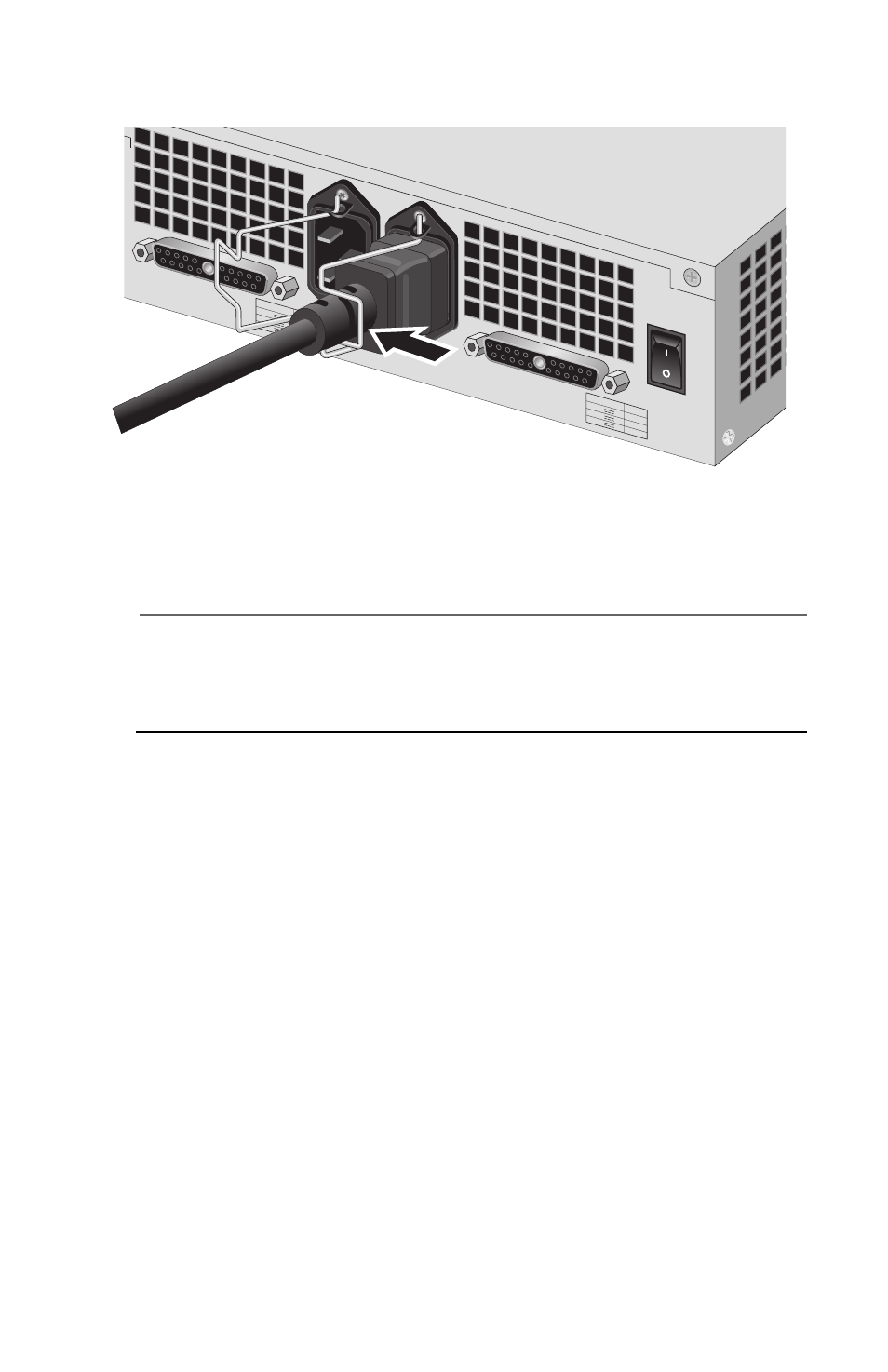

Figure 10. Securing the Power Cord with the Retaining Clip
4. Connect the other end of the AC power cord to an AC power source.
Note
To increase the protection to your network, Allied Telesyn
recommends connecting the RPS to an AC power source that
operates on a different AC circuit than the switch.
OUTPUT VDC
A MAX
+48
+12
+3.3
8.5
3
15
OUTPUT VDC
A MAX
+48
+12
+3.3
8.5
3
15
To reduce the
r inputs
RPS OUTPUT B
B
A
AC INPUT
100-240
VAC ~
RPS OUTPUT A
ON
OFF
A
