Installation Instructions
22
Cabling the AT-RPS3104 System
To cable the AT-RPS3104 system, do the following:
1. Verify that the On/Off switch for the pre-installed AT-PWR3101
module in Slot A is in the Off position (see Figure 8).

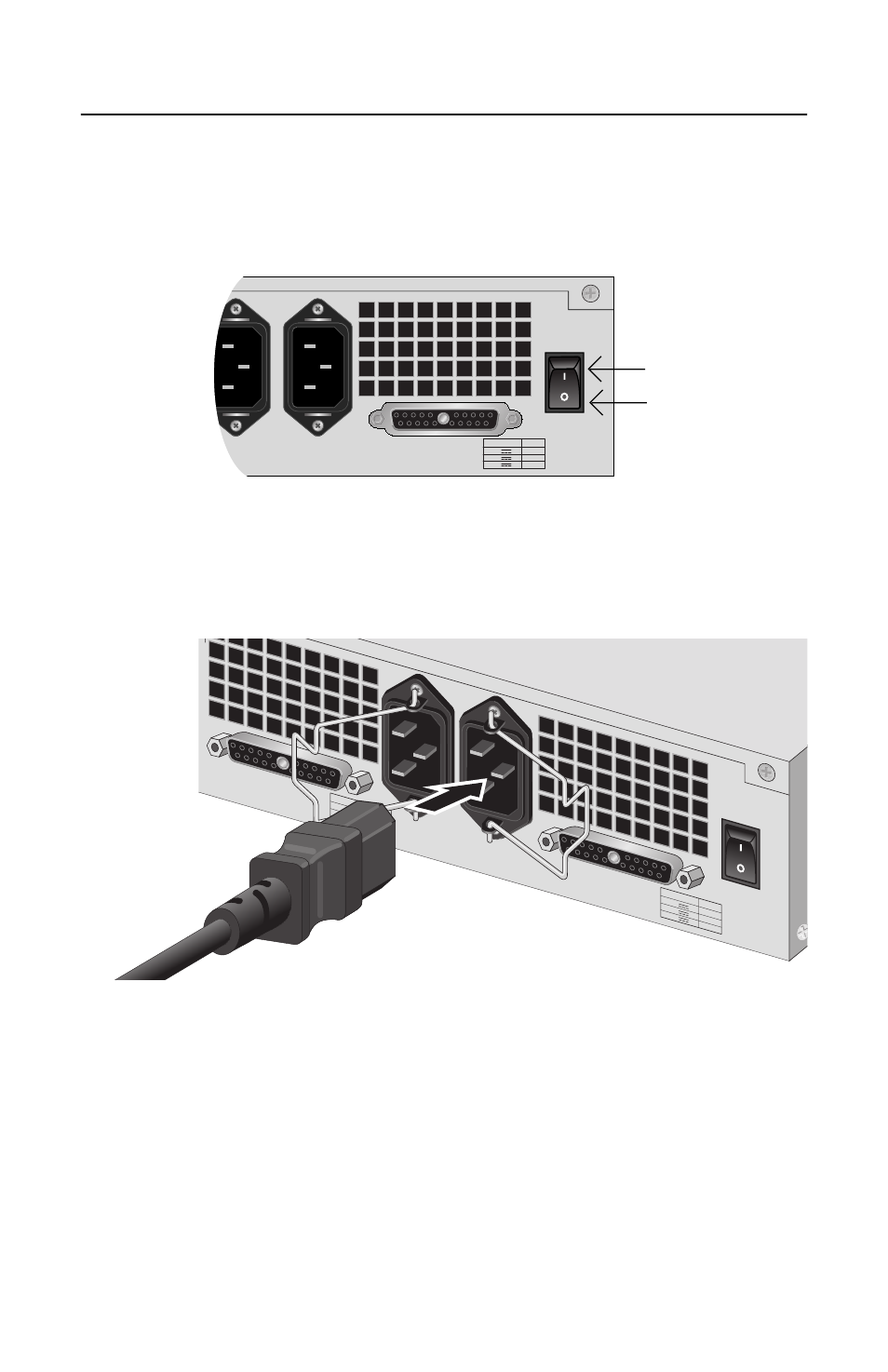

Figure 8. On/Off Power Switch
2. Connect an AC power cord to the AC connector for the pre-installed
AT-PWR3101 module in Slot A (see Figure 9).
Figure 9. Connecting a Power Cord to the AT-RPS3104 System
OUTPUT VDC A MAX
+48
+12
+3.3
8.5
3
15 B A
AC INPUT
100-240VAC ~
RPS OUTPUT A
ON
OFF
A
Off
On
OUTPUT VDC
A MAX
+48
+12
+3.3
8.5
3
15
OUTPUT VDC
A MAX
+48
+12
+3.3
8.5
3
15
To reduce the
r inputs
RPS OUTPUT B
B
A
AC INPUT
100-240
VAC ~
RPS OUTPUT
A
ON
OFF
A
