Installing the Power Cord Retaining Clips
Included with the switch are four power cord retaining clips. The clips
secure the AC power cords to the AT-RPS3104 system and prevent the
power cords from being inadvertently disconnected from the back of the
system.

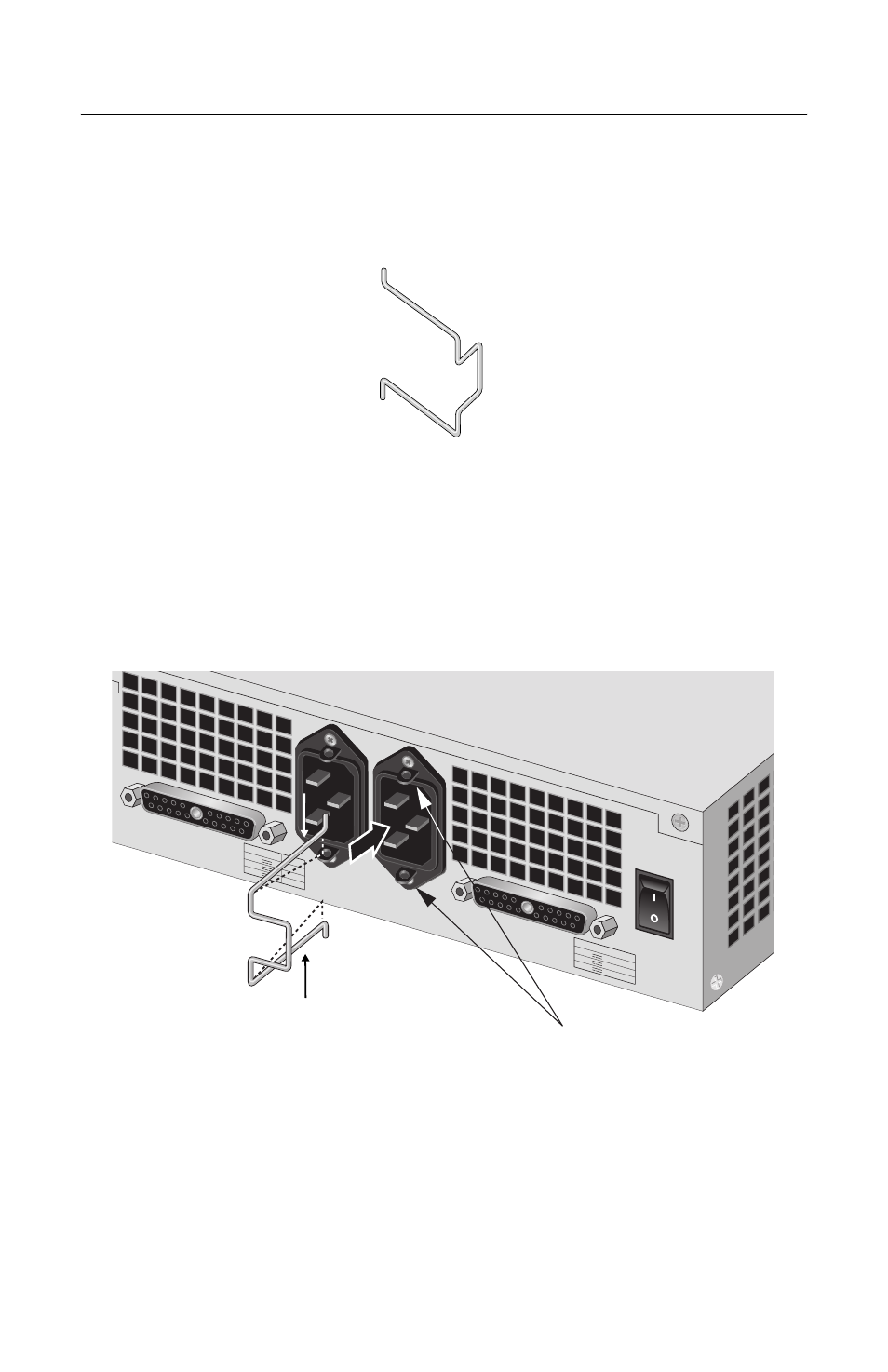

Figure 5. Retaining Clip
Allied Telesyn recommends installing all four clips during the initial
installation. To install the clips, do the following:
1. Press the sides of the clip toward the center and insert the short ends
into the holes in one of the retaining brackets (see Figure 6).
Figure 6. Installing a Power Cord Retaining Clip
2. Repeat step 1 to install the remaining retaining clips in the other
retaining brackets.
