14 AT-TQ2403 - IEEE 802.11abgh, Dual Radio, Enterprise Wireless Access Point - Installation Guide
Unpacking the Access Point
To unpack the AT-TQ2403 IEEE 802.11abgh, Dual Radio, Enterprise Wireless Access Point perform the
following procedure:
1. Remove all components from the shipping package.
Note: Store the packing material in a safe location. You must use the original shipping material
if you need to return the unit to Allied Telesis.
2.
3.
1.
2.
Place the access point on a secure, level surface.
Ensure that the following hardware components are included in your access point package. If any item
is missing or damaged, contact your Allied Telesis sales representative for assistance.
Package Contents
• One AT-TQ2403 IEEE 802.11abgh, Dual Radio, Enterprise Wireless Access Point
• Two antennas
• One wall mount kit containing two wall anchors and two screws
• One AC adapter
• One RJ45 cable
• Four rubber feet
• One magnet kit containing four magnets and four screws
• One CD with KickStart utility
• This installation guide
Antennas Installation
To install the antennas, perform the following procedure:
Remove the antennas from their package.
Locate the antenna connectors in the back of the AT-TQ2403 IEEE 802.11abgh, Dual Radio, Enterprise
Wireless Access Point, as shown in Figure 2.

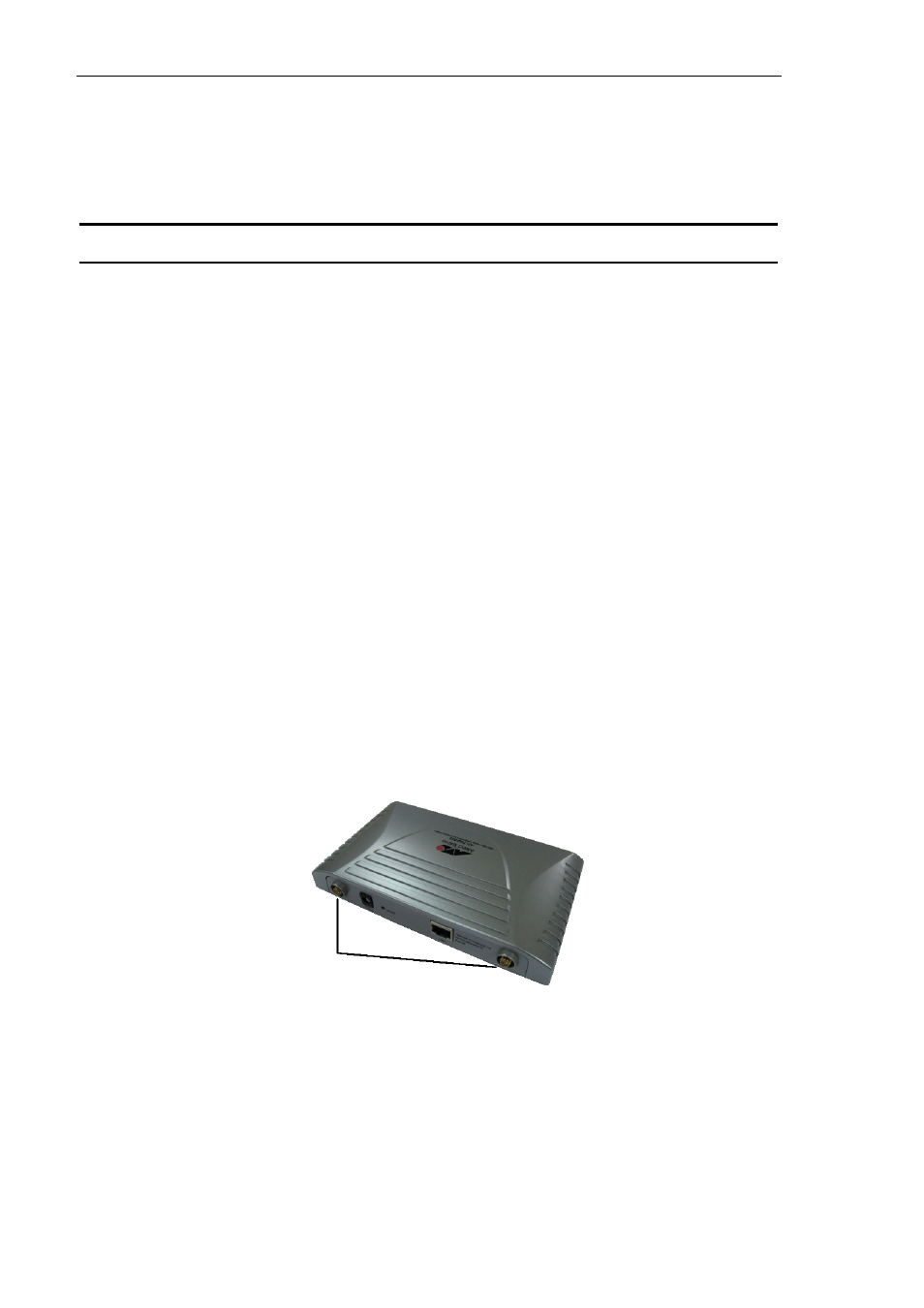

Figure 2: Location of the Antenna Connectors
3. Screw antennas to antenna connectors, as shown in Figure 3.
