AlliedView™-EMS 4.0.2 VLAN MANAGER USER’S GUIDE

Page 24 of 77

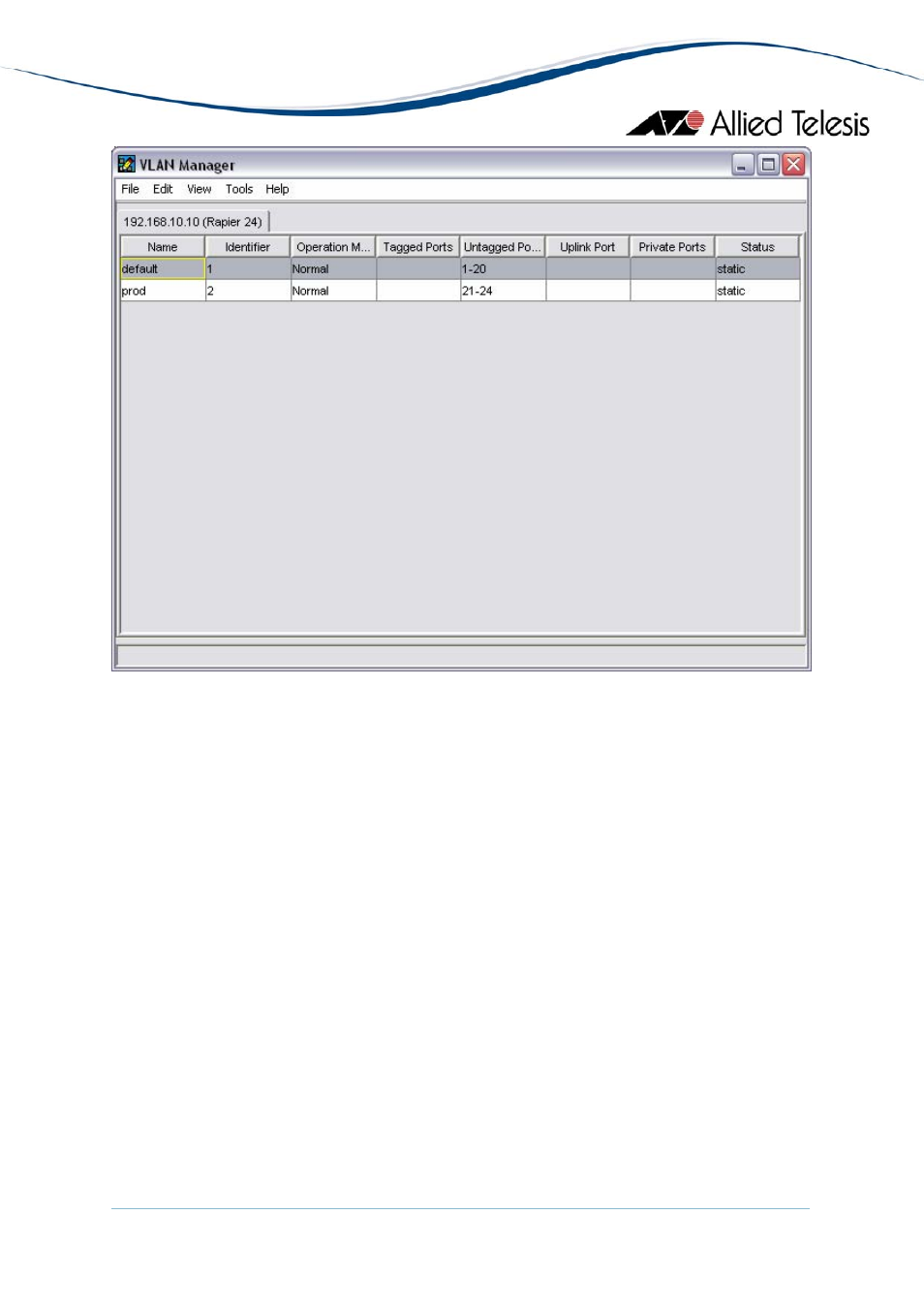

New VLAN definition added to VLAN Information Window

After clicking the OK button, the new Add VLAN dialog will be closed and the new VLAN

entry will be added to the Main window's Information Pane.

5.2.1.4 Cancel Button

The Cancel Button cancels the Add VLAN operation and closes the Add VLAN dialog box.

5.2.2 Modify VLAN

This option opens the Modify VLAN dialog box that allows you to change specific attributes
of a VLAN.

Note

- This option is only available if a VLAN definition is selected.

Refer to Section 4.1 - Selecting VLAN Definitions for details on how to select a VLAN

definition.
