AT-GS950/16 and AT-GS950/24 Gigabit Ethernet Smart Switches Installation Guide
33
4. Mount the switch in a standard 19-inch equipment rack using the four
large screws included. Figure 9 and Figure 10 show how to mount the
AT-GS950/16 Switch and AT-GS950/24 Switch, respectively.

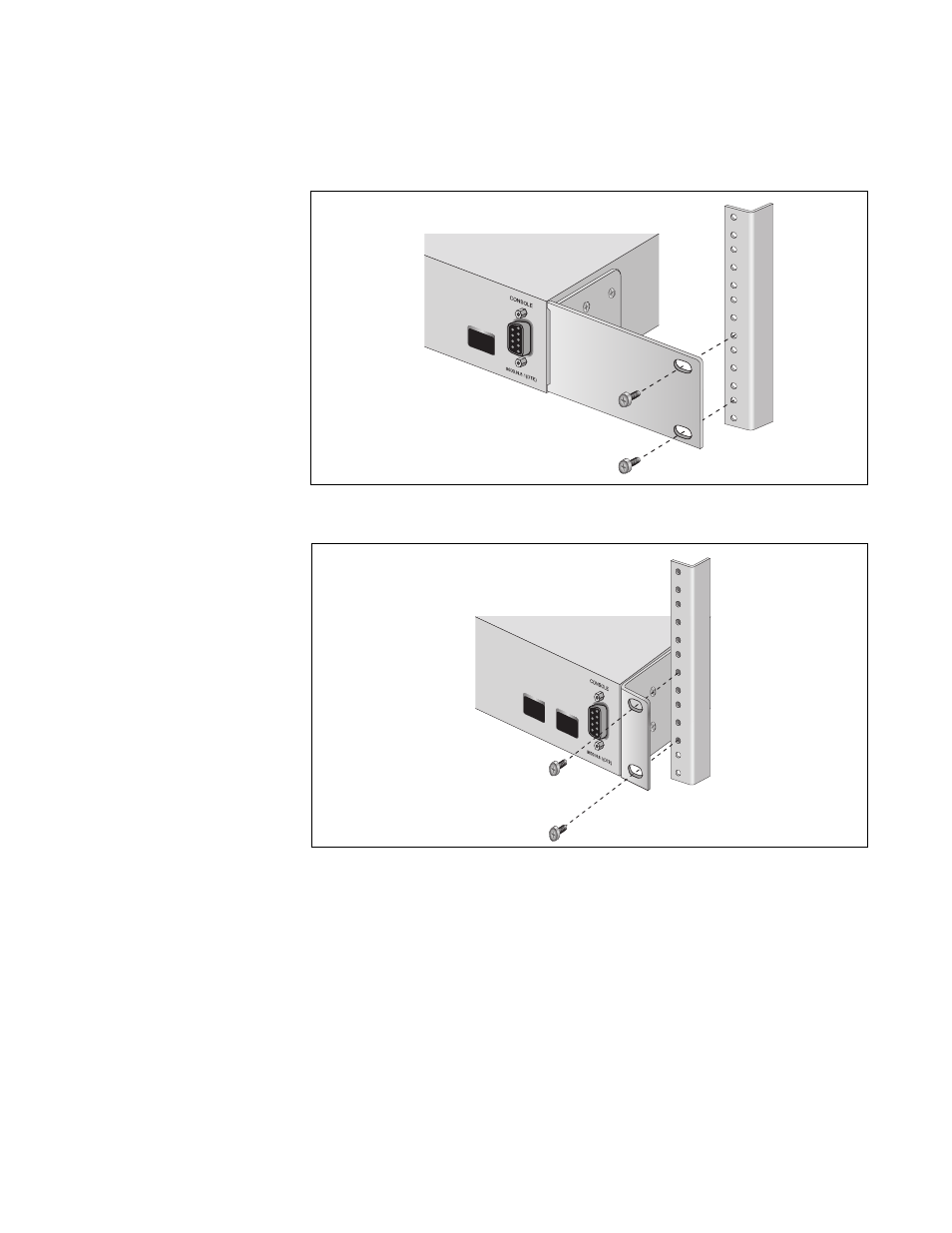

Figure 9. Mounting the AT-GS950/16 Switch in an Equipment Rack
Figure 10. Mounting the AT-GS950/24 Switch in an Equipment Rack
