Allied Telesis AT-2711 Series Adapters User Manual
Page 32
Installing the Hardware
32

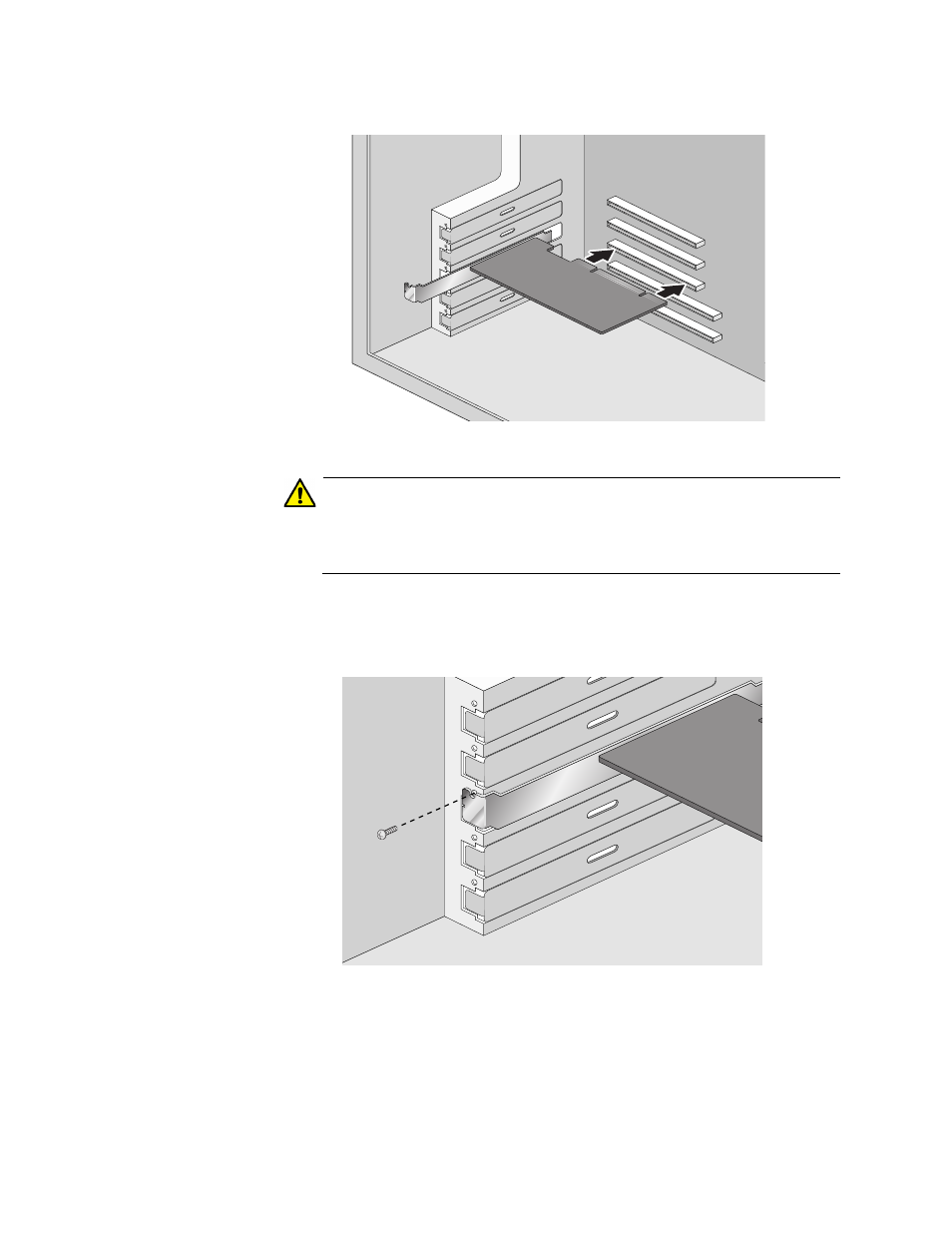

Figure 8. Inserting the Network Adapter Card
Caution
Do not use excessive force when seating the card, as this may
damage the system or the adapter card. If the card resists seating,
remove it from the system, realign it, and try again.
6. Secure the network adapter card to the chassis with a Phillips-head
screw (not provided) as shown in Figure 9.
Figure 9. Securing the Adapter Card
7. Replace the system’s cover and secure it with the screws removed in
8. Disconnect any personal antistatic devices.
