AT-2711 Series Fast Ethernet Adapter Installation Guide
105
RSS Queues
The RSS Queues feature allocates queue space between the adapter and
processor, and allows you to specify the number of RSS queues that the
adapter assigns receiving data to.
To Specify the RSS Queues value, do the following:
1. Access the Advanced Properties.
See “Accessing Advanced Properties” on page 76.
2. Select RSS Queues in the Property box.
The RSS Queues page is displayed as shown in Figure 58.

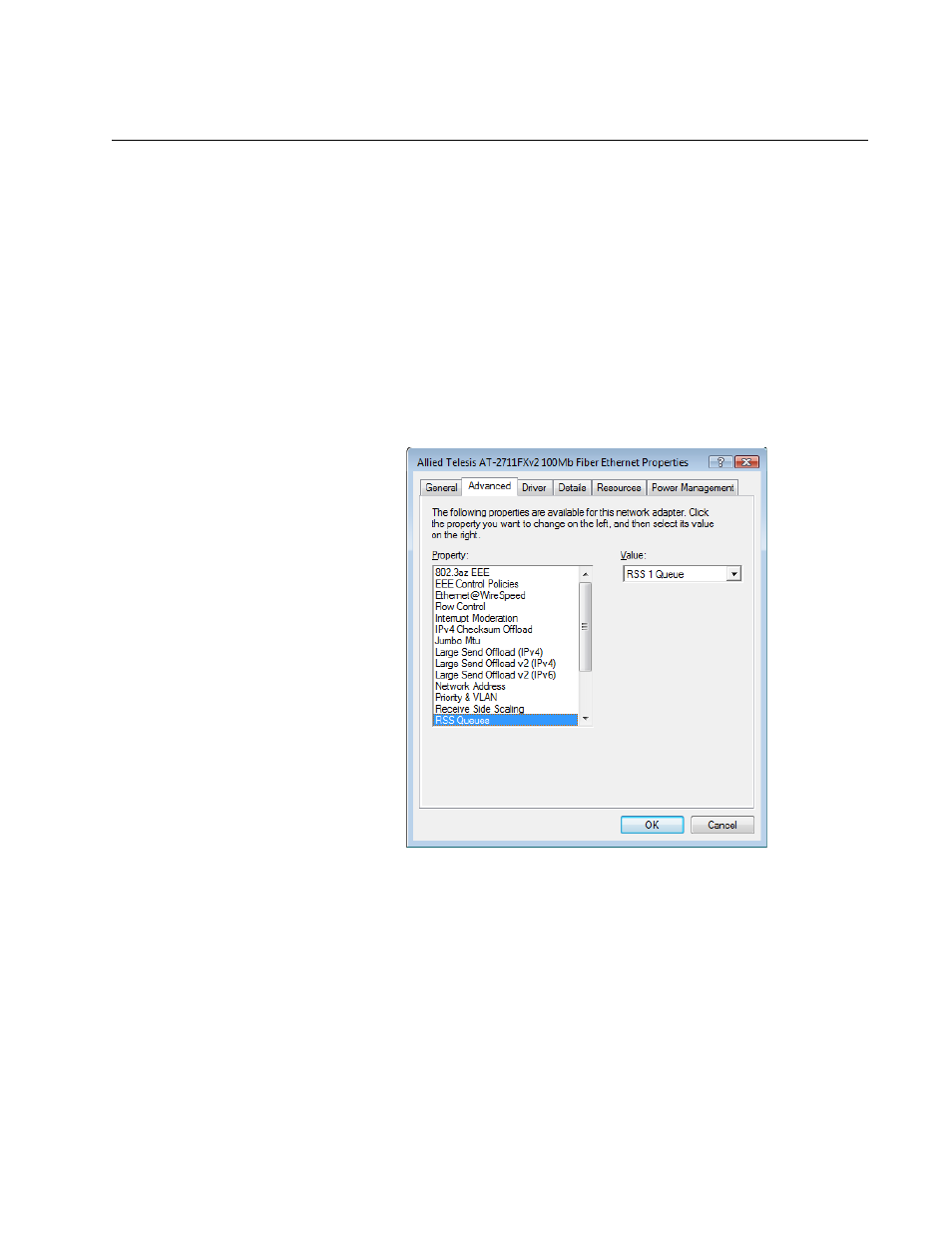

Figure 58. RSS Queues Page
3. Select one of the following options:
 RSS 1 Queue — The system allocates one RSS queue. This is the
default setting.
 RSS 2 Queues — The system allocates two RSS queues.
 RSS 4 Queues — The system allocates four RSS queues.
4. Click OK.
