Chapter 5: Configuring a VoIP Phone System
77
Configuring VLAN Tagging on Adapter Ports
To separate voice traffic coming from the VoIP phone from data traffic
from the PC, several combinations of VLAN tagging settings are possible.
VLAN Tagging
Combinations

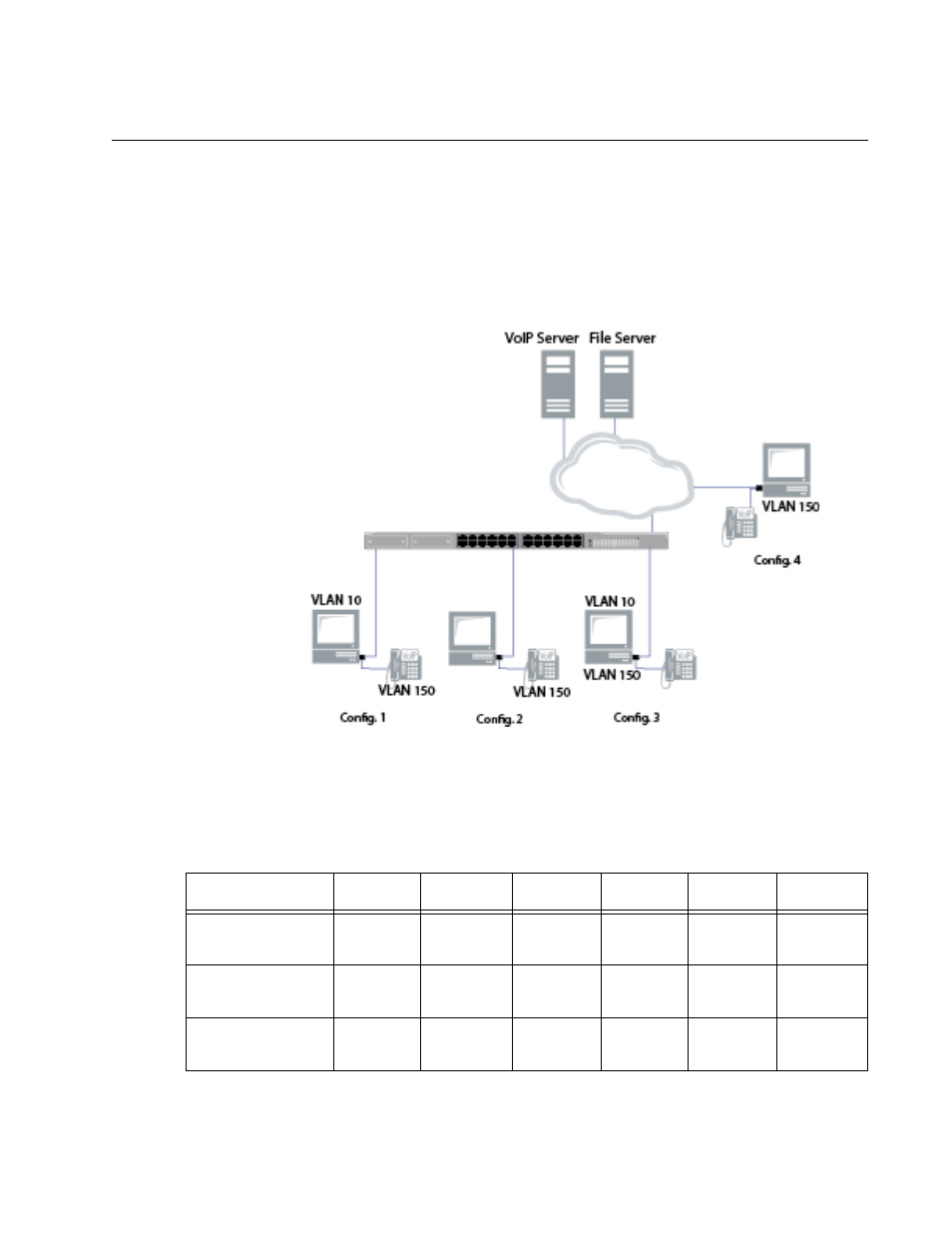

Figure 55 illustrates possible VLAN tagging combinations. In this example,
voice frames belong to the VLAN 150 and data frames belong to the VLAN
10.
.
Figure 55. VoIP Phone Tagging Example
Table 3 shows VLAN tagging combinations.
Table 3. VLAN Tagging Combinations
Config.1 Config. 2 Config. 3 Config. 4 Config. 5 Config. 6
VoIP Phone
(in Phone setting) VLAN tag
(VID: 150)
VLAN tag
(VID: 150)
- - - -
Copper Port - - VLAN tag
(VID: 150)
VLAN tag
(VID: 150)
- -
Fiber Port VLAN tag
(VID: 10)
- VLAN tag
(VID: 10)
- VLAN tag
(VID: 10)
-
