AT-2911GP Gigabit Fiber Ethernet PoE+ Adapters Installation and User’s Guide
118
RSS Queues
The RSS Queues feature allocates queue space between the adapter port
and processor, and allows you to specify the number of RSS queues that
the adapter assigns receiving data to.
To Specify the RSS Queues value, do the following:
1. Access the Advanced Properties.
See “Accessing Advanced Properties” on page 87.
2. Select RSS Queues in the Property box.
The RSS Queues page is displayed as shown in Figure 79.

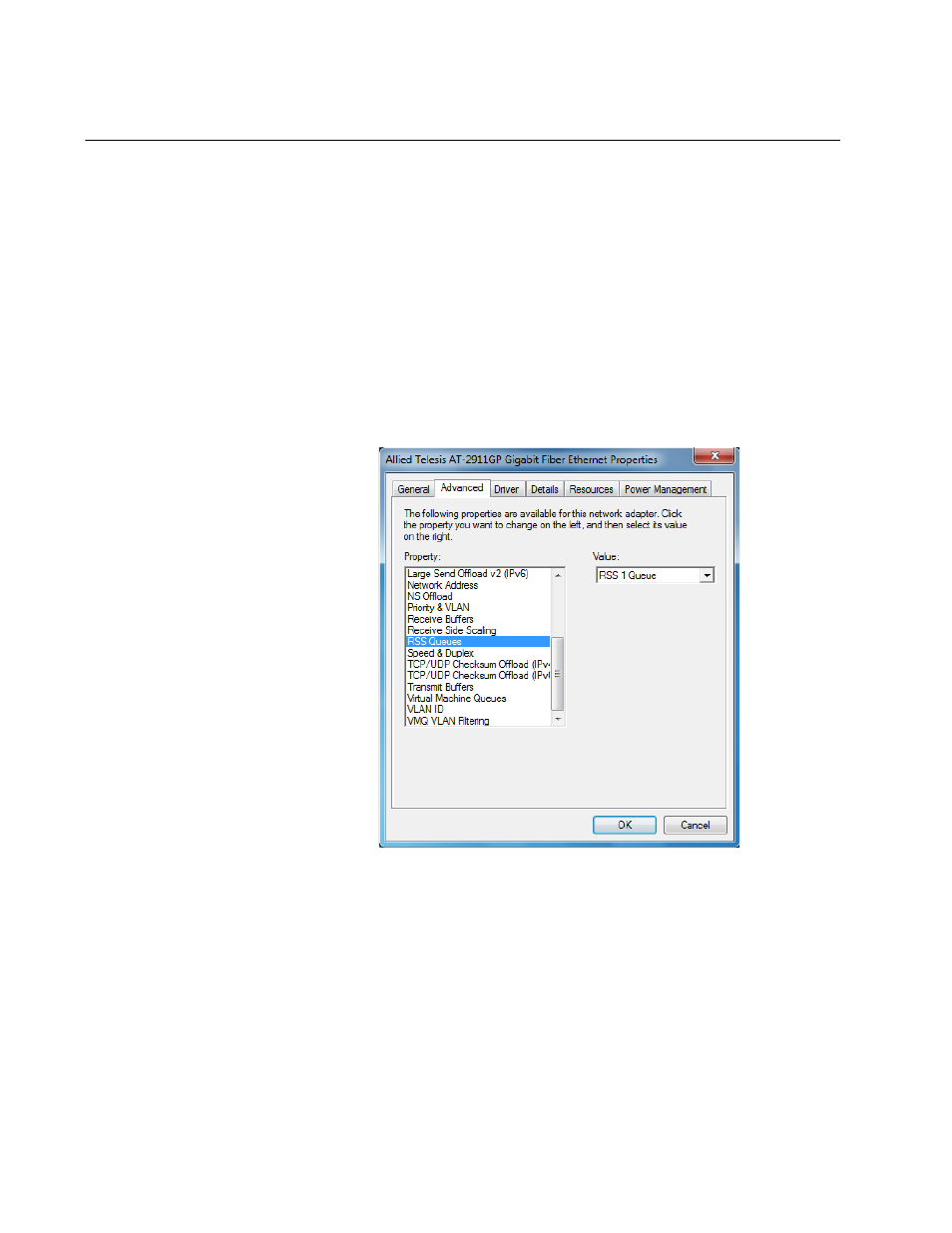

Figure 79. RSS Queues Page
3. Select one of the following options:
 RSS 1 Queue — The system allocates one RSS queue. This is the
default setting.
 RSS 2 Queues — The system allocates two RSS queues.
 RSS 4 Queues — The system allocates four RSS queues.
4. Click OK.
