Stack Installation Guide for AT-2552XS L2 Data Center Switch
63

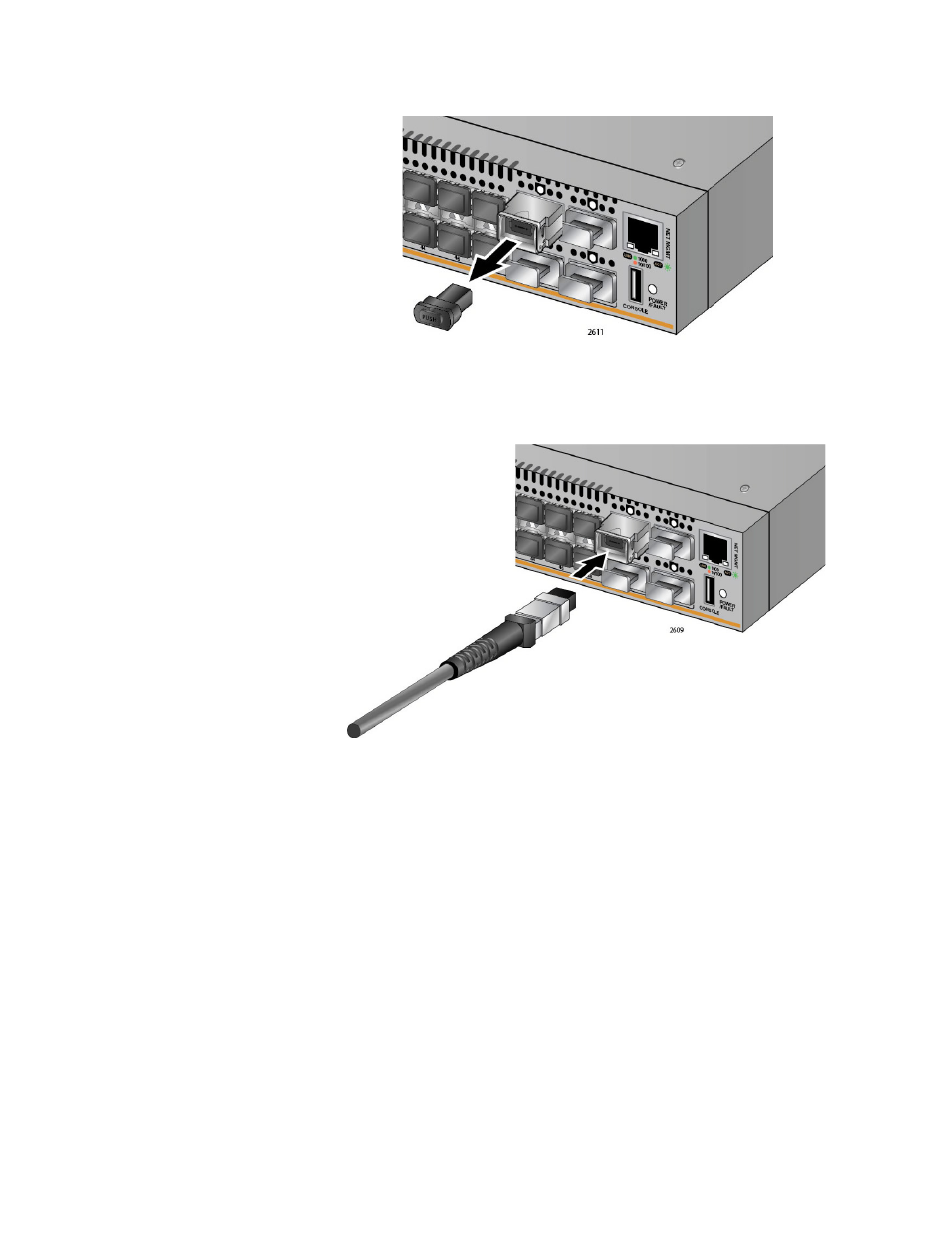

Figure 33. Removing QSFP+ Dust Cover
7. Insert the fiber optic cable to the port on the transceiver, as shown in
Figure 34, until it clicks in place.
Figure 34. Attaching a Fiber Optic Cable to an QSFP+ Transceiver
8. Repeat this procedure if you have other QSFP+ transceivers to install.
Installing a
QSFP+ MTHTP
Cable
Perform the following procedure to install a QSFP+ MTHTP cable:
1. Remove the QSFP+ MTHTP cable from its shipping container and
store the packaging material in a safe location.
2. Remove the dust cover from the chassis QSFP+ slot. See Figure 35
on page 64.
