Allied Telesis AT-DC2552XS User Manual
Page 58
Chapter 4: Installing the SFP+ and QSFP+ Transceivers and Cables
58

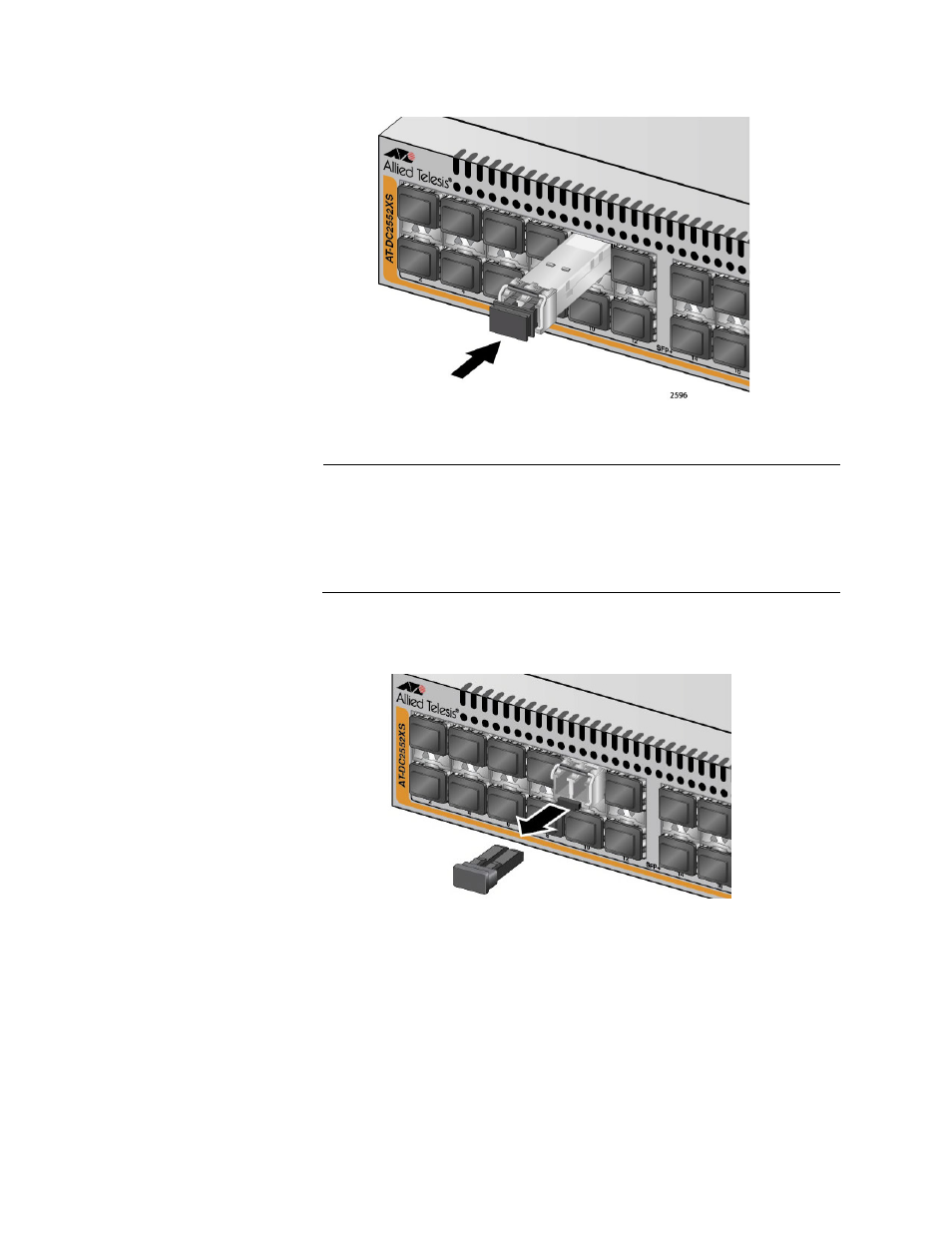

Figure 26. Installing a SFP+ Transceiver
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 5 to install
the remaining SFP+ transceivers in the chassis. Do not remove the
dust cover from the installed SFP+ transceiver(s) until you are ready
to install the fiber optic cable.
6. Remove the dust cover from the module. See Figure 27.
Figure 27. Removing SFP+ Dust Cover
