Hardware Description Wiring the Power Inputs
9 AT-IMC1000T/SFP Industrial Gigabit PoE+ Media Converter User Manual

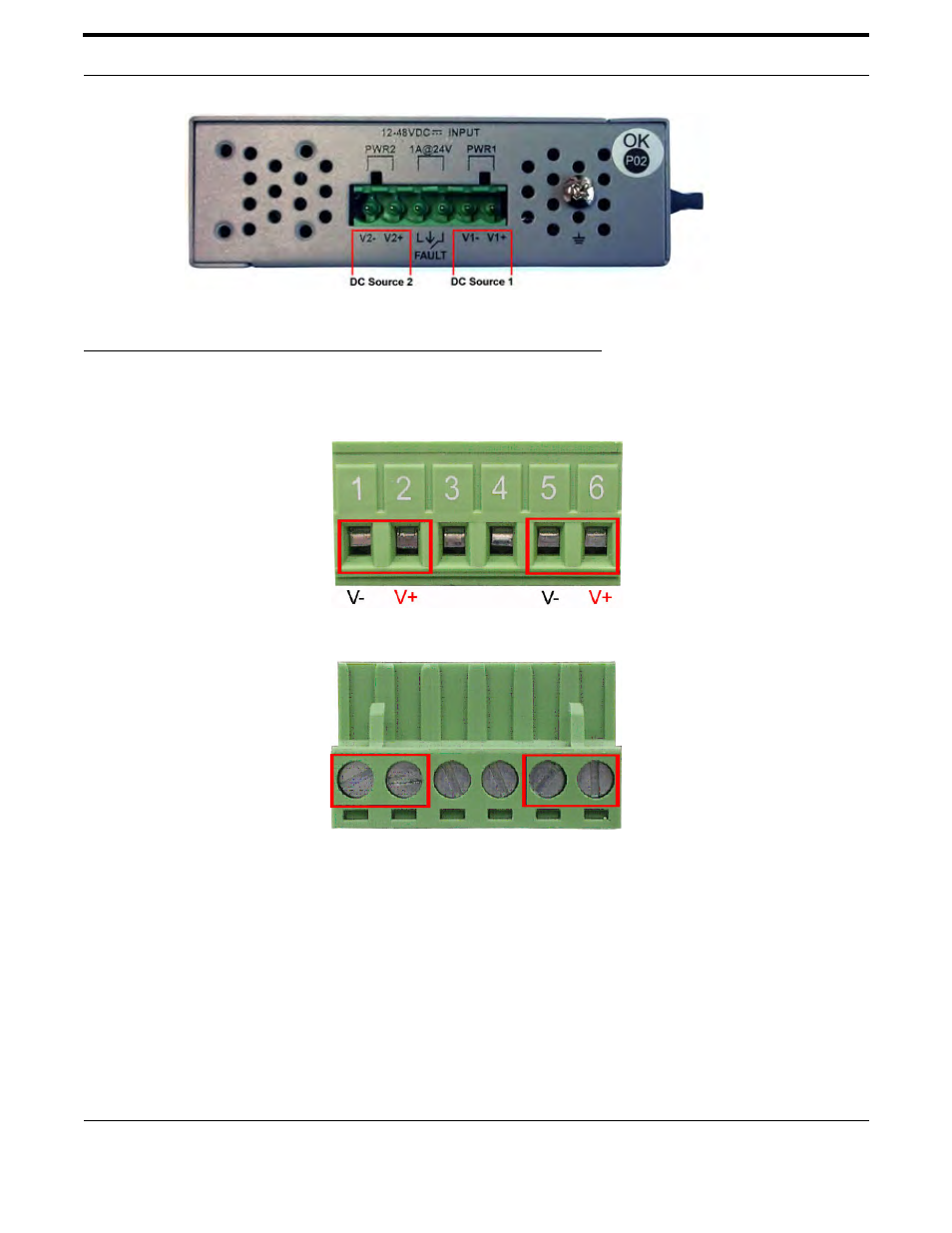

FIGURE 2-2 Top Panel of the Industrial Media Converter
2.3 Wiring the Power Inputs
Please follow the steps to connect the power wires.
FIGURE 2-3 V+ and V- Contacts
1. Insert the positive and negative wires into the V+ and V- contacts on the terminal block connector.
FIGURE 2-4 Wire-clamp Screws
2. Tighten the wire-clamp screws to prevent the wires from loosing.
