Mounting Installation

DIN-Rail Mounting

13

AT-IMC1000T/SFP Industrial Gigabit PoE+ Media Converter User Manual

3. Mounting Installation

3.1 DIN-Rail Mounting

The DIN-Rail clip is screwed on the AT-IMC1000T/SFP Industrial Media Converter when out of factory. If the DIN-
Rail clip is not installed on the back of the media converter, please see the following figure to screw the DIN-Rail on
the switch. Follow the below steps to hang the industrial switch.

1. Use the screws to screw on the DIN-rail clip on the industrial switch.

2. To remove the DIN-rail clip, reverse step 3.1.1.

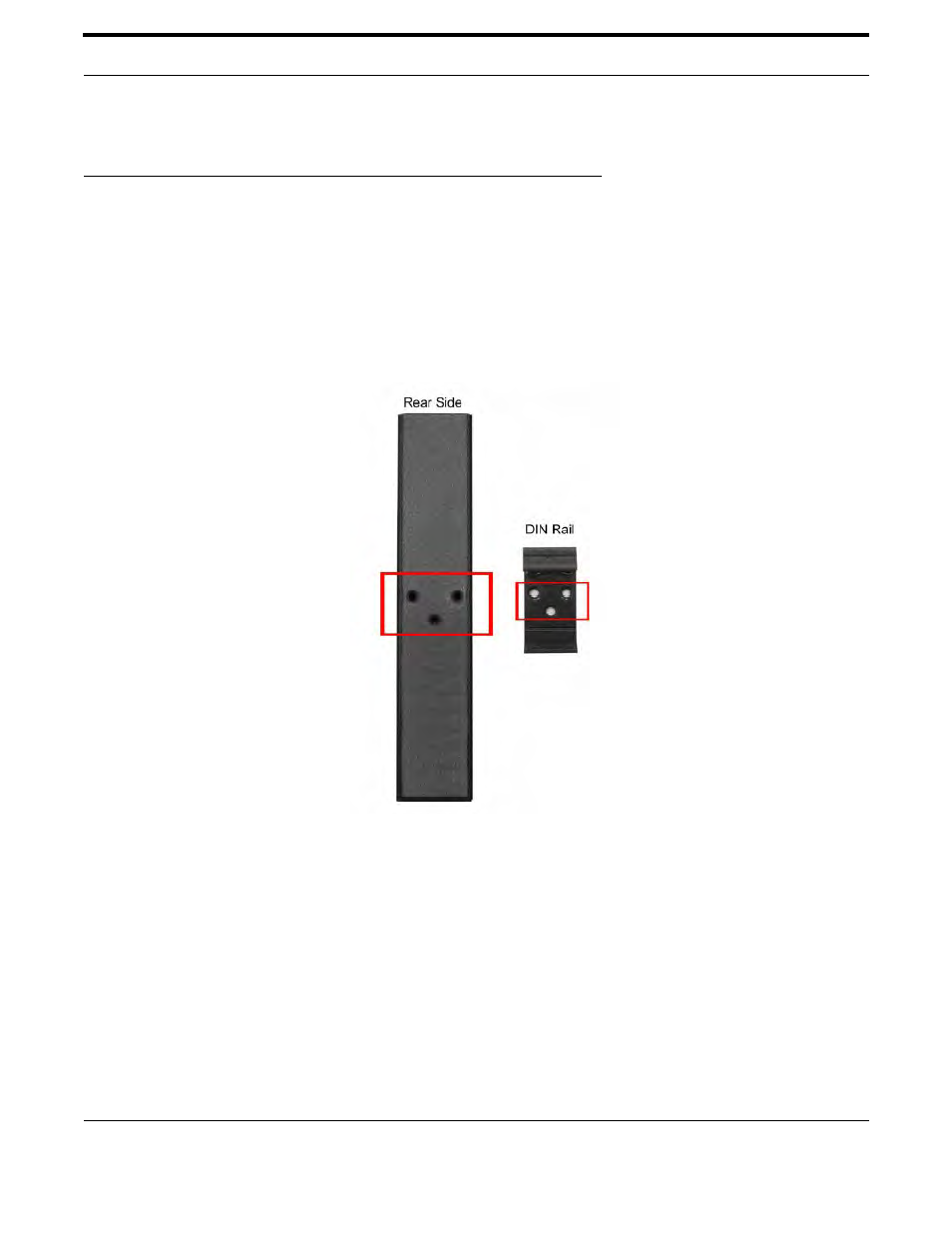

FIGURE 3-1 DIN-Rail Mounting

3. Align the top of the chassis DIN-Rail clip on the rear of the chassis with the top track of the DIN-Rail. See

Figure 3-1
