15 AT-IMC1000T/SFP Industrial Gigabit PoE+ Media Converter User Manual
5. Release the downward pressure on the chassis and allow the bottom slot of the chassis DIN-Rail clip to tightly
fix itself to the DIN-Rail.
6. To remove the AT-IMC1000T/SFP Industrial Media Converter, lightly press down on the chassis and pull the
bottom of the chassis away from the bottom DIN-Rail track. Then lift the chassis up off the upper DIN-Rail track.
3.2 Wall-Mount Plate Fixing
Follow the steps below to mount the AT-IMC1000T/SFP Industrial Media Converter with the wall mount plates
included.
Note: It isn't necessary to remove the DIN-Rail clip with the wall mount brackets installed 90 degrees from
what is shown.
1. Place the wall-mount plates on the rear panel of the media converter. See Figure 3-4 .
2. Use the screws to secure the wall-mount plates on the media converter.
3. Use the hook holes at the corners of the wall-mount plates to hang the industrial switch on the wall.
4. To remove the wall-mount plates, reverse the steps above.

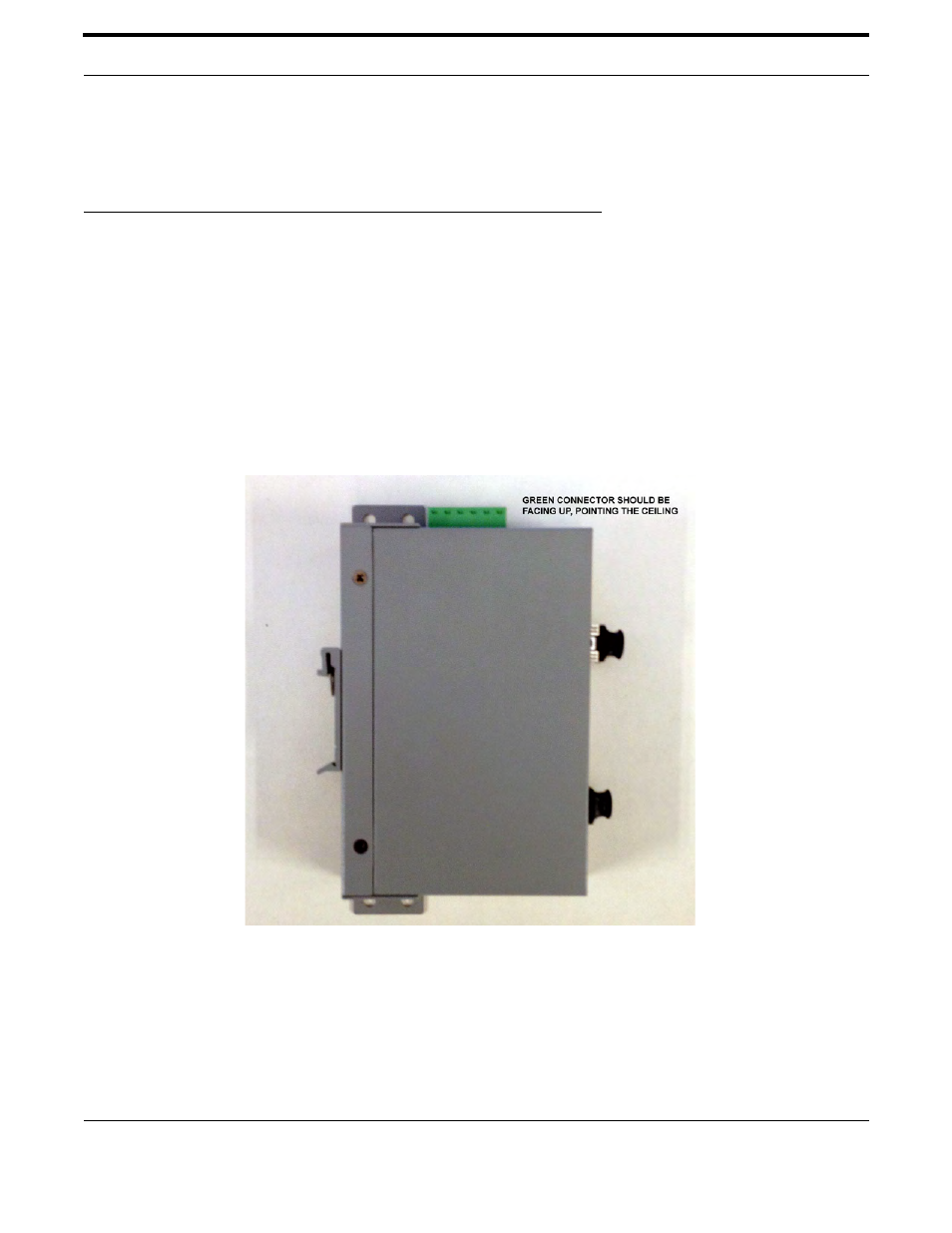

FIGURE 3-4 Wall-Mount Plate Fixing
